Apeks WTX-D Series Installation Instructions

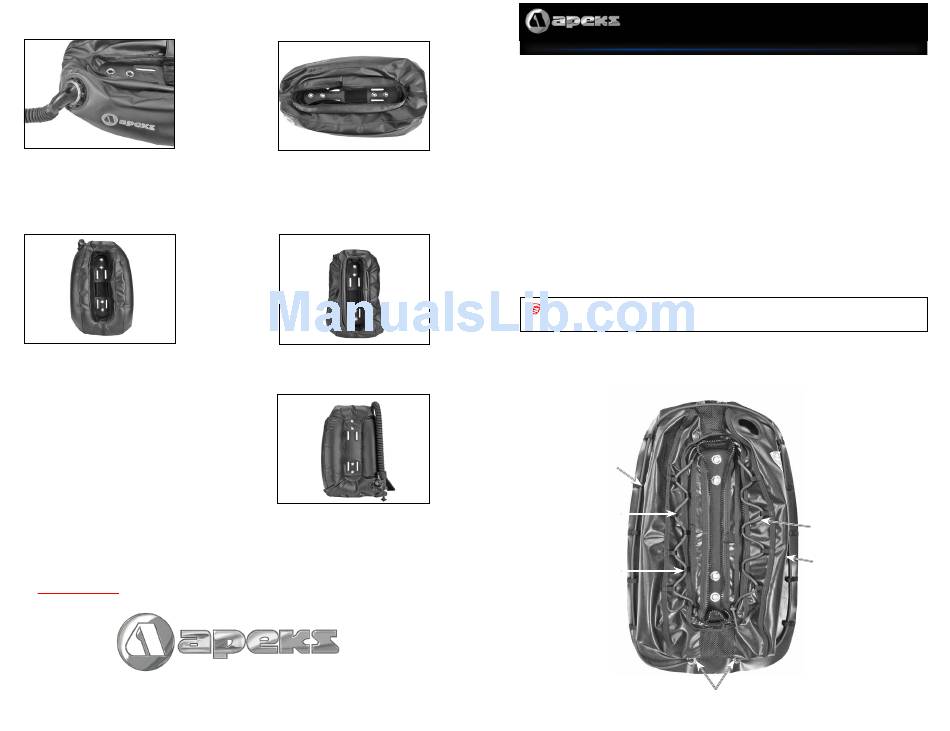

6. Attach the inflator to the buoyancy cell by screwing the collar at the base of the elbow
to the bladder connector (Fig. 13). Close the zipper on the outer bag (Fig. 14).
Fig. 13
7. Inflate and deflate the buoyancy cell several times to allow the retractors to work into place.
Ensure the proper tension of the retractor system has been achieved (Figs 15 & 16).
Fig. 15
8. Orally inflate the buoyancy cell to be sure the
retractors are not too tight (Fig. 17). You should
be able to inflate the buoyancy cell with little
effort. If you cannot orally inflate the buoyancy
cell, re-adjust the tension of the retractor system.
Once the buoyancy cell has been inflation tested
and the desired tension has been achieved, the
excess of the retractors can be trimmed below
the overhand knot.
Assembly of the WTX retractor kit to the WTX-D buoyancy cell is now complete.
If you have any questions regarding the information found in this manual,please contact your
regional Apeks Dealer or Distributor. Distributor information is available on the Apeks website
at: www.apeks.co.uk
©2014 Apeks
Fig. 14
Fig. 16
Fig. 17
Literature PN 18413 Rev. 1/14
WTX - D Retractor Kit
(PN 388300)
CONTENTS: Two 80 inch sections of retractor tubing.
The WTX retractor kit (PN 388300) is an optional retraction system that may be added
to the WTX-D30 and WTX-D40 to streamline the buoyancy cell while diving (use of this
retractor system is optional) (Fig. 1). The retractor system is secured through a series
of internal loops sewn into the outer bag. The outer retractor (80 in.) runs through the
outer loops, through the grommet holes on the rear of the outer bag, where they are tied
off and secured. The inner retractor (80 in.) zig-zags through the inner loops, where it
is tied off and secured on both sides. The following instructions will guide you through
the optimal method of securing the internal retractor system for maximum effect. Please
note other methods of configuring the internal retractor system may be done according
to preference.
NOTE: WTX-D18 buoyancy cell cannot accommodate the retractor kit as there are no sewn in
loops attached to the outer bag.
Installation Instructions for Retractor Kit to WTX- D Buoyancy Cell
Outer Loops
Inner Loops
(Upper)
Inner Loops
(Lower)
Grommet Holes
Inner Retractor
Outer Retractor
Fig. 1
