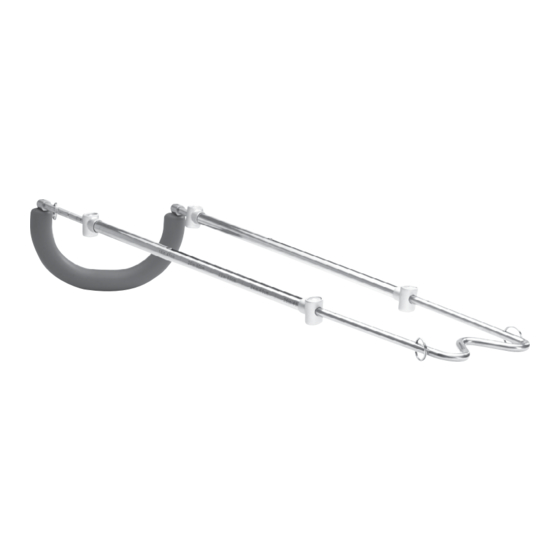

Ossur THOMAS SPLINT Instructions For Use

THOMAS SPLINT CLEANING INSTRUCTIONS
Cleaning can be achieved by either manual or automated methods - manual cleaning should only be undertaken
when automated methods are inappropriate or unavailable. Automated cleaning is a controlled process that will
allow more consistent results. Where available the use of mechanical cleaners such as washer-disinfectors and
ultrasonic tanks is preferred to the manual cleaning of items. The cleaning method should be assessed to ensure
the effectiveness of the cleaning process without damage to equipment.
Medical Devices Agency guidelines on the method of decontamination taking into account infection risk from the
reprocessed device to the patient
Risk Application of an item
High In close contact with a break in the skin or mucous membrane. Introduced into
sterile body areas.
Medium In contact with mucous membranes. Contaminated with particularly virulent or
readily transmissable organisms prior to use on immunocompromised patients.
Low In contact with healthy skin. Not in contact with patient.
CLEANING GUIDELINES
Please refer to guidelines below for washing instructions.
Thomas Splint Component Recommended cleaning method
Thomas Splint side members Cleaning & Steam Sterilisation
Thomas Splint Thigh Hoops Thermal Washer Disinfector
Thomas Splint Diposable Slings and Hoop Covers Single Patient Use 400 wash
MECHANICAL CLEANING -THERMAL WASHER DISINFECTORS (REPEATED EXPOSURE TO WET HEAT)
Initial Clean - at or below 35°C. Followed by a hot water disinfection rinse where the surface temperature of the
item processed should reach a minimum temperature of 71°C for a minimum of 3 minutes, 80°C for 1 minute or
90°C for 1 second (HC(91)33 and BS 2745)
MANUAL CLEANING - NON IMMERSION
A warm water/detergent solution at correct dilution
A clean, disposable, absorbent, non-shedding cloth or mechanical drying facility (e.g. drying cabinet or industrial
hot air dryer)
A chemical neutraliser, first aid kit and eye wash bottle, in case of splashing with detergent.
STEAM STERILISATION
Direct contact between the material being sterilised and Sterilisation Temperature (°C)
pure dry saturated steam at the required temperature in
Max Allowance Temperature (°C)
the absence of air. The recommended combinations of
Minimum Holding Time (minutes)
time and temperature are given in HTM 2010, Part 3:
Frame Measurements for Steam Sterilisation
(with side members fully retracted)
Adult
Paediatric
NOTE: The Thomas Splint System is designed for long
term use, however regular inspection of adjustment areas
and frame body is advised. Please replace if necessary.
THOMAS SPLINT SLINGS
All Thomas Splint slings are single patient use and must be discarded
at the end of the treatment.
Össur Americas
27051 Towne Centre Drive
Foothill Ranch, CA 92610, USA
Tel: +1 (949) 382 3883
Tel: +1 800 233 6263
Fax: +1 800 831 3160
ossurusa@ossur.com
Össur Canada
2150 – 6900 Graybar Road
Recommendation
Richmond, BC
Cleaning and Sterilisation
V6W OA5 , Canada
Tel: +1 604 241 8152
Fax: +1 866 441 3880
Sterilisation or disinfection required. Cleaning
may be acceptable in some agreed situations
Össur Europe BV
Cleaning (physically) removes infectious De Schakel 70
agents without necessarily destroying them. 5651 GH Eindhoven
The Netherlands
Tel: +800 3539 3668
Tel: +31 499 462840
Fax: +31 499 462841
info-europe@ossur.com
Össur Deutschland GmbH
Augustinusstrasse 11A
50226 Frechen
Deutschland
Tel: +49 (0) 2234 6039 102
Fax. +49 (0) 2234 6039 101
info-deutschland@ossur.com
115 121 126 134
118 124 129 137
30 15 10 3
Length Width
80 21 cm
56 19cm
Össur hf.
Grjótháls 1-5
110 Reykjavík
40C
Iceland
Wash 40°C Do Not Blech Dry Flat, Do Not Wring
FOR SINGLE
PATIENT USE
Do Not Iron Single Patient Use Only
WWW.OSSUR.COM
Össur Nordic Össur Europe BV – Italy
P.O. Box 67 Via Baroaldi, 29
751 03 Uppsala, Sweden 40054 Budrio, Italy
Tel: +46 1818 2200 Tel: +39 05169 20852
Fax: +46 1818 2218 Fax: +39 05169 22977
info@ossur.com orders.italy@ossur.com
Össur Iberia S.L.U Össur APAC
Calle Caléndula, 93 - 2F, W16 B
Miniparc III No. 1801 Hongmei Road
Edificio E, Despacho M18 200233, Shanghai, China
28109 El Soto de la Moraleja, Tel: +86 21 6127 1707
Alcobendas Fax: +86 21 6127 1799
Madrid – España asia@ossur.com
Tel: 00 800 3539 3668
Fax: 00 800 3539 3299 Össur Australia
orders.spain@ossur.com 26 Ross Street,
orders.portugal@ossur.com North Parramatta
NSW 2151 Australia
Össur UK Ltd Tel: +61 2 88382800
Unit No 1 Fax: +61 2 96305310
S:Park infosydney@ossur.com
Hamilton Road
Stockport SK1 2AE, UK
Tel: +44 (0) 8450 065 065
Fax: +44 (0)161 475 6321
ossuruk@ossur.com
©Copyright Össur 2017 IFU 1322_001 Rev. 1
Instructions for Use
THOMAS SPLINT
