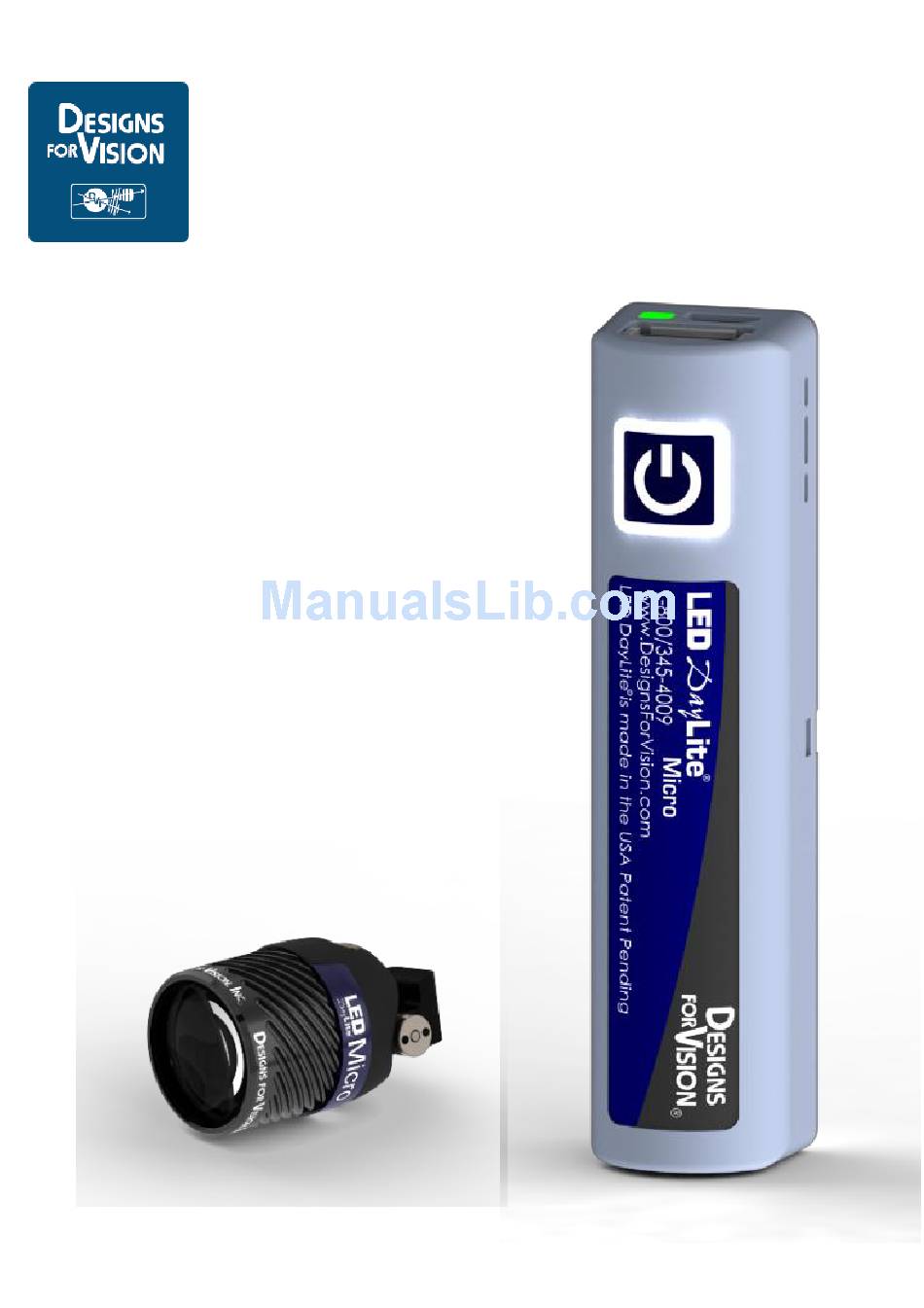

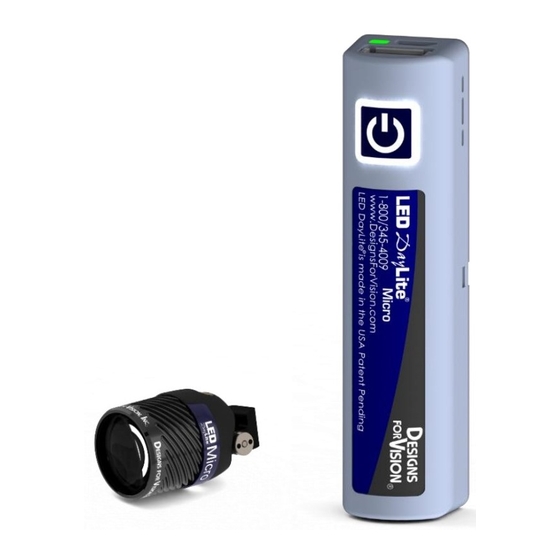

- Page 1 ® LED DayLite Micro User Guide Ver. 10.17...
-
Page 2: Table Of Contents
ONTENTS Indications for Use ............4 Device Description ............4 Device Diagrams ............5 Directions for Use ............7 Charging the Battery ..........6 Using the Headlight ........... 9 Understanding the Status Indicator ......10 Holster Operation ............ 12 Inspection and Preventative Maintenance ....13 Important Safety Instructions........ -
Page 3: Indications For Use
NDICATIONS FOR The Designs for Vision ® LED DayLite ® Micro is a lightweight, frame-mounted headlight that is designed for general illumination in laboratory settings. EVICE ESCRIPTION The Designs for Vision® LED DayLite® Micro provides bright, portable light to the laboratory environment. The headlight is designed to clip onto a wide variety of frames. -
Page 4: Device Diagrams
Always examine the unit and accessories for damage before commencing use. Damaged accessories must not be used and must be replaced. Use original Designs for Vision, Inc. parts and accessories only. The use of unapproved parts may void the warranty. - Page 5 TATUS NDICATOR HARGER HDi™ M ICRO EADLIGHT EADLIGHT UV/ B OWER IGHT ILTER IGHT NTENSITY UTTON OWER HARGER USB P OWER UPPLY ® LED D ICRO UIDE...
-
Page 6: Directions For Use
IRECTIONS FOR HARGING THE ATTERY Remove the components from the shipping container, checking that all parts on the packing list have been received. Carefully remove the NOTE: The batteries headlight, power packs, USB need to receive a full charge before power supply and USB power initial operation cord from the packaging carton. - Page 7 optimal charge times. Plug the large end of the USB power cord into the charger port of the USB power supply (Fig. 2). Connect to an available AC outlet. NOTE: International adapters available through Designs HARGER TATUS NDICATOR Vision; refer to the list on page 16.
-
Page 8: Using The Headlight
display the current state of charge. The LED will change colors as the battery charges; going from ORANGE GREEN. When the power button light remains steady, the unit is fully charged. You can now disconnect the power cord from the power pack. SING THE EADLIGHT Place the HDi™... - Page 9 tighten the shaft. To unlock the position, loosen the shaft by turning counter-clockwise. NOTE: The shaft will only turn a limited distance. Do not force in either direction. Press the power button on the front of your battery pack. The headlight will turn on at high intensity. The power button will illuminate and the status indicator will display the current state of charge.
-
Page 10: Understanding The Status Indicator
A UV/blue light filter is provided to prevent premature curing of dental composites (comes pre-installed). To use, slide the filter over the front of the headlight until completely seated (Fig. 6). Using the supplied tool, tighten the set screw on the bottom of the filter to properly secure to the headlight. - Page 11 Vision Inc. for ordering a replacement. REMARQUE: Une batterie usagée ne doit pas etre utilisée. Contacter Designs for Vision Inc. pour le remplacement. NOTE: Discard batteries in accordance with all regulations and contact Designs for Vision, Inc. for a replacement. ® LED D ICRO...
-
Page 12: Holster Operation
REMARQUE: Mettre au rebut les batteries usagées conformément aux lois et réglementations en vigueur contacter Designs pour Vision, Inc. pour un remplacement. OLSTER PERATION The LED DayLite® Micro is supplied with a holster to allow you to swivel the power pack on your belt. Simply snap the holster onto the back of the power pack in the orientation shown (Fig. -
Page 13: Inspection And Preventative Maintenance
NSPECTION AND REVENTATIVE AINTENANCE Clean lenses with a standard glass cleaner and a soft, lint-free cloth, making sure not to scratch the surface. It is recommended for disinfection that all the exposed plastic sections of the headlight be wiped with Lysol IC surface disinfectant/cleaner or an equivalent plastic- safe cleaner. -
Page 14: Important Safety Instructions
Accessoires endommagés ne doivent pas être utilizes et doivent être remplacées. Utiliser uniquement Designs for Vision, Inc. originaux pièces et accessoires. L'utilisation de pièces non approuvées peut annuler la garantie. ®... - Page 15 NOTE: To reduce the risk of battery explosion, follow these instructions and those marked on the battery REMARQUE: Afin de réduire le risque d’explosion de la batterie, suivez ces instructions et celles indiquées sur la batterie. NOTE: Study all battery manufacturer’s specific precautions such as removing or not removing cell caps while charging and recommended rates of charge.
-
Page 16: Plug Adapter Kit
à toutes les réglementations nationales et locales. NOTE: If the equipment is used in a manner not specified by Designs for Vision, Inc., the protection provided by the equipment may be impaired. REMARQUE: Si la méthode d'utilisation de l'équipement diffère de celle décrite par Designs for Vision, Inc., la... -
Page 17: Specifications
PECIFICATIONS POWER REQUIREMENTS Battery Power : Designs for Vision, Inc.® 3.7VDC, 3400mAh LED DayLite® Micro 18650 Li-Ion Battery Model Number: DVI-LEDMC For Charging : Input : 100-240VAC, 50/60 Hz, 1.0A Output : 5.0VDC, 1.0A max ILLUMINATION 60,000 lux 7% High At 12”... -
Page 18: Warranty
ESCRIPTION OF ARIOUS YMBOLS ATTENTION: CONSULT ACCOMPANYING DOCUMENTS CAUTION: HOT SURFACE INDICATES CONFORMITY WITH MDD 93/42/EEC ANNEX VII INDICATES WHERE THE UNIT CAN BE TURNED ON AND OFF ARRANTY HDi™ Micro headlight warranted against imperfections, defects in materials, and workmanship for four years. - Page 19 NOTES: ® LED D ICRO UIDE...
- Page 20 Toll Free 800/345-4009 Fax 631/585-3404 Web Site: www.DesignsForVision.com P/N: 0075-1185-0095 E-mail: info@dvimail.com 4000 Veterans Memorial Hwy Bohemia, NY 11716...
