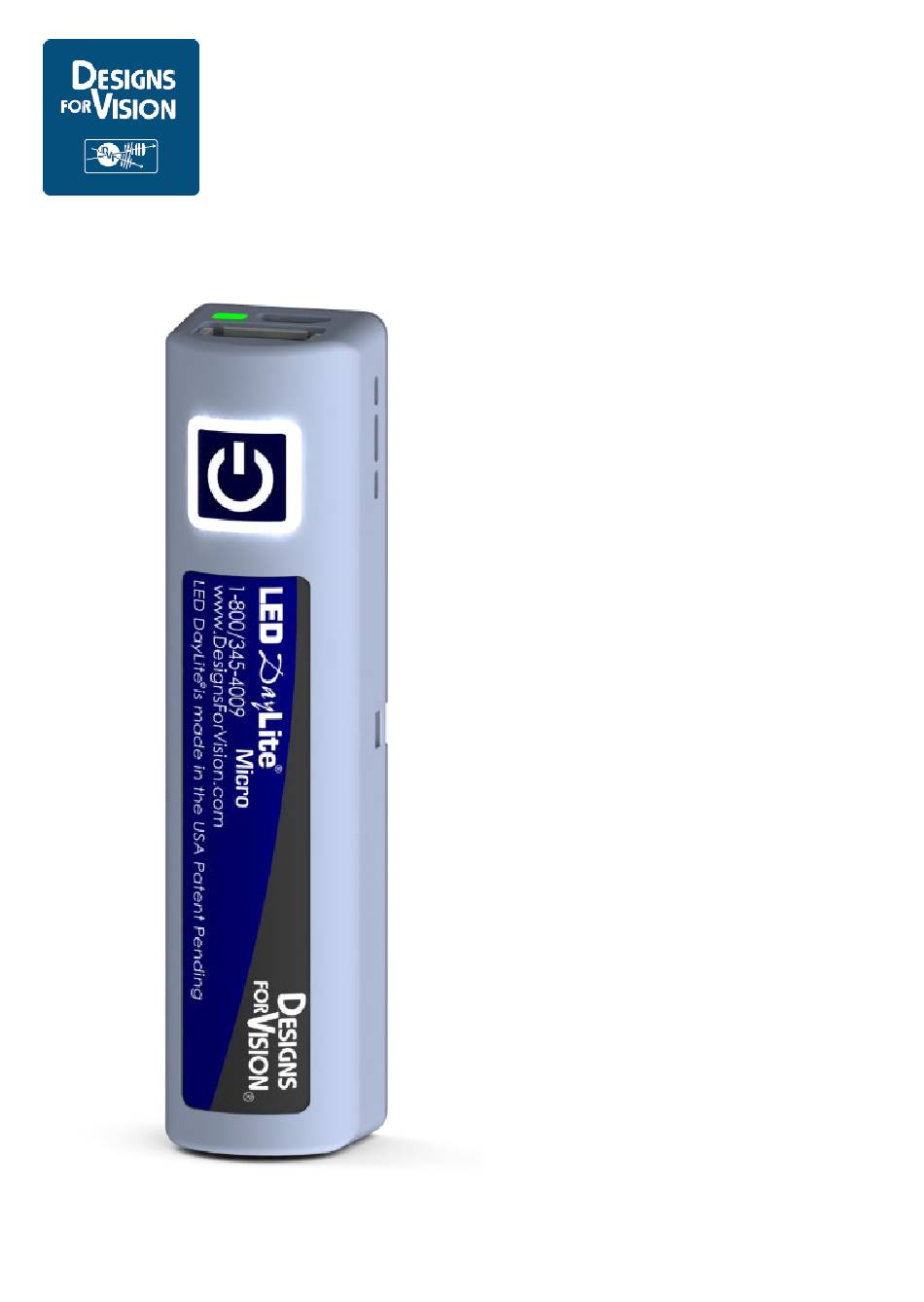

  • Page 1 ® LED DayLite ® Micro UIDE Model: DVI-LEDMC Ver. 6.23 (En)
  • Page 2 ATE OF SSUE 5-16-2019 LED D ® ™ ICRO UIDE...
  • Page 3 NDICATIONS FOR The Designs for Vision LED DayLite® Micro is an illumination device used to aid in visualization for dental professionals. It is intended to illuminate various tissues and/or body parts.
  • Page 4 Always examine the unit and accessories for damage before commencing use. Damaged accessories must not be used and must be replaced. Use original Designs for Vision, Inc. parts and accessories only. The use of unapproved parts may void the warranty.
  • Page 5 Do not let liquids enter openings or ports. Do not immerse parts in solutions. Allowing liquids to enter openings or ports may void warranty. Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or in an oxygen rich environment Care must be taken when operating this equipment around other equipment to avoid reciprocal...
  • Page 6 Never make changes or modifications to the power pack Do not short circuit Do not expose to fire Protect battery from fluids and damp environments It is highly recommended that batteries are charged with the supplied power supply Waste of electrical and electronic equipment must not be disposed as unsorted municipal waste.

  • Page 7: Ontents Specifications

    PECIFICATIONS LED DayLite Micro Model Number: DVI-LEDMC ® POWER REQUIREMENTS Battery Power : 3.7VDC, 3.5Ah 18650 Li-Ion For Charging : USB 5V Power Supply Input : 100-240VAC, 50/60 Hz, .35A Output : 5.0VDC, 2.0A max ILLUMINATION Measured with a cosine corrected light meter at 12” High 55,000 lux ±...
  • Page 8 TRANSPORT & STORAGE TEMPERATURE: C to 70 RELATIVE HUMIDITY: 10% to 100% including condensation ATMOSPHERIC PRESSURE: 500 to 1060 hPa APPROVALS UL 61010-1: 2012, CAN/CSA C22.2#61010-1: 2012, IEC 61010-1:2010, IEC 60601-1-2:4th Class B, IEC 62133 EQUIPMENT CLASS: Class II INGRESS OF WATER: IPX0 (ordinary equipment) Continuous MODE OF OPERATION...

  • Page 9: Table Of Contents

    ONTENTS Specifications ..............7 Device Description ............10 Directions for Use ............11 Charging the Battery ............11 Using the Headlight ............13 Using the UltraMini ® IR HDi ™ Headlight ......16 Using the Intuitive Response UltraMini HDI ....17 ™...

  • Page 10: Device Description

    EVICE ESCRIPTION The UltraMini® and UltraMini® IR generate a 2.75” spot of light at a 12-inch working distance with up to 55,000 lux. The UltraMini® HDi ™ and UltraMini® IR HDi generate a 3” spot of light at a 12-inch ™...

  • Page 11: Directions For Use

    IRECTIONS FOR HARGING THE ATTERY Remove the components from the shipping container, checking that all parts on the packing list have been received. Carefully remove the headlight, power packs, USB power NOTE: The supply and USB power cord from the batteries need to packaging carton.
  • Page 12 Connect to an available AC outlet. NOTE: International adapters are available through Designs for Vision; refer to the list on page Plug small end of HARGER TATUS NDICATOR power cord into the charger port on the power pack (Fig. 3). NOTE: The connectors only fit in one direction.

  • Page 13: Using The Headlight

    SING THE EADLIGHT Place the headlight onto the t-mount bracket for your frame. Connect the small end of the headlight cable to the headlight. Connect the large end of the headlight cable to the headlight port on the top of the power pack. The headlight can be adjusted up and down to align with your point of view.
  • Page 14 NOTE: Before inserting or removing any headlight cable from the power pack make sure the power pack is OFF The power pack MUST BE OFF before plugging in the headlight cable into the headlight (Fig. 6). The micro USB connector can only be plugged in one way.
  • Page 15 The LED DayLite® Micro also incorporates a Low Battery Warning system. With approximately ten (10) minutes of battery power remaining, the headlight will flash three times. At five (5) minutes remaining, the headlight will flash another three times. At 30 (thirty) seconds remaining, the headlight will flash continually until the battery is completely depleted.

  • Page 16: Using The Ultramini ® Ir Hdi ™ Headlight

    IR HD ® ™ SING THE LTRA EADLIGHT The UltraMini IR HDi incorporates an infrared (IR) sensor to allow ® ™ for activation/deactivation of the headlight using only simple hand gestures. Located on the top of the headlight is the built-in sensor (Fig.

  • Page 17: Using The Intuitive Response Ultramini Hdi

    ™ SING THE LTRA NTUITIVE ESPONSE Your new Designs for Vision LED DayLite ® UltraMini IR™ headlight employs Infrared sensing technology along with on-board biometrics to provide a reliable user interface. When your LED headlight is first turned on, it will remain on for a period of approximately five (5) seconds.
  • Page 18 headlight will be on. If you look up from your working position the LED headlight should turn off automatically. Changing your working position: The working position of the headlight can be changed at any time. To do this, rotate your headlight or change your body position that best fits your working style.

  • Page 19: Understanding The Status Indicator

    ESIGNS FOR ISION FOR FURTHER ASSISTANCE NOTE: A spent battery should not be used. Contact Designs for Vision Inc. for ordering a replacement. NOTE: Discard batteries in accordance with all regulations and contact Designs for Vision, Inc. for a replacement.

  • Page 20: Inspection And Preventative Maintenance

    the back of the power pack in the orientation shown (Fig. 11). The holster should hold firmly to the power pack. To release, pull back . 11 on one of the tabs and lift out power pack. Slide the back of the holster into the opening on the belt clip.

  • Page 21: Replacement Parts

    solutions Wipe the sections rather than spraying onto plastic parts. • Note: Do not let liquids enter openings or ports. Do not immerse parts in solutions. Using solutions other than recommended may void warranty. Allowing liquids to enter openings or ports may void warranty. Wipe cables with plastic-safe cleaners, if necessary.

  • Page 22: Description Of Various Symbols

    Australian Adapter 4911-0001-0016 UK Adapter 4911-0001-0016 UK Grounded Adapter 4911-0001-0016 ESCRIPTION OF ARIOUS YMBOLS ATTENTION: CONSULT ACCOMPANYING DOCUMENTS CAUTION: HOT SURFACE INDICATES CONFORMITY WITH MDD 93/42/EEC ANNEX VII INDICATES WHERE THE UNIT CAN BE TURNED ON AND OFF READ ACCOMPANYING DOCUMENTS LED D ®...

  • Page 23: Warranty

    ARRANTY The UltraMini , UltraMini , UltraMini IR and UltraMini ® ® ™ ® ® are warranted against imperfections, defects in materials, and ™ workmanship for four years. The power supply and cables are warranted for one year. The power pack is warranted for two years. Any damage caused by improper maintenance as described in the manual may not be covered by the warranty.
  • Page 24 SEE WHAT’S RIGHT ABOUT MADE IN AMERICA ® ECHNICAL SUPPORT USTOMER ERVICE 1.800.345.4009 Outside the US-Call Local Distributor Manufactured by Designs For Vision, Inc. 4000 Veterans Memorial Hwy Emergo Europe BV Bohemia, NY 11716 • 631/585-3300 Westervoortsedijk 60 LED D ® ™...

This manual is also suitable for:

Dvi-ledmc
