RaceChip XLR User Manual

Kia stinger (ck) 2.0 t-gdi
Hide thumbs Also See for XLR:

Advertisement

Quick Links

User Manual
Kia Stinger (ck) 2.0 T-GDi

Advertisement

loading
Need help?

Need help?

Do you have a question about the XLR and is the answer not in the manual?

Questions and answers

Related Manuals for RaceChip XLR

Summary of Contents for RaceChip XLR

  • Page 1 User Manual Kia Stinger (ck) 2.0 T-GDi...

  • Page 2: Table Of Contents

    Contents 1 Scope of delivery3 2 Installation 4 3 Operation 11 4 Trouble Shooting 12 5 Contact 15 Overview and explanation of symbols Warnings and important information – please read! General information on installation and use Tips to assist installation and use...

  • Page 3: Scope Of Delivery3

    1 Scope of delivery Brainbox Specifi cally modifi ed to suit your car. Controller 7 separate stages to choose from Fasteners Material to fi x the Brainbox and the Controller in place User Manual Installation and operation Benutzerhandbuch...

  • Page 4: Installation 4

    2 Installation Step 1 of 6 – Preparation Open the driver’s door as far as possible. Remove any mats and move the driver’s seat all the way back. Switch the ignition off, remove the key. Ensure the footwell is properly illuminated with an inspection lamp. With the driver’s door open, lock the car.
  • Page 5 2 Installation Step 2 of 6 – Disconnect throttle pedal sensor There are two types of throttle pedal: fl oor-mounted or hanging. We’ll explain how to disconnect the throttle pedal sensor for both types. A. Floor-mounted throttle pedal B. Hanging throttle pedal Throttle pedal sensor Throttle pedal sensor •...
  • Page 6 2 Installation Step 3 of 6 – Connect the Brainbox The car used to illustrate these instructions is for demonstration purposes only. The basic proce- dure is exactly the same even if the details of your car look different. • Attach connector A from the Brainbox to the gas pedal sensor •...
  • Page 7 2 Installation Step 4 of 6 – Fix the Brainbox We recommend two places for fi xing the Brainbox (although there may be other possibilities). Before you fi x the Brainbox, decide where you want to fi x the Controller (if you want to fi x it in place permanently).
  • Page 8 2 Installation A. On the left of the footwell B. Under the trim on the centre tunnel next to the footrest Cable clip Cable clip 2x cable clips 4x cable ties • Use the cable clips and/or cable ties to secure the cable between the Brainbox and the Controller, ensuring that nothing interferes with the pedals.
  • Page 9 2 Installation Step 5 of 6 – First function test Connector controller • Before continuing with the installation, • Turn the ignition of your car on. The LEDs check that the Brainbox is properly on the controller should light up. connected •...
  • Page 10 2 Installation Step 6 of 6 – Fix the Controller (optional) You only need to leave the Controller connected with the Brainbox until you’ve selected the tuning stage you want (see Operation for more information). Once you’ve chosen a stage, the Brainbox saves your choice and you can disconnect the Controller.

  • Page 11: Operation 11

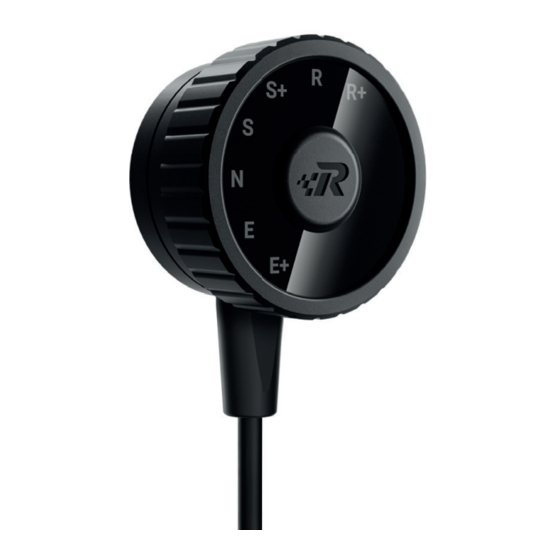

    3 Operation The Controller Use the rotary control to choose between 4 stages offering sharper throttle response and 2 stages with diminished response. The currently active stage is indicated by a lit LED. R+ ― Race Plus Throttle responsiveness like a sports R ―...

  • Page 12: Trouble Shooting 12

    4 Trouble Shooting If your RaceChip XLR doesn’t function as it should, here are some trouble shooting tips. What to do Description of problem Check engine warning Switch off the engine and remove the key. Check that all • light...
  • Page 13 • Service and give us as much detail as possible. We can help you much better if you give us precise information. Please only use the RaceChip XLR’s tuning stage N until a • solution has been found. Please de-install the Brainbox of RaceChip XLR.
  • Page 14 If the problem did not occur immediately after you installed • RaceChip XLR, it could be caused by a malfunction in the throttle pedal or in another related assembly (i.e. RaceChip is not the cause). In this case, please take the car to a specialist workshop.

  • Page 15: Contact 15

    Please have your customer details close by when you contact us. Follow us on: /racechipchiptuning @racechipDE Legal notice RaceChip Chiptuning GmbH & Co. KG Ulmer Str. 123 73037 Göppingen Germany Sales tax identifi cation number: DE 260672432 Registered at District Court of Ulm: HRA 721734...
