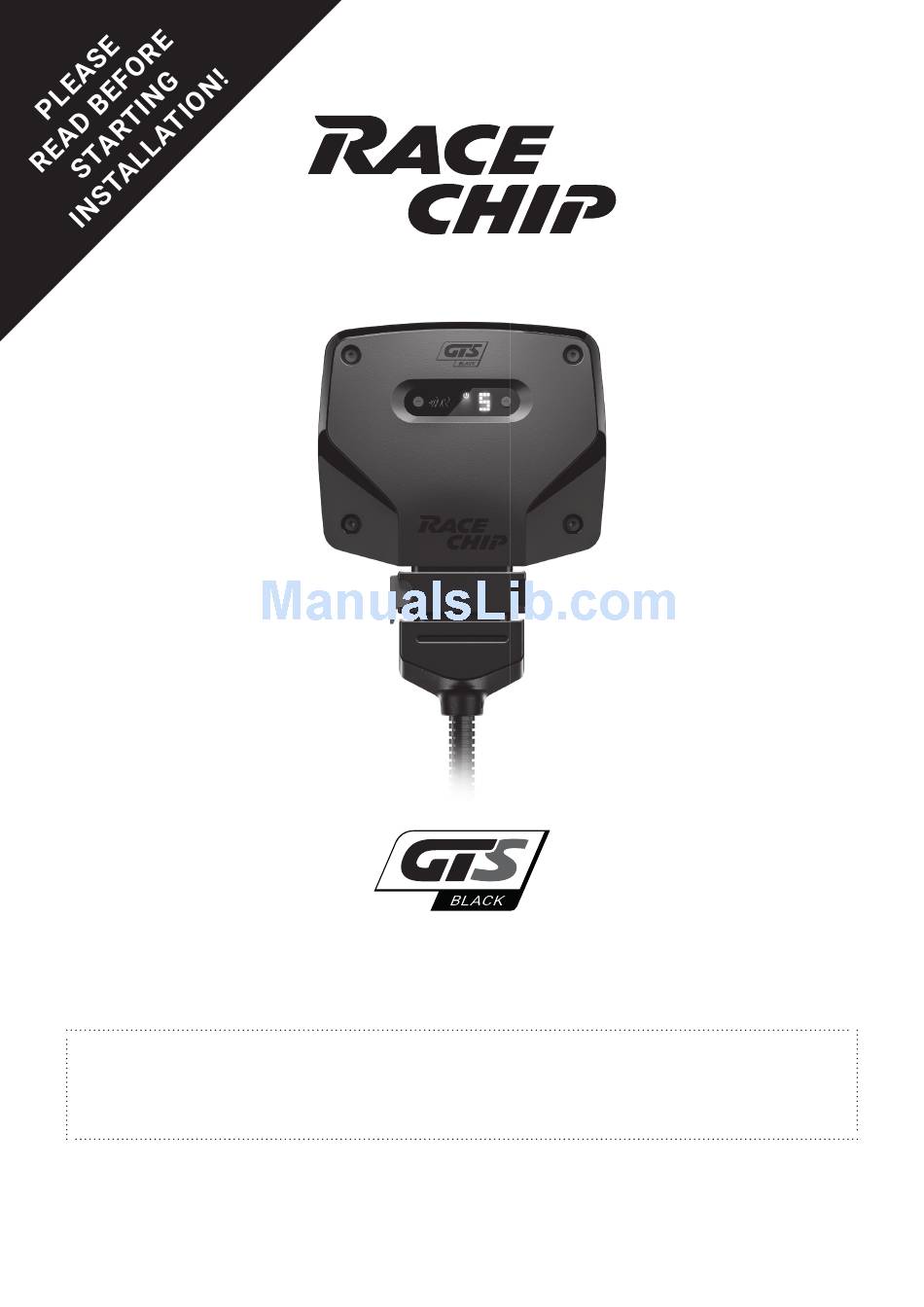

- Page 1 User Manual...
-
Page 2: Table Of Contents
Contents 1 Scope of delivery3 2 Overview of the RaceChip 4 3 Installation 5 4 Fine tuning 14 5 Trouble Shooting 16 6 Contact 20 Overview and explanation of symbols Warnings and important information – please read! General information on installation and use... -
Page 3: Scope Of Delivery
1 Scope of delivery RaceChip GTS Black Deactivation plug calibrated specifi cally for your returns your engine to stock tune vehicle Wiring harness User Manual automobile-grade, compatible installation and operation with your vehicle Cable ties Engine warranty 2 x long cable ties... -
Page 4: Overview Of The Racechip

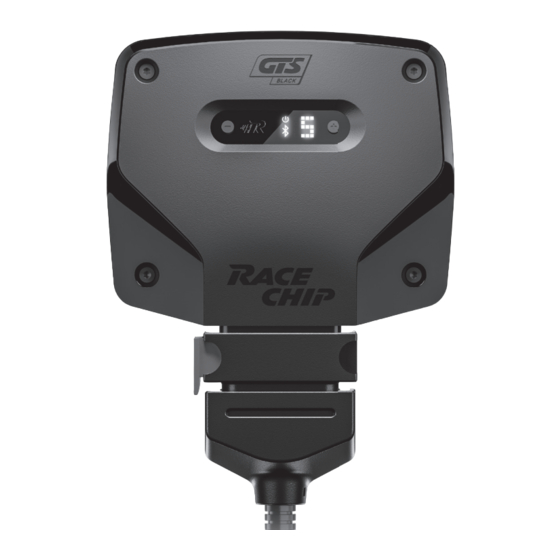

2 Overview of the RaceChip Digital User Interface for controlling the RaceChip +/- buttons for changing the mapping (see Fine tuning) Power ON light; lights only when the vehicle ignition is on and power is being supplied to the RaceChip... -
Page 5: Installation 5
3 Installation Step 1 of 7 - Preparation Before installing the RaceChip, please wait for your engine to cool down. Otherwise there is a risk of sustaining burns. Open your vehicle’s bonnet, and close and lock the doors. Wait about 10 minutes before starting Step 2, as all current consumers must have switched themselves off Generally speaking, you do not require special tools to perform the installation. - Page 6 3 Installation Step 2 of 7 - Removing the engine cover The pictures on the following pages are for demonstration purposes only – details may be in your car’s engine bay. However, the installation process is identical. The engine cover is held in place by clips (A) or screws (B) •...
- Page 7 The best way to find the common rail itself is by following the injection lines. These always lead directly from the injection system to the cylinders, i.e. they can be traced back from the engine block. Setup illustration Common rail Common rail connection connection Cable with disconnected Cable from the stock plug RaceChip...
- Page 8 If you experience diffi culties disconnecting the common rail sensor, see Detaching the Connector Correctly (separate document) for assistance • Now connect the end of the RaceChip wiring harness marked “A” to the disconnected connector and the other end to the sensor •...
- Page 9 Once the connection to the common rail is complete, it is time to make the connection to the turbo boost pressure sensor To begin, locate the turbo boost pressure sensor in your engine bay. Setup illustration Turbo boost pressure Turbo boost pressure sensor connection Cable with disconnected Cable from stock connector the RaceChip...
- Page 10 If you experience diffi culties disconnecting the turbo boost pressure sensor, see Detaching the Connector Correctly (separate document) for assistance • Now connect the end of the RaceChip wiring harness marked “B” to the disconnected connector and the other end to the sensor •...
- Page 11 Trouble Shooting for a solution Carrying out function test • Position the RaceChip and the wiring harness safely in the engine bay. Do not fi x anything in place yet. • Switch the ignition on DO NOT start the engine •...
- Page 12 • Use the 360° fi xing clips included to fi x the RaceChip and thread the cable ties through the fi xing clips to hold the wiring harness in place.
- Page 13 When selecting a fastening point, make sure that the RaceChip is protected from exposure to water, heat, and vibrations • Do not wrap the RaceChip in an airtight bag as this can lead to a built up of condensation •...
-
Page 14: Fine Tuning 14
Fine tuning is needed after installing the RaceChip The Digital User Interface of the RaceChip (see Overview of the RaceChip) lets you carry out the Fine tuning yourself to get the best from your RaceChip-enhanced engine. - Page 15 You can also use the deactivation plug to return you car to stock tune without having to remove the wiring harness. In order to use the deactivation plug, you need to remove the RaceChip from the wiring harness connector and replace it with the deactivation plug •...
-
Page 16: Trouble Shooting 16
5 Trouble Shooting If the RaceChip does not function as it should, you can find some initial assistance here. If the suggestions here do not solve the problem, please contact our Customer Service (see Contact) Description of problem What to do No extra performance •... - Page 17 • De-install the RaceChip wiring harness to the point that you can reconnect all the connections in your car as they were before you started installing the RaceChip. Lock the car and...
- Page 18 Lock the car and wait ca. 30 minutes before trying to start the engine again. • If the car starts, you can re-install the RaceChip. Make sure the ignition is switched off and wait at least 15 minutes before disconnecting the sensors in the engine bay.
- Page 19 • If your driving style is at least partly economical and you still do not save fuel, please select the next Mapping up the scale via the Digital User Interface of the RaceChip (see Fine tuning, section ). After selecting a new mapping, check the...
-
Page 20: Contact 20
Please have your customer details close by when you contact us. Follow us on: /racechipchiptuning @racechipDE Legal notice RaceChip Chiptuning GmbH & Co. KG Ulmer Str 123 73037 Göppingen Germany Sales tax identifi cation number: DE 260672432 Registered at District Court of Ulm: HRA 721734...
