Franklin Electric Co., Inc.
P. O. Box 12010
Oklahoma City, OK 73157-2010
405.947.2511 • Fax: 405.947.8720
CustomerService-WTS@fele.com
INTRODUCTION
This instruction sheet provides you with the information required
to safely own and operate your product. Retain these instructions
for future reference.
The product you have purchased is of the highest quality work-
manship and material, and has been engineered to give you long
and reliable service. This product has been carefully tested,
inspected, and packaged to ensure safe delivery and operation.
Please examine your item(s) carefully to ensure that no damage
occurred during shipment. If damage has occurred, please con-
tact the place of purchase. They will assist you in replacement or
repair, if required.
READ
THESE
INSTRUCTIONS
ATTEMPTING TO INSTALL, OPERATE, OR SERVICE YOUR
PRODUCT.
KNOW
THE
LIMITATIONS,
AND
POTENTIAL
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION.
FAILURE
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/
OR PROPERTY DAMAGE!
SAFETY GUIDELINES
WARNING: RISK OF ELECTRIC SHOCK. This pump is supplied
with a grounding conductor and grounding-type attachment plug.
To reduce the risk of electric shock, be certain that it is connected
only to a properly grounded, grounding-type receptacle.
1. Read all instructions and safety guidelines thoroughly. Failure
to follow the guidelines and the instructions could result in
serious injury and/or property damage.
2. Check local electrical and building codes before installation.
The installation must be in accordance with their regulations.
3. During normal operation the sump pump is immersed in
water. Also, during rain storms, water may be present in the
surrounding area of the pump. Caution must be used to pre-
vent bodily injury when working near the pump:
a. The plug must be removed from the receptacle prior to
touching, servicing or repairing the pump.
b. To minimize possible fatal electrical shock hazard, extreme
care should be used when changing fuses. Do not stand in
water while changing fuses or insert your finger into fuse
socket.
4. Do not run the pump in a dry sump. If the pump is run in a
dry sump, the surface temperature of the pump will rise to a
high level. This high level could cause skin burns if the pump
is touched and will cause serious damage to your pump.
5. Do not oil the motor. The pump housing is sealed. A high
grade dielectric oil devoid of water has been put into the motor
housing at the factory. Use of other oil could cause serious
electric shock and/or permanent damage to the pump.
6. This pump's motor housing is filled with a dielectric lubricant
at the factory for optimum motor heat transfer and lifetime
lubrication of the bearings. Use of any other lubricant could

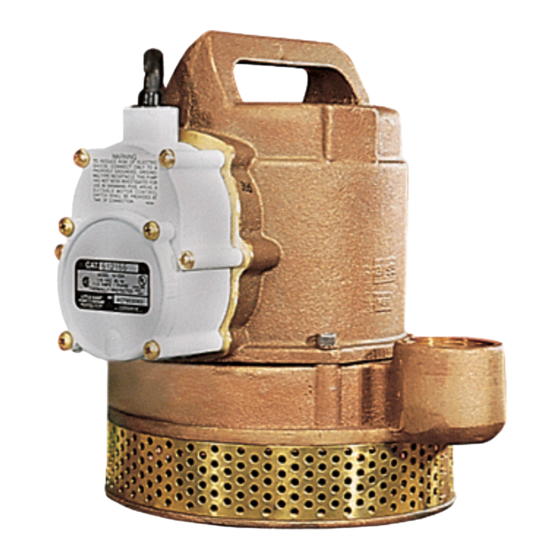

10-CIA
10-CIM
12-CBA
12-CBM
CAREFULLY
BEFORE
PRODUCT'S
APPLICATION,
HAZARDS.
PROTECT
TO
COMPLY
WITH
THESE
cause damage and void the warranty. This lubricant is non-
toxic; however, if it escapes the motor housing, it should be
removed from the surface quickly by placing newspapers or
other absorbent material on the water surface to soak it up, so
aquatic life is undisturbed.
7. In any installation where property damage and/or personal
injury might result from an inoperative or leaking pump due to
power outages, discharge line blockage, or any other reason,
a backup system(s) and/or alarm should be used.
LITTLE GIANT QUALITY
Every pump has been factory-tested for capacity, control opera-
tion and electrical continuity to assure maximum performance and
safety. Little Giant automatic sump pumps have a high volume
pumping capacity with a pressure activated switch. The switch
engages in 8-1/2"–12" of water. Other pumps are available in
epoxy coated cast iron housings or corrosion resistant cast
bronze. Maximum operating temperature is 120°F.
The motor section of your pump is permanently lubricated and
sealed - do not attempt to open this section. Special equipment
and knowledge is required for proper servicing of this part of your
pump and may only be accomplished by an Authorized Service
Center or the factory. Your warranty will be void if the motor sec-
tion is opened by unauthorized persons.
ELECTRICAL CONNECTIONS

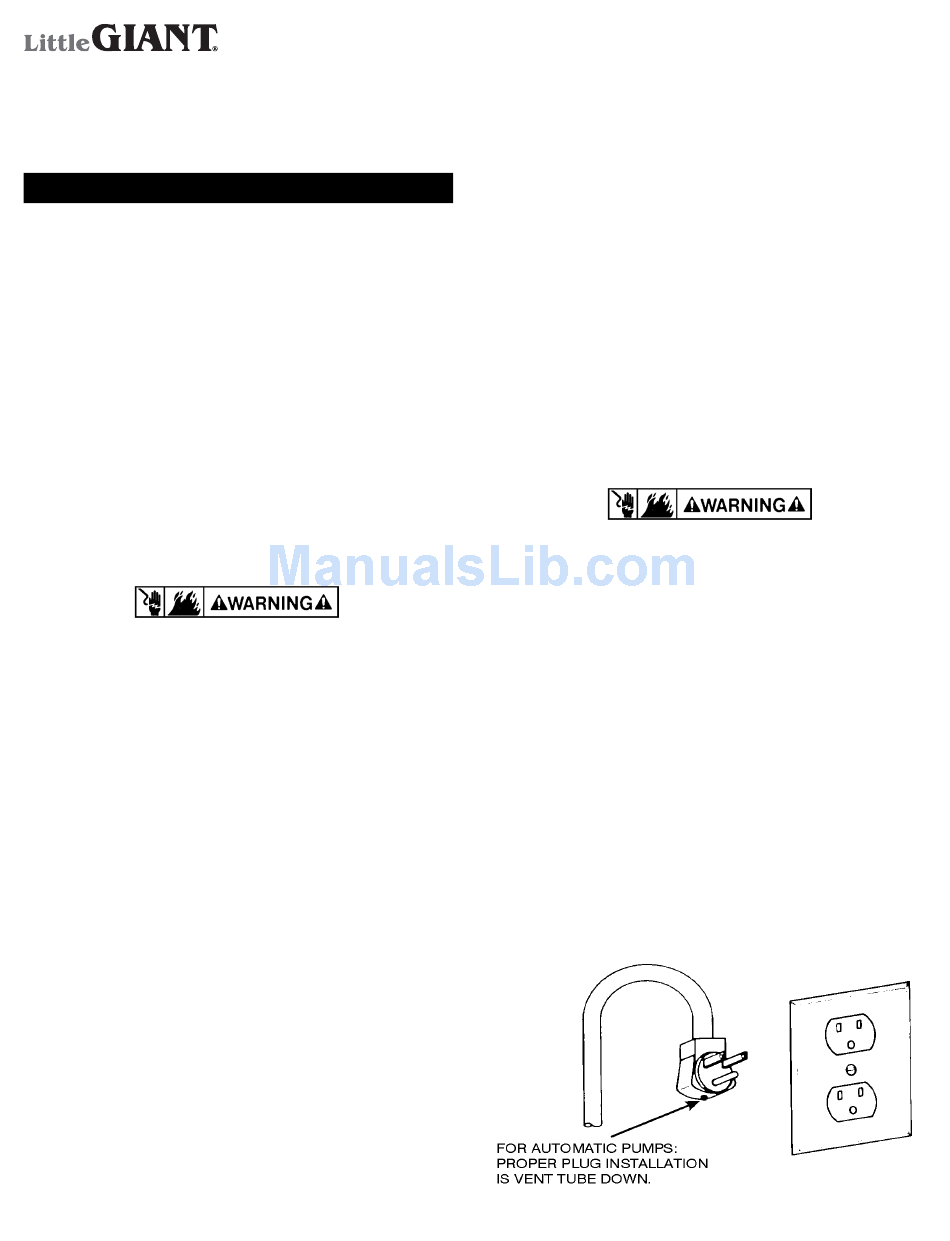

Your sump pump is supplied with a 3-prong electrical plug (see
Figure 1). The third prong is to ground the pump to prevent pos-
sible electric shock hazard. Do not remove the third prong from
the plug. A separate branch electrical circuit is recommended. Do
not use an extension cord.
INSTALLATION
1. Clean any debris from sump pit and set pump in center of pit.
A solid bottom will prevent clogging of the pump from sand
and dirt.
2. Connect discharge piping and run it to the nearest sewer or
surface outlet. Use pipe joint compound at all connections.
Sump pumps can be piped to discharge into the house drain-
age system, to a dry well, splash block or to a storm drain,
depending on local plumbing codes. The discharge pipe
should be as short as possible and contain as few elbows as
possible. The discharge pipe should be the same diameter
as the discharge size to reduce pipe friction losses. Smaller
pipe will restrict capacity and reduce pump performance. The
sump pump comes with 1-1/2" female pipe thread discharge.
3. Always install a union in the discharge line, just above the
sump pit, to allow for easy removal of the pump for cleaning
or repair.
Figure 1
1
