Summary of Contents for Little Giant 6EC-CIM

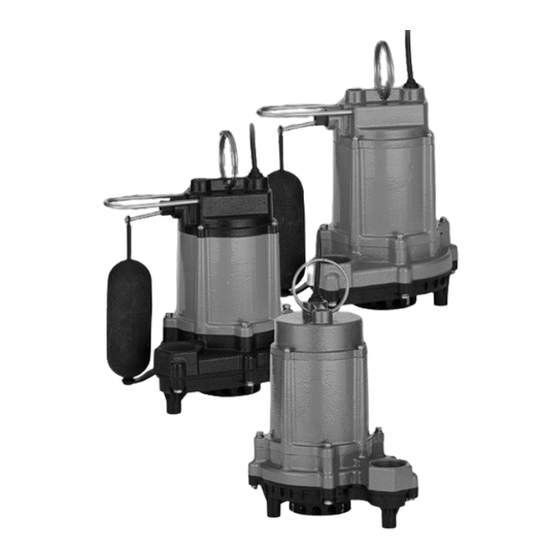

- Page 1 STOCK No. 53DH04 MODEL 6EC-CIA-SFS STOCK No. 53DH05 MODEL 6EC-CIM STOCK No. 53DH06 MODEL 10EC-CIA-SFS Installation Guide...
-
Page 2: Before Getting Started
BEFORE GETTING STARTED READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR SERVICE YOUR PRODUCT. KNOW THE PRODUCT’S APPLICATION, LIMITATIONS, AND POTENTIAL HAZARDS. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! Refer to product data plate(s) for additional operating instructions and specifications. -
Page 3: Table Of Contents
TABLE OF CONTENTS Before Getting Started................. 2 Introduction . -
Page 4: Introduction
INTRODUCTION WARNING The pump motor is equipped This is a submersible sump/effluent pump for use in basins or lift with an automatic resetting thermal protector and may restart stations and is suitable for pumping clear water or effluent gray water with up to 1/2" spherical semi-solids. Do not use the pump in unexpectedly. -
Page 5: Installation
INSTALLATION WARNING Check local electrical and 6. A check valve must be used in the discharge line to prevent back building codes before installation. The installation must be in flow of liquid into the basin. The check valve should be a free accordance with their regulations as well as the most recent flow valve that will easily pass solids. -
Page 6: Typical Installation
TYPICAL INSTALLATION Separate protected and grounded service outlet minimum 4' from floor. Pump Power Cord Gate Valve Discharge pipe no smaller than pump outlet. Check Valve Pump Power Grommet 2" or 3" Vent Pipe Union Sump Cover Gas-tight Basin, 18" dia. x 24" deep min. 3/16"... -
Page 7: Wiring
WIRING SPECIFICATIONS Gallons Per Minute, at Height W A R N I N G W A R N I N G Liters Per Minute, at Height Shut-Off 1.5 m 4.5 m 6.1 m 9.1 m 8.5 m 10EC WARNING 11 m Check local electrical and building codes before installation. -
Page 8: Sump System Operation Testing
TESTING AUTOMATIC PUMP OPERATION TESTING MANUAL PUMP OPERATION The 6EC-CIA-SFS and 10EC-CIA-SFS automatic pumps are The 6EC-CIM manual pumps do not include an automatic equipped with an integral float-operated mechanical switch. liquid level control. The pump cord for these pumps can be Automatic operation is achieved through the pump cord. -
Page 9: Maintenance
2. Check the power cords and electrical outlet for CONSULT INSTRUCTION SHEET ILLUSTRATIONS FOR PROPER ASSEMBLY damage or corrosion. AND DISASSEMBLY OF YOUR LITTLE GIANT PUMP. a. The power cord on these units cannot be replaced. In case of damage the whole unit must be replaced. -
Page 10: Pump Performance Curves
PUMP PERFORMANCE CURVES 10EC FLOW - LITERS/MINUTE FLOW - LITERS/MINUTE FLOW - GALLONS/MINUTE FLOW - GALLONS/MINUTE TROUBLESHOOTING Problem Probable Causes Corrective Action Pump not plugged in. Plug in pump. Circuit breaker shut-off or fuse removed. Turn on circuit breaker or replace fuse. Accumulation of trash on float. -
Page 11: Replacement Parts
REPLACEMENT PARTS Part No. Description Item No. 110970101 Cover Assembly, 115 V, Automatic, with Switch, 20' Cord 110970103 Cover Assembly, 115 V, Manual, 20' Cord 110970201 Capacitor Kit, 115 V, with Bracket, Seal Ring 110970301 Float Assembly with Stem Strap 110970401 Volute Base, Plastic, with Gasket for 6E 110970403... - Page 12 NOTES...
- Page 13 NOTES...
-
Page 15: Limited Warranty
SEWAGE & EFFLUENT 2 YEAR WARRANTY STATEMENT LIMITED WARRANTY THIS WARRANTY SETS FORTH THE COMPANY’S SOLE OBLIGATION AND PURCHASER’S EXCLUSIVE REMEDY FOR DEFECTIVE PRODUCT. Franklin Electric Company, Inc. and its subsidiaries (hereafter “the Company”) warrants that the products accompanied by this warranty are free from defects in materials or workmanship of the Company that exist at the time of sale by the Company and which occur or exist within the applicable warranty period. - Page 16 THIS WARRANTY AND REMEDY IS IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY SPECIFICALLY DISCLAIMED AND EXPRESSLY EXCLUDED. CORRECTION OF NON-CONFORMITIES, IN THE MANNER AND FOR THE PERIOD OF TIME AS SET FORTH ABOVE, SHALL CONSTITUTE FULFILLMENT OF ALL LIABILITY OF THE COMPANY TO THE PURCHASER WHETHER BASED ON CONTRACT, NEGLIGENCE, OR OTHERWISE.
