STEP 4
Attach Panel(B)to Panel(C)and tighten it
using Screw(1).
(1)x8pcs
Recommended Maximum Weight
15
10
*Unit in Pound(lbs)
STEP 5
5.1 Install Nail Leg(3) to the bottom of
Panel(C) using hammer.
5.2 Upright the unit.
(3)x4pcs
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Approx. 15 minutes
Approx. 10 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
No Tools Required
Tools Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

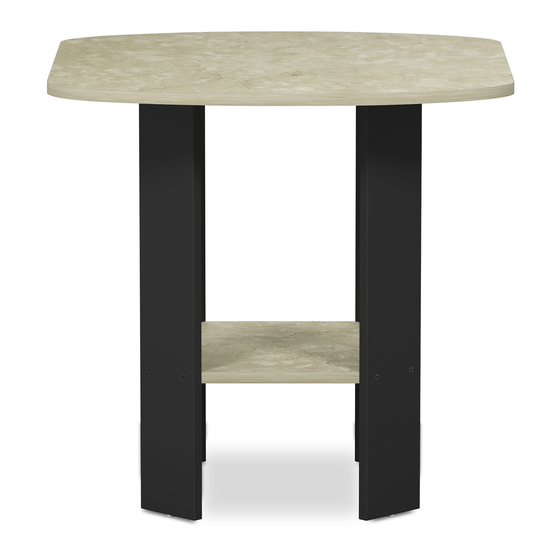

Furinno Simple Design End/SideTable
11180
MODEL
:
DIMENSION :
20"(W) x 19.6"(H) x 20"(D)
1118020140430
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furinno 11180
Summary of Contents for Furinno 11180
- Page 1 Attach Panel(B)to Panel(C)and tighten it 5.1 Install Nail Leg(3) to the bottom of using Screw(1). Panel(C) using hammer. 5.2 Upright the unit. its Space. its Budget Assembly Instruction Furinno Simple Design End/SideTable (1)x8pcs 11180 MODEL (3)x4pcs DIMENSION : 20”(W) x 19.6”(H) x 20”(D) Approx.
- Page 2 STEP 1 Hardware List Parts List 1.1 Insert Dowel(2)to Panel(C). Top Panel Chipboard Screw 1pcs 8pcs 1.2 Insert Cam-Lock Nut(4)into Panel(C). Note: Arrow on Cam-Lock Nut(4)should be Shelf Panel 1pcs Plastic Dowel 8pcs poiting towards hole. (4)x1pcs Nail Leg Leg Panel 4pcs 4pcs Cam-Lock Nut...
