STEP 4
4.1 Attach Panel(G)to Panel(E),as shown.
4.2 Combine the assembled parts of
Panel(C)(F)&(D)(F)to the unit using
Screw(1).
STEP 5
5.1 Upright the unit and attach
Panel(A)on top.
5.2 Tighten Cam-Lock Nut(4) and
cover it with Sticker(7).
Recommended Maximum Weight
40
15
15
*Unit in Pound(lbs)
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Recomm. 2 Person
Tool Required
Tool Required
Customer Support
NEED HELP? For help with assembly, or if you are missing a
part, please call Furinno Customer Service, 1-773-299-8111
from Mon-Fri, 9am-5pm (CST) or email: support@furinno.com
www.furinno.com
Assembly Instruction

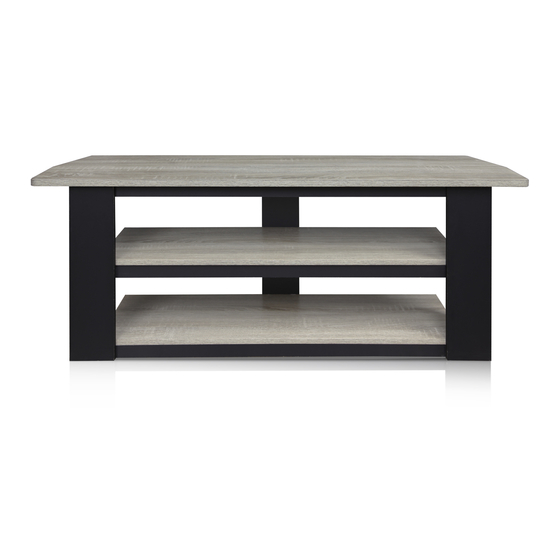

Furinno Parsons 42-in TV
Entertainment Center
12186
MODEL
:
DIMENSION :
42.1"(W) x 16.5"(H) x 13.4"(D)
1218620180112
