STEP 3
Attach Panel(A)and Long Pole(1)to the
assembled unit,as shown.
(1)x 3pcs
Recommended Maximum Weight
10
10
10
*Unit in Pound(lbs)
STEP 4
Attach another piece of Top Panel(A)and
tighten it using Top Cap(2).
(2)x 3pcs
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 10 minutes
Recomm. 1 Person
No Tools Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com

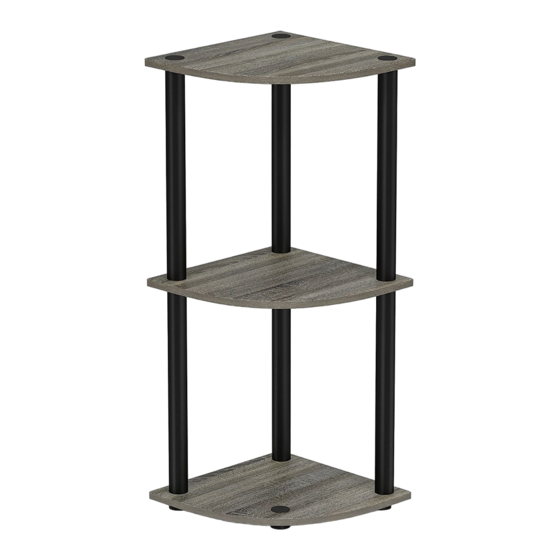

Assembly Instruction
Furinno Turn-N-Tube 3-Tier Corner
Display Rack Multipurpose Shelving Unit
12077
MODEL
:
DIMENSION :
11.6"(W) x 29.6"(H) x 11.6"(D)
1207720140519
Advertisement
Related Manuals for Furinno 12077
Summary of Contents for Furinno 12077
- Page 1 Attach another piece of Top Panel(A)and assembled unit,as shown. tighten it using Top Cap(2). its Space. its Budget (1)x 3pcs (2)x 3pcs Assembly Instruction Furinno Turn-N-Tube 3-Tier Corner Display Rack Multipurpose Shelving Unit 12077 MODEL DIMENSION : 11.6”(W) x 29.6”(H) x 11.6”(D) Approx. 10 minutes Recomm.
- Page 2 STEP 1 Hardware List Parts List Fix Round Leg(3)to the bottom of Bottom Panel(B),as shown. Long Pole 6pcs Tighten with 1 piece of Top Cap(2)on the center hole,as shown. Top Panel 2pcs Top Cap 4pcs Round Leg 4pcs Bottom Panel 1pcs STEP 2 Attach Long Pole(1) on Bottom Panel(B) and tighten it.
