Installation and Operation of Intersil's ISL98001
Analog Front End Evaluation System
©2005, Intersil Corp.
Page 1/16
Intersil Corporation
1001 Murphy Ranch Rd
Milpitas, CA 95035
Tel: 408-432-8888
http://www.intersil.com
Ver. 1.1, 12/19/05

Advertisement

loading
Need help?

Need help?

Do you have a question about the ISL98001 and is the answer not in the manual?

Questions and answers

Related Manuals for Intersil ISL98001

Summary of Contents for Intersil ISL98001

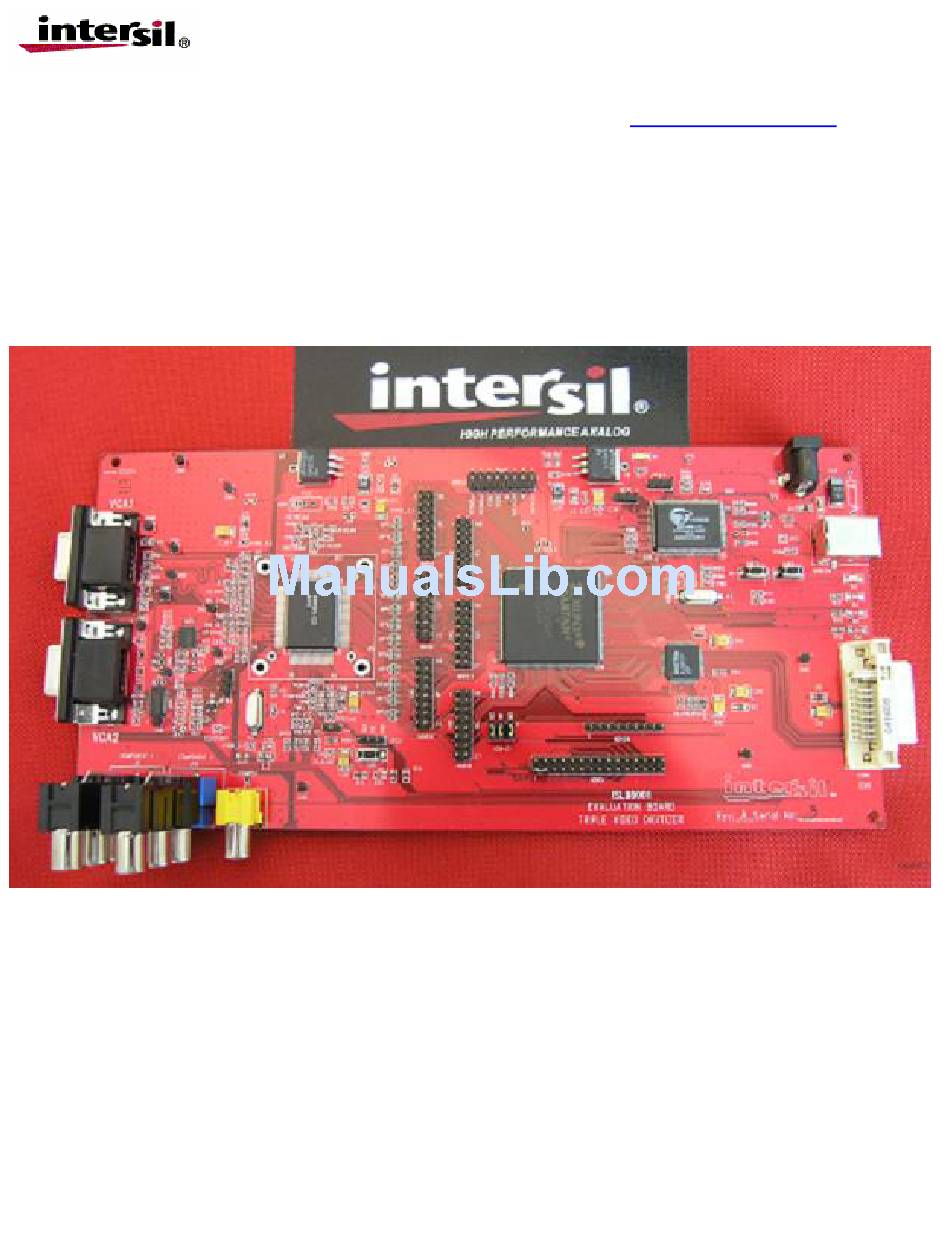

  • Page 1 Intersil Corporation 1001 Murphy Ranch Rd Milpitas, CA 95035 Tel: 408-432-8888 http://www.intersil.com Installation and Operation of Intersil’s ISL98001 Analog Front End Evaluation System ©2005, Intersil Corp. Page 1/16 Ver. 1.1, 12/19/05...

  • Page 2: Software Installation

    “Intersil” directory to the “Start Menu/Programs” tree. That directory will contain a shortcut to the ISL98001 executable and an uninstaller. The main program files will be installed in the Program Files/ISL98001 directory. The USB driver file windrvr6.sys will be placed into C:\WINDOWS\system32\drivers and ISL98001.inf will be installed under C:\WINDOWS\INF.
  • Page 3 1001 Murphy Ranch Rd Milpitas, CA 95035 Tel: 408-432-8888 http://www.intersil.com By default, the installer will put the evaluation software under c:\Program Files\ISL98001 directory. To us a different directory, select the “Browse” button. Press “Next” to continue. ©2005, Intersil Corp. Page 3/16...
  • Page 4 1001 Murphy Ranch Rd Milpitas, CA 95035 Tel: 408-432-8888 http://www.intersil.com Press “Next” to create the Intersil folder in the Start Menu. Press the “Install” button to copy all the necessary files onto the PC. ©2005, Intersil Corp. Page 4/16 Ver. 1.1, 12/19/05...

  • Page 5: Connecting The Evaluation Board

    Connecting the Evaluation Board After installation of the ISL98001 software, re-boot the PC if requested. Apply power to the ISL98001 Evaluation Board with the provided 5V power supply. Connect the USB cable to the ISL98001 Evaluation Board. The Microsoft windows operating system will see the ISL98001 Evaluation Board as a new device, and will try to load appropriate driver for it.
  • Page 6 Milpitas, CA 95035 Tel: 408-432-8888 http://www.intersil.com The following screen will then appear: Press Next (“Install the software automatically”). The Hardware Wizard will try to locate and install the driver for the ISL98001: ©2005, Intersil Corp. Page 6/16 Ver. 1.1, 12/19/05...
  • Page 7 Intersil Corporation 1001 Murphy Ranch Rd Milpitas, CA 95035 Tel: 408-432-8888 http://www.intersil.com Click Finish to complete the installation. On XP systems, a pop-up message may display the status of the ISL98001 hardware. ©2005, Intersil Corp. Page 7/16 Ver. 1.1, 12/19/05...

  • Page 8: Hardware Setup

    • Connect the 5V power supply to the power connector At this point, the evaluation board’s FPGA will format the data from the ISL98001 and generate SXGA video timing on the DVI output connector. The incoming SXGA image should appear on the DVI monitor.

  • Page 9: Starting The Software

    Click on the “Read All Registers” button in the lower left screen. All of the register values from the ISL98001 on the evaluation board should appear as shown in the next image. If the register values are not read correctly, proceed to the Troubleshooting section of this document.
  • Page 10 • Increment by 1: Up Arrow • Decrement by 1: Down Arrow • Increment by 16 (increment high nibble by 1): Page Up • Decrement by 16 (decrement high nibble by 1): Page Up ©2005, Intersil Corp. Page 10/16 Ver. 1.1, 12/19/05...
  • Page 11 The input connector can also be selected at this time. The ISL98001 evaluation board has a YPbPr to RGB color space converter (CSC) inside the FPGA. The CSC allows YPbPr/component video signals to be displayed on TVs that expect RGB format. If you are using such a TV, checking the “Auto Enable YPbPr to RGB Color Space Converter for Comp.
  • Page 12 Tel: 408-432-8888 http://www.intersil.com Note that while there is a “composite” video connection, the ISL98001 AFE does not support composite video decoding. It will simply digitize the composite video signal through the AFE’s video channel. It is possible to take that digitized composite signal and perform digital decoding of the composite signal after it is digitized, but that is beyond the function of this evaluation system.

  • Page 13: Operation

    • All registers can be read by pressing the “Read All Registers” button. • Registers 0x00 – 0x02 are read-only. • The HTOTAL value is not latched by the ISL98001 until the LSB (0x0F) is written (i.e. writes to the MSB only will not change the HTOTAL used by the ISL98001).
  • Page 14 Tel: 408-432-8888 http://www.intersil.com DE Adjust If the image on the DVI monitor is clipped, the following window allows the Data Enable (DE) signal to be adjusted to change the position of the frame: ©2005, Intersil Corp. Page 14/16 Ver. 1.1, 12/19/05...
  • Page 15 “Hardware” tab, then click on Device Manager: • There should be a “Jungo” entry, with an ISL98001 sub category. This indicates the driver is properly installed and is communicating with the evaluation board. If this is not visible, or there are any error messages, take the following actions until the problem is resolved: •...
  • Page 16 • If none of this works, try installing the software on a different PC to verify correction operation of the evaluation board and software. • Note: The ISL98001 Evaluation Board has a Vendor ID (VID) of 0x09AA and Product ID (PID) of 0x1004.
