ISL9519EVAL1Z Evaluation Board Setup Procedure
The ISL9519 is a highly integrated battery charger
controller for Li-ion/Li-ion polymer batteries with SMBus
interface controlling system voltage, charge current and
input current limiting. The evaluation board includes a
USB to SMBus interface to allow users to control the
ISL9519 from a Personal Computer.
What's Inside
This Evaluation Board Kit contains the following
materials:
• Qty (1) ISL9519EVAL1Z Evaluation Board
• Qty (1) USB cable
AC ADAPTER
AC ADAPTER
OR
OR
DC POWER SUPPLY
DC POWER SUPPLY
5V – 20V, 5A
5V TO 20V, 5A
April 1, 2010
AN1562.0
ISL88731 EVAL2Z REVB
AC ADAPTER
AC ADAPTER
INPUT
INPUT
+
+
+
-
-
-
USB
USB

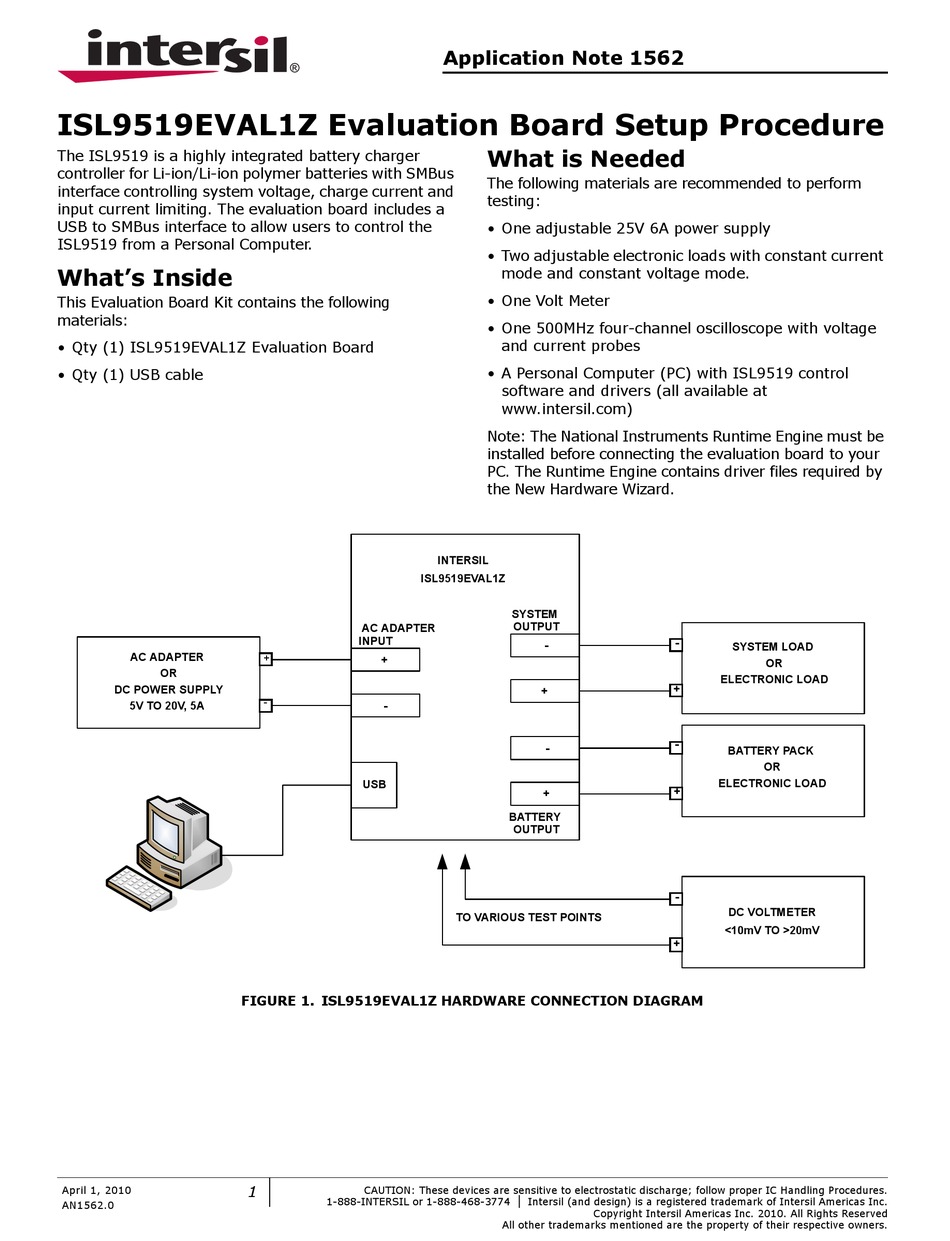

FIGURE 1. ISL9519EVAL1Z HARDWARE CONNECTION DIAGRAM
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Application Note 1562
What is Needed
The following materials are recommended to perform
testing:
• One adjustable 25V 6A power supply
• Two adjustable electronic loads with constant current
mode and constant voltage mode.
• One Volt Meter
• One 500MHz four-channel oscilloscope with voltage
and current probes
• A Personal Computer (PC) with ISL9519 control
software and drivers (all available at
www.intersil.com)
Note: The National Instruments Runtime Engine must be
installed before connecting the evaluation board to your
PC. The Runtime Engine contains driver files required by
the New Hardware Wizard.
INTERSIL
INTERSIL
ISL9519EVAL1Z
SYSTEM
SYSTEM
OUTPUT
OUTPUT
-
+
-
+
BATTERY
BATTERY
OUTPUT
OUTPUT
TO VARIOUS
TO VARIOUS TEST POINTS
TEST POINTS
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2010. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
-
-
SYSTEM LOAD
SYSTEM LOAD
OR
OR
ELECTRONIC LOAD
ELECTRONIC LOAD
+
+
-
-
BATTERY PACK
BATTERY PACK
OR
OR
ELECTRONIC LOAD
ELECTRONIC LOAD
+
+
-
-
DC VOLTMETER
DC VOLTMETER
<10mV to >20v
<10mV TO >20mV
+
+
