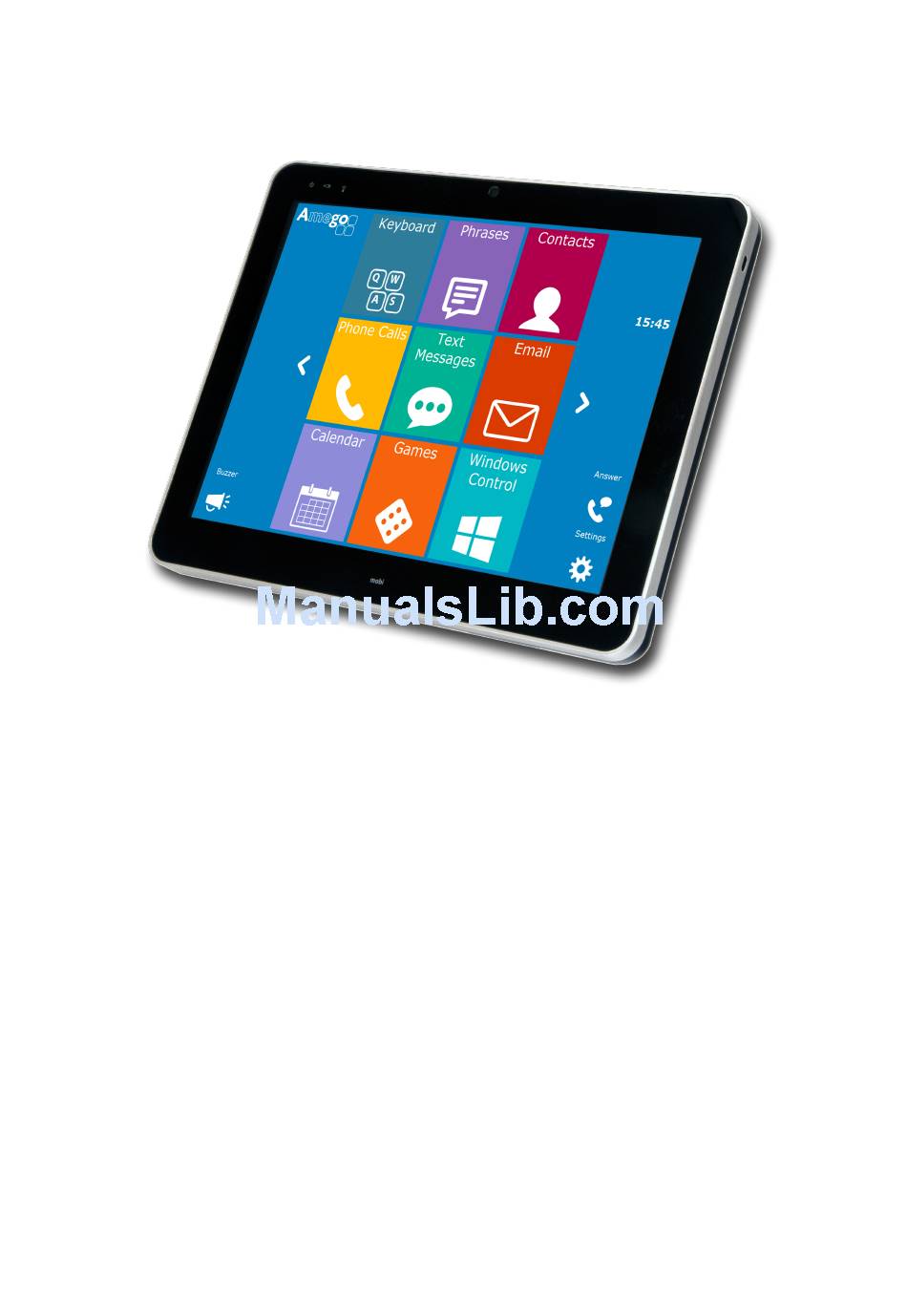

  • Page 1 Mobi 3...
  • Page 2 All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in an automated retrieval system or translated into any language or computer language in any form or by any means, either electronically, mechanically, optically, chemically, manually or in any other way without the prior written consent from Jabbla. This document is a translation of the original Dutch user manual.

  • Page 3: Table Of Contents

    Mobi 3 Content Introduction 1 Introduction................................4 2 Intended use................................4 3 Prohibited use................................. 4 4 Service life................................4 5 The Mobi type plate............................... 4 6 Technical data................................. 4 Description and operation 1 Getting to know the Mobi (resistive)........................7 2 Getting to know the Mobi (capacitative)......................9 3 Accessories and options............................11...
  • Page 4 Mobi 3 5.12 Downloading and installing the Jabbla BT app..................................27 6 Linking the Eddy to the Mobi..........................28 7 Using the environmental control of the Mobi....................28 8 Putting the Mobi in sleep mode......................... 29 9 Waking the Mobi from sleep mode........................30 10 Resetting the Mobi...............................

  • Page 5: A Introduction

    Mobi 3 Introduction...

  • Page 6: Introduction

    Mobi 3 Introduction The Mobi is a versatile, symbol supported communication tool based on the Mind Express graphic communication program. The Mobi runs on the Windows 10 operating system. If you are not familiar with Windows 10, we advise that you only perform the actions described in this user guide and in the user guide of the Mind Express program.
  • Page 7 Mobi 3 Specification Explanation Webcam ▪ With a capacitative screen: integrated into the screen. ▪ With a resistive screen: not available. Mounting DAESSY mounting system mounting plate Connectivity WiFi, Bluetooth Audio ▪ 1 integrated microphone ▪ 2 integrated speakers Switches...

  • Page 8: B Description And Operation

    Mobi 3 Description and operation...

  • Page 9: Getting To Know The Mobi (Resistive)

    Mobi 3 Getting to know the Mobi (resistive) Figure 1: Mobi front view Identification Explanation Touch screen The device has a 12.1 inch resistive touch screen. See Resistive touch screen on page 11. On/off button This allows you to switch the device on/off or revert to sleep mode.
  • Page 10 Mobi 3 Figure 2: Mobi rear view Identification Explanation Top button or button A This button is programmable. As standard, the Windows function Master Volume Up is programmed. Middle button or ESC button This button is NOT programmable, but can be disabled. Press this button briefly to simulate a rightclick at the next touch off the screen.

  • Page 11: Getting To Know The Mobi (Capacitative)

    Mobi 3 Identification Explanation USB 2.0 The USB port allows you to connect USB-compatible devices and peripherals such as a mouse, keyboard, printer, ... USB 2.0 The USB port allows you to connect USB-compatible devices and peripherals such as a mouse, keyboard, printer, ...
  • Page 12 Mobi 3 Identification Explanation On/off indicator The on/off indicator shows the status of the device: ▪ no indicator light showing: device is switched off ▪ red: battery capacity below 20% ▪ amber: battery capacity is between 20% and 50% ▪...

  • Page 13: Accessories And Options

    Mobi 3 Identification Explanation Battery cover The battery cover protects the battery and can be removed by unscrewing 3 screws. Fan vent This opening is for additional cooling to the Mobi. Be sure to keep this opening unobstructed! Jack for headphones This output is for connecting headphones to the Mobi.

  • Page 14: Capacitative Touch Screen

    Mobi 3 Resistive touch screen A resistive touch screen is pressure sensitive and can be operated with your fingers and other objects, such as a stylus. In the winter you can also operate the touch screen with your gloves on. The touch screen consists of 2 layers with an air gap separating them. One of the layers has an electrical voltage applied to it.

  • Page 15: C Safety

    Mobi 3 Safety...

  • Page 16: Safety

    Mobi 3 Safety CAUTION When mounting the device to a wheelchair, ensure that the unit is securely fastened and additionally locked, so that it cannot accidentally fall at the slightest shock or impact. NOTICE The device uses a Li-ion battery. Do not dispose of the battery in the usual way when replacing it. Keep to the waste regulations that apply in your region.

  • Page 17: D Getting Started

    Mobi 3 Getting started...

  • Page 18: What's In The Mobi Box

    Mobi 3 What's in the Mobi box? The Mobi is supplied with the following parts: ▪ carry case ▪ power supply with plug and cable ▪ USB input panel ▪ USB mouse ▪ USB stick ▪ user guide Mobi ▪...

  • Page 19: Storing The Device For An Extended Period

    Mobi 3 Figure 7: On/off button with a capacitative screen Figure 8: On/off button with a resistive screen During the device startup the on/off indicator will light briefly at one second intervals. Once the device has started up and is ready for use, the on/off indicator will stay on.

  • Page 20: E Control

    Mobi 3 Control...

  • Page 21: Switching On The Mobi

    Mobi 3 Switching on the Mobi Figure 9: On/off button with a capacitative screen Figure 10: On/off button with a resistive screen Press the on/off button (2). If the device was in sleep mode, it can be used immediately. If the device was switched off, then Windows must be started first.

  • Page 22: Viewing The Power Status

    Mobi 3 Remove the charger as soon as the battery is fully charged. See also Viewing the power status on page 20 The battery alarm settings on page 39 Replacing the battery on page 43 Showing the battery info on page 45 Viewing the power status View the on/off indicator (6) on the device.

  • Page 23: Mouse Control

    Mobi 3 CAUTION Do not use sharp tools, to prevent scratching the touch screen. NOTE Tap with your finger, not with your fingernail! CAUTION Make sure the touch screen does not come into contact with water. Use the following techniques to operate the touch screen:...

  • Page 24: Scan Control

    Mobi 3 To change the joystick control settings, select from Mind Express Tools > Joystick selection..For more information on activating and setting up the joystick control in Mind Express, see the Mind Express Help function. Scan control The device can be operated in Mind Express by scanning. In Mind Express, you can specify how you want to scan. For scanning, 1 or 2 switches that are directly connected to the device (12) (13) can be used.

  • Page 25: Using The On-Screen Keyboard

    24. Making calls / sending text messages with the Mobi via an external telephone The first time, you must complete the following steps. After that the Jabbla BT app will connect automatically provided that Bluetooth is enabled on your telephone.

  • Page 26: Making Calls With The Mobi Via The Internal Telephone

    Set the Mobi telephone options. See Setting the Mobi phone options (external telephone) on page 26. Install the Jabbla BT app on your telephone. See Downloading and installing the Jabbla BT app on page 27. Connect your telephone and the Mobi. See Connecting the external phone to the Mobi on page 27.

  • Page 27: Using The Sample File For Text Messages

    Mobi 3 Number Explanation Using this you can call a contact from the address book. Choose the name of a contact in your address book. That contact will be called immediately. Use the buttons to browse through the address book.

  • Page 28: Setting The Mobi Phone Options (External Telephone)

    Tap on OK. Choose Mind Express Tools > Phone > (Re)connect. If you checked the Connect at startup option and installed the JABBLA BT app on your smartphone, the connection will be made automatically next time. NOTE The phone settings are saved when you close Mind Express. If you close Windows without closing Mind Express, your phone settings will not be...

  • Page 29: Setting The Mobi Phone Options (Internal Telephone)

    If you cannot find the app in Play Store, then the Android version 4.2 or higher is not installed on your smartphone. Tap on INSTALL. The JABBLA BT app is a free app. There is no need to set any payment options. Tap on ACCEPT.

  • Page 30: Linking The Eddy To The Mobi

    Mobi 3 Tap on OPEN. Search for the bluetooth name of your device from the list of available devices and connect. NOTE As required, click Scan for devices to see the available devices. Your device is now ready for making calls and sending text messages via your smartphone.

  • Page 31: Putting The Mobi In Sleep Mode

    Mobi 3 Figure 15: Infrared receiver and transmitter Mobi resistive On how to use the infrared codes and their settings (JabblaIR), please refer to the Mind Express user guide or online help. Putting the Mobi in sleep mode Sleep mode is an energy-saving mode that allows you to quickly wake up your computer again. By default, after 3 minutes the Mobi automatically switches to sleep mode.

  • Page 32: Waking The Mobi From Sleep Mode

    Mobi 3 Figure 18: On/off indicator with a capacitative screen Figure 19: On/off indicator with a resistive screen See also Waking the Mobi from sleep mode on page 30 Disabling sleep mode on page 38 Automatically disabling the USB ports in sleep mode...

  • Page 33: Resetting The Mobi

    Mobi 3 ▪ Press on the screen. ▪ Click a mouse button. ▪ Press a key on the keyboard. ▪ Press the switch. ▪ Press the on/off button (2). Figure 22: On/off button with a capacitative screen Figure 23: On/off button with a resistive screen...

  • Page 34: Shutting Down The Mobi

    Mobi 3 Shutting down the Mobi on page 32 11 Shutting down the Mobi Choose > > Exit. The on/off indicator (6) switches off. Figure 24: On/off indicator with a capacitative screen Figure 25: On/off indicator with a resistive screen...

  • Page 35: F Settings

    Mobi 3 Settings...

  • Page 36: Setting The Rear Buttons

    Mobi 3 Setting the rear buttons There is the option to assign certain functions to the top and bottom rear buttons. With a single click on one of these buttons a program can be launched, a macro run, a key stroke transmitted, the Windows system volume increased or decreased, a Wave file played and commands can be sent to DocReader or to Skippy.

  • Page 37: Switching The Speakers On Or Off

    Mobi 3 Option Explanation ▪ Press and hold (approximately 1.5 seconds) this button to simulate ESC. This will allow you to stop a scanning algorithm in Mind Express for example, or display the menu bar again. This button has been disabled, so will not respond.

  • Page 38: Setting The Microphone Volume

    Mobi 3 It is recommended to leave the microphone switched off. In Mind Express, the microphone is automatically switched on and off when you make a recording. Only switch on the microphone if you are using an application that is not a Mind Express application, and which requires a microphone (such as Skype).

  • Page 39: Putting The Device Into Flight Mode

    Mobi 3 Putting the device into flight mode Flight mode is a setting that allows you to simultaneously disable the wireless Internet connection (WiFi), Bluetooth and the mobile phone function on your device. Typically you would be requested to disable these mobile connections on a flight. You can continue to use the applications on your device that do not require a mobile connection.

  • Page 40: Automatically Disabling The Usb Ports In Sleep Mode

    Mobi 3 Enabling Bluetooth on page 37 13 Automatically disabling the USB ports in sleep mode To prevent peripherals also using a lot of power in sleep mode, you can automatically disable the USB ports when the device goes, or is switched, to sleep mode.

  • Page 41: Shutting Down The Mobi Menu

    18 Activating the Mobi menu To be able to use the Mobi functions, the Mobi menu must be activated. Open Explorer. Go to C:\Program Files (x86)\Mobi 3. Double-click the file Mobi3. The Power status dialog opens and appears in the system tray.

  • Page 42: Inserting A Sim Card (Optional)

    Mobi 3 Showing the battery info on page 45 21 Inserting a SIM card (optional) With the Mobi it is possible to make calls and send text messages via an external telephone. To use this function, a SIM card must be inserted into the device.
  • Page 43 Mobi 3 Replace the battery (27). Refit the cover (26) and secure it with the screws (25). As required, re-attach the Mobi to the mounting. Launch the Mobi. Settings Inserting a SIM card (optional)

  • Page 44: G Maintenance And Troubleshooting

    Mobi 3 Maintenance and troubleshooting...

  • Page 45: Maintenance

    Mobi 3 Maintenance Repairs In the event of damage to the device, please contact the distributor of the device. Do not attempt to carry out any repairs yourself. This could damage the device and invalidate your warranty. Cleaning the device Clean the device regularly so you do not give bacteria the chance to spread.

  • Page 46: Troubleshooting

    Mobi 3 Remove the battery (27) from the device. NOTE Dispose of the battery in accordance with the applicable local regulations. Place the new battery in the device. You can use a standard battery or a high capacity battery. There is a different battery cover for each of these batteries. The standard battery cover has a number of vertical ribs to ensure the battery is kept in the right position.

  • Page 47: Finding The Pic Version

    Mobi 3 Finding the Mobi menu version In your dealings with the support department, you will be asked to supply the Mobi menu version of your device. Do one of the following: ▪ Double-click on in the system tray. ▪...

  • Page 48: Troubleshooting

    Mobi 3 Replacing the battery on page 43 Troubleshooting Problem Solution The touch screen is slow or is not working properly. ▪ Restart the device to correct any software errors. ▪ Clean the screen. See Cleaning the device on page 43.

  • Page 49: H Decommissioning And Disposal

    Mobi 3 Decommissioning and disposal...

  • Page 50: Decommissioning

    Mobi 3 Decommissioning Shut down the Mobi. See Shutting down the Mobi on page 32 Remove the Mobi from its mounting. Remove the Mobi from the carry case. If required according to the applicable local regulations, proceed as follows: ▪...

  • Page 51: Index

    Mobi 3 Index A button DAESSY 4, 9, A 8, Decommissioning Accessory Description Alarm Dimensions battery Disposal Alea DocReader Android determine version on smartphone Jabbla BT Audio Edge Environmental control Escape ESC button button 8, Battery Eye control charge Alea...
  • Page 52 Mobi 3 Infrared receiver 9, transmitter 9, On/off Intended use button 7, Internal memory indicator 7, Internet On-screen input panel disable wireless Internet Operating system enabling wireless Internet Operation Introduction Option Jabbla BT Phone download and install connection with Mobi...
  • Page 53 Mobi 3 Start up with switch Storage 17, Switch connection 8, control settings start up with switch test Switching off Switch on System tray Technical data Text message sample file Tobii Touch screen capacitative clean resistive Touch-screen control Tray stand 8,...
  • Page 54 Mobi 3...
