Remote Control RF Signal Reception Test

Using the REMOTE MODE, the Diagnostic Tool simulates (pretends to be) a motor so it can measure the RF
signal being sent to it by Remote Control. The received signal strength is displayed on the Diagnostic Tool.
1. Select the REMOTE mode on the Diagnostic Tool [section 1.4].
2. Toggle the POWER SAVING MODE to OFF on the Diagnostic Tool [section 1.6].
3. Keep the Diagnostic Tool close to the motor antenna and press a button on a standard remote to log the
address of the standard remote with the Diagnostic Tool.
4. Fix the Diagnostic Tool next to the motor antenna.
5. Move away from the motor antenna/Diagnostic Tool.
6. Press a standard remote button over a distance.
7. Evaluate Diagnostic Tool readings. The address should be the same as set in step 3.
8. Toggle the POWER SAVING MODE to ON on the Diagnostic Remote once completed.
NOTE: In this mode the Diagnostic Tool only displays diagnostic info of the latest signal received. So before
testing, please make sure no other RF devices sending signals in testing area.
COMPATIBLE PRODUCTS
Remote controls:
MTRF-REM-1C
MTRF-REM-15
MTRF-WS5-FLUSH
MTRF-DCIM-1C

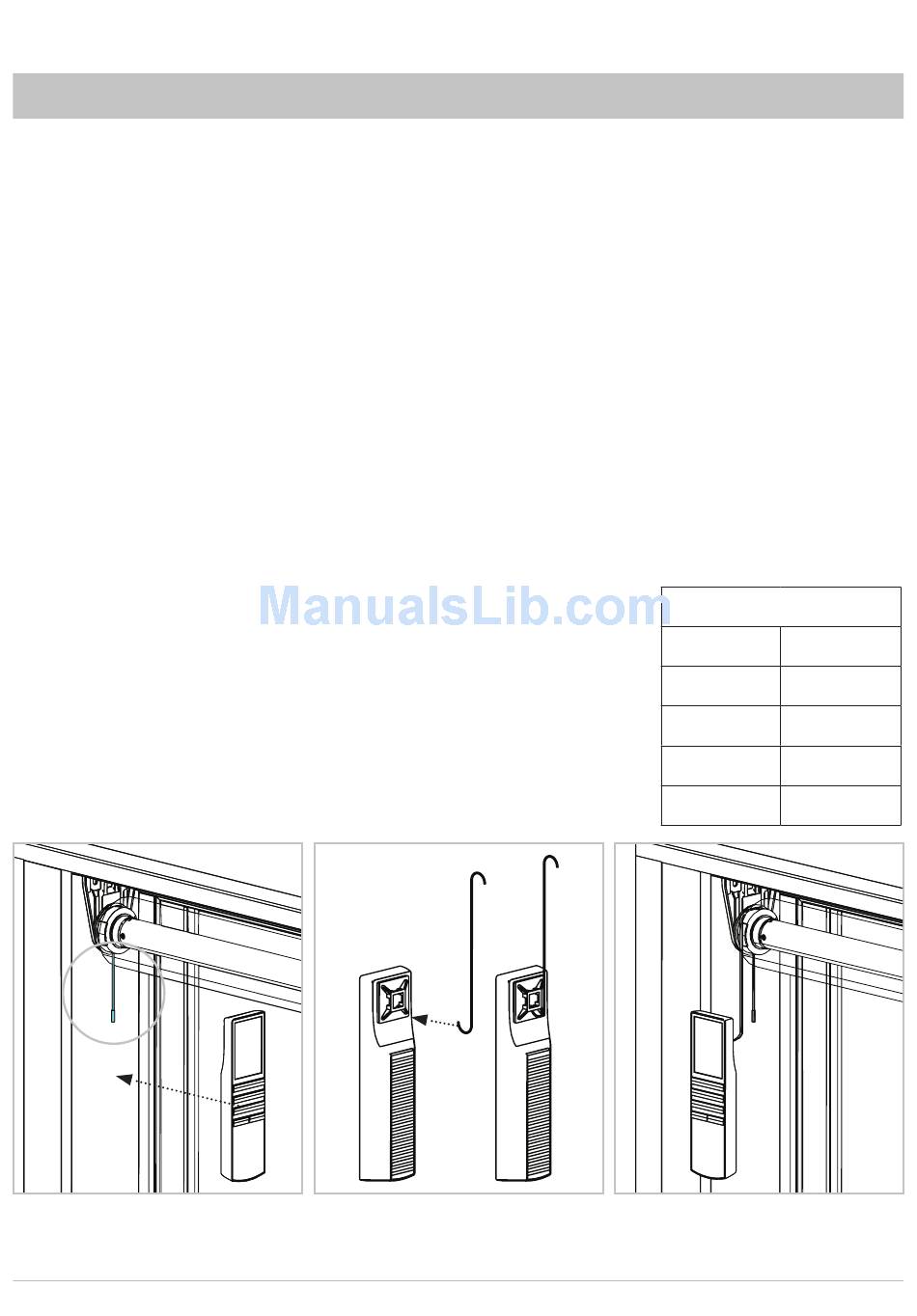

IMPORTANT: Keep Diagnostic Tool next to the motor antenna.
OPTIONAL: Use wire to attach Diagnostic Remote in place next to motor antenna (wire not supplied).
IMPORTANT: Ensure shade can rotate without interference.
14 | Automate Programming Instructions | MT02-0101-072001
™
MTRF-WS-1C
MTRF-WS-2C
MTRF-WS-5C
RSSI EVALUATION
-120 dBm BAD
-110 dBm MINIMUM
-100 dBm OK
-80 dBm BETTER
-60 dBm BEST
