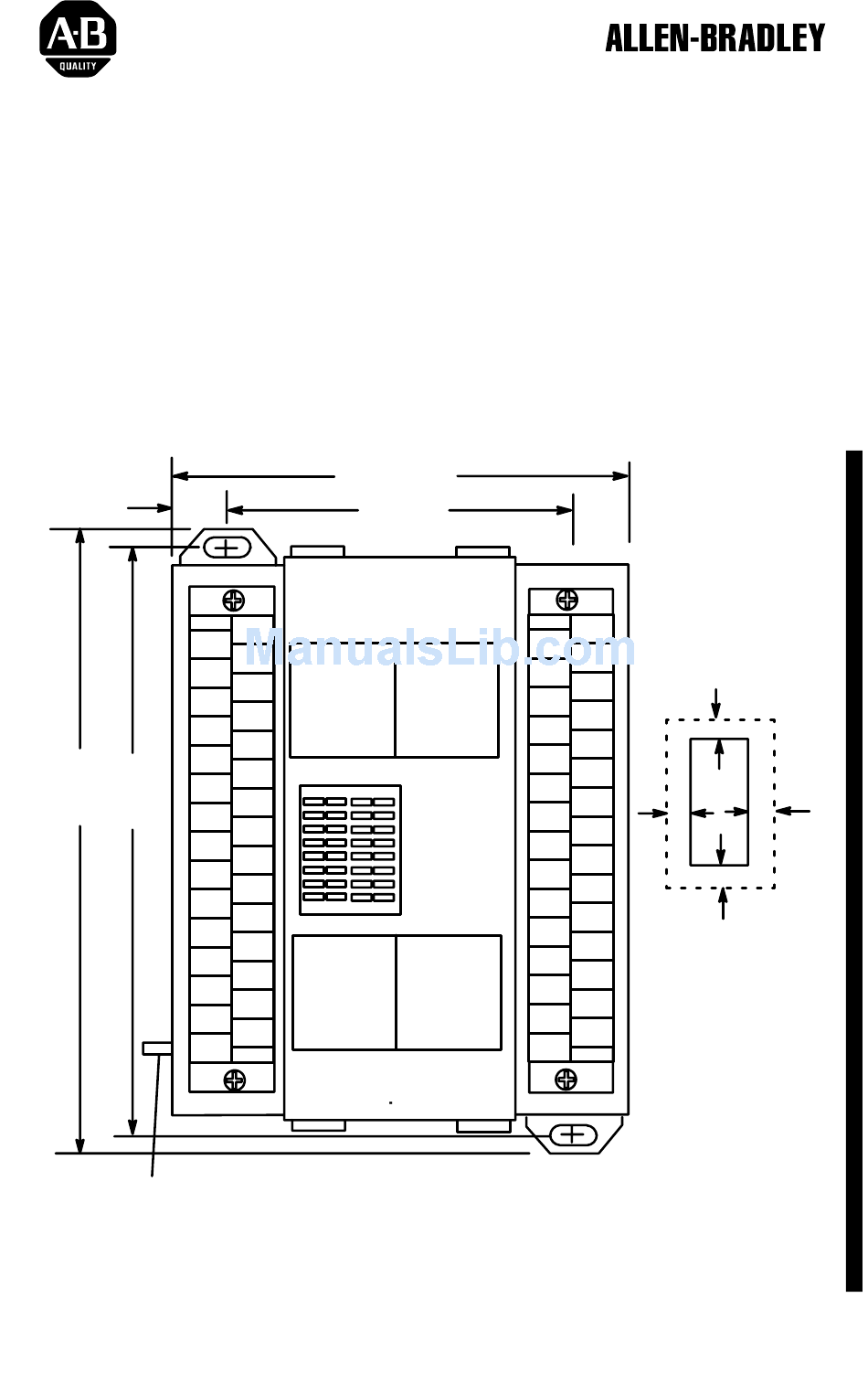

32 Input AC Block I/O Module Cat. No. 1791-32A0 Series B Installation Mount the block I/O module in a vertical (recommended) or horizontal position. Allow sufficient room around the block for cooling air to flow through the block module. Refer to Figure 1.
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B Figure 2 Mounting on a DIN Rail DIN Rail A-B Pt. No. 199-DR1 46277-3 EN 50022 (35 x 7.5mm) 1. Hook top of slot over DIN rail. 2. While pressing block against rail, pull down on locking levers.
Page 3
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B Table A Acceptable Wiring Cables for Block I/O Connection Cable Type Remote I/O link Belden 9463 Up to 14AWG (2mm ) stranded with Input and output wiring 3/64 inch (1.2mm) insulation Connect wiring as shown in Figure 4 or Figure 5.
Page 4
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B Figure 5 Wiring Connections with SLC Family Processors (refer to Table B) L2/N CONN USED CONN USED USED USED USED CONN CONN CONN L2/N L2/N in 08 in 08 in 00...
Page 5
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B Table B Wiring Block Designations 1791–32A0 Series B Connector/Terminal Connections Designation Description Left Conn. Right Conn. ac hot Power Power Connections Connections ac neutral Chassis ground Blue wire – RIO Remote I/O...
Page 6
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B Figure 6 Switch Settings SW2–8 Default Switch Not used Settings = 0 SW2–7 Not Used Last I/O Group SW2–6 (PLC-2 only) Not last rack Last rack Processor SW2–5 Restart/Lockout (PRL) Processor Restart Processor Lockout SW2–4...
Page 7
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B 1747-SN 1771-SN PLC–2 PLC–5 PLC–5/250 PLC–3 SW1 Switch Position Rack Rack Rack Rack Rack Rack Number Number Number Number Number Number Rack 0 Rack 1 Rack 1 Not Valid Rack 0...
Page 8
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B 1747-SN 1747-SN 1771-SN 1771-SN PLC–2 PLC–2 PLC–5 PLC–5 PLC–5/250 PLC–5/250 PLC–3 PLC–3 SW1 Switch Position Rack Rack Rack Rack Rack Rack Rack Rack Rack Rack Rack Rack Number Number Number Number...
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B The SLC 500 controllers communicate with the block I/O using an I/O Scanner module (cat. no. 1747-SN series A). Refer to the user manual for the 1747-SN/A Scanner module for more information.
Page 10
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B Indicators COMM COMM STATUS STATUS Indicator Description COMM Communication not established Communication established Flashing Processor in Program mode STATUS Normal Error (hardware or software), block power low Flashing COMM FAIL – communication cable disconnected, 100ms between valid frames, no more than 255 valid frames between valid frames addressed to block, 20ms idle time exceeded.
Page 11
Installation Instructions Block I/O Cat. No. 1791-32A0 Series B 1791-32A0 Specifications Input Specifications Inputs per Block 32 (4 groups of 8) Nominal Input Current 11.0mA Nominal Input Voltage 120V ac On–state Voltage Range 79–132V ac, 47–63Hz Off-state Voltage Maximum On-state Current...
Telex: 43 11 016 1201 South Second Street FAX: (414) 382-4444 Milwaukee, WI 53204 USA With offices in major cities worldwide Publication 1791-5.14 – May 1995 PN 955122–60 Supersedes publication 1791-2.14 – March 1994 Copyright 1995 Allen-Bradley Company, Inc. Printed in USA...
