Klein Tools MM100 Instruction Manual

ENGLISH
ELECtRICAL SpECIFICAtIoNS
DC Voltage Measurement
Range Resolution Accuracy
200mV 0.1mV
2V 0.001V
20V 0.01V ± (0.5% + 3 digits)
200V 0.1V
600V 1V
overload protection: 600V RMS
Input Impedance (Nominal): > 1MΩ.
AC Voltage Measurement
Range Resolution Accuracy
200V 0.1V
± (1.2% + 5 digits)
600V 1V
overload protection: 600V RMS
Frequency: 50 ~ 60Hz
Input Impedance (Nominal): > 1MΩ.
Response: Averaging
DC Current Measurement
Range Resolution Accuracy
200μA 0.1μA
20mA 0.01mA ± (1.0% + 3 digit)
200mA 0.1mA
10A 0.01A ± (3.0% + 5 digits)
overload protection:
mA Input: F250mA / 250V fast fuse
•
10A Input: F10A / 500V fast fuse
•
Max Input Current:
mA Input: 200mA DC / AC RMS
•
10A Input: 10A DC / AC RMS
•
Resistance Measurement
Range Resolution Accuracy
200Ω 0.1Ω
2kΩ 0.001kΩ
20kΩ 0.01kΩ ± (0.8% + 4 digit)
200kΩ 0.1kΩ
2MΩ 0.001MΩ
overload protection: 600V RMS
Battery test
type Resolution test Current
1.5V 0.01V Appx. 15mA
9V 0.01V Appx. 30mA
overload protection: F250mA / 250V fast fuse
Diode test
overload protection test Current open Circuit Voltage
600V RMS Appx. 1mA Appx. 3.0V DC
Continuity test
overload protection open Circuit Voltage
600V RMS Appx. 3.0V
WARRANty
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
StoRAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISpoSAL / RECyCLE
Caution:
This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUStoMER SERVICE
KLEIN tooLS, INC.
450 Bond Street
Lincolnshire, IL 60069
www.kleintools.com
139569T Rev. 11/13 C

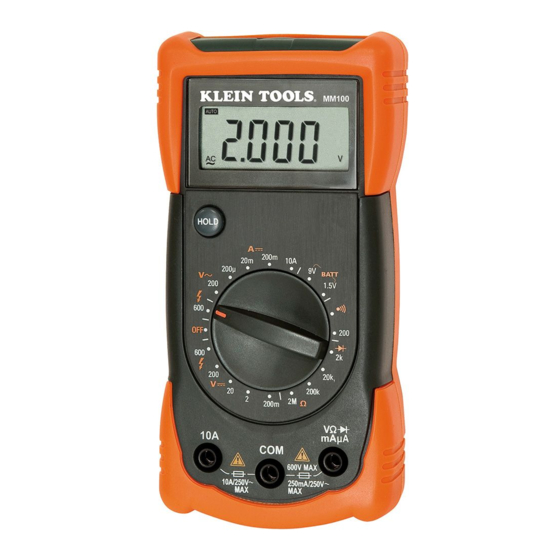

MM100

Instruction Manual

ENGLISH
• 3-1/2 DIGIt
MM100
1999 CoUNt
LCD
• DAtA HoLD
• BAttERy tESt
HOLD
• KICKStAND
200m
20m 10A
200 BATT.
9V
• LEAD HoLDER
200
1.5V
600
200
600
2k
20k
200
20
200k
2
2M
200m
m
COM
CATIII
600V MAX
~
10A/500V ~
250mA/250V
600V
10A
