Klein Tools MM100 Instruction Manual

Instruction Instruction
Manual Manual

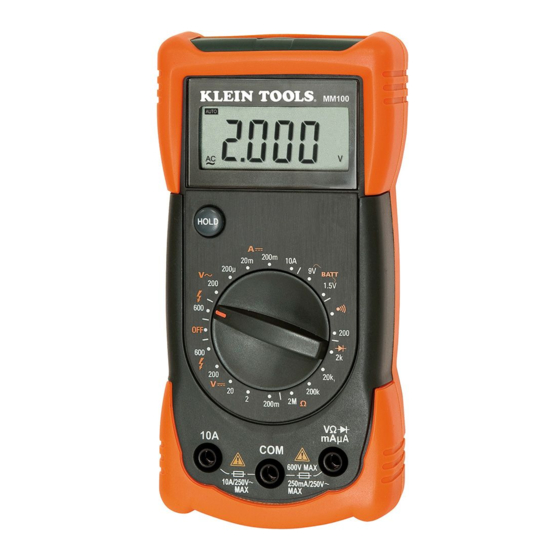

MM100
ENGLISH ENGLISH
• 3-1/2 DIGIT
1999 COUNT
LCD
• KICK STaND
• LEaD HOLDEr
HOLD
• DaTa HOLD
200
200
600
600
200
10A/250V
www.kleintools.com
MM100
200m
20m 10A
BATT.
9V
1.5V
200
2k
20k
20
200k
2
2M
200m
m
COM
600V MAX
~
~
250mA/250V
ENGLISH
MM100
Instruction Manual
GENEraL SPECIFICaTIONS
The Klein Tools MM100 is a manual ranging multimeter. It measures
AC/DC voltage, DC current, and resistance. It can also test batteries,
diodes, and continuity.
• Operating altitude: 2000 meters
• relative Humidity: 75% max operating
• Operating Temperature: 0°C / 32°F to 40°C / 104°F < 75% R.H.
• Storage Temperature: -20°C / -4°F to 60°C / 140°F < 80% R.H.
• accuracy Temperature: 18°C / 64°F to 28°C / 82°F < 75% R.H.
• 0.1*(specified accuracy) / °C
Temperature Coefficient:
• Sampling Frequency: 3 samples per second
• 5.91" x 2.76" x 1.97"
Dimensions:
• Weight: 8.36 oz.
• Accurate for one year
Calibration:
• CaT rating: CAT III 600V
• ETL & cETL standard UL 3111-1 listed
Listing:
• Pollution Degree: 2
• accuracy: ± (% of reading + # of least significant digits)
WarNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring
a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 60V DC,
or 25V AC RMS. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lock out
power before measuring resistance or capacitance.
• Always adhere to local and national safety codes. Use individual
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
