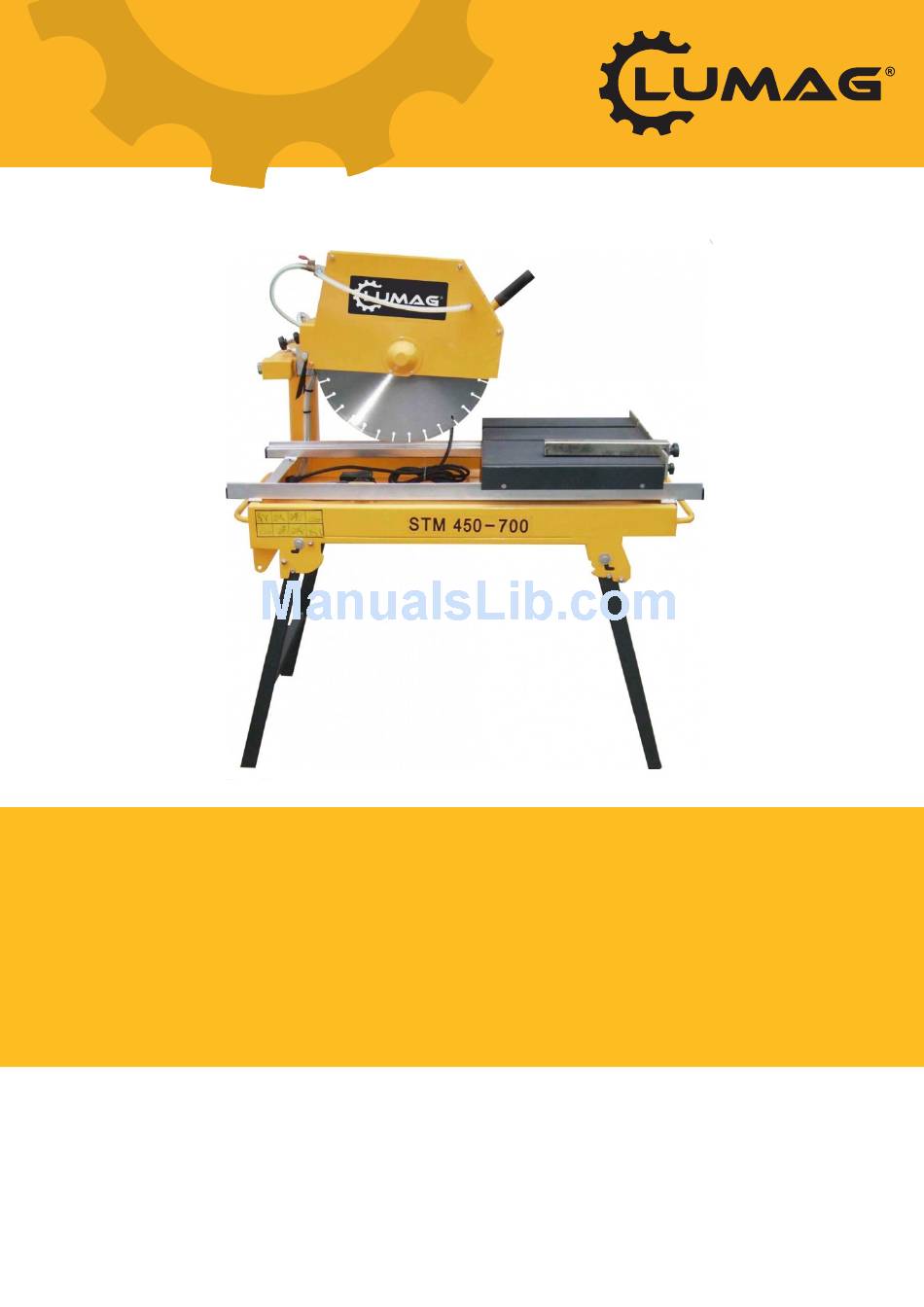

- Page 1 Distribution Limited Electric Masonry Saw Bench Operator’s Manual STM450-700 FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
- Page 3 Attention Know your power tools, for your safety read following instruction manual before operation saw. 1.1 before switch on the machine 1.11 Read the manual carefully to learn the tools applications and limitations as well as the specific to avoid potential hazards 1.12 This is electrical cutting machine, pls make sure keep children and visitors far away before operation 1.13 Keep work area clean.
- Page 4 1.24 Do as following protection pls Wear eye protection, the cutting may bring chippings , to protect your eyes , pls wear the eye protection the cutting may bring dust, to protect your nose and your mouth out of dust, pls wear respirator before operation this is powerful machine, while cutting , it may bring noise , to protect your ear and mind out of noise , pls wear the ear protection wear glove before operation, Do not perform any operation...
-
Page 5: Maintenance
1.24 Put the workplace on the portable-table and rest against the slide rack closely. then cutting it. 1.25 Use clamps or a vise to hold work piece .It is safer than using your hands and free both hands to operate tools. 2 switch on the machine 2.11 Proceed with cutting operation when full speed has been reached. -
Page 6: Specification
3. Specification Rated power 2.2KW Rated voltage(By areas) 240v Frequency(by areas) 50Hz Current consumption Protection class IP54 No-load speed of revolution 2800rpm Max.cutting depth 150mm Max. cutting length 700mm Variable angle of tilt 0-45 Watertank capacity 37.8liter Sound pressure level LPA 72dB(A)—no load Sound power level LWA 85dB(A)—no load... - Page 7 6.The component of the whole machine Picture 1...
- Page 8 Item No. Description Quantity Item No. Description Quantity Hand Lever Front leg Upper fender Gutter Down fender Lock hand lever Ø8mm washer Bush Nut M8 Back leg Bolt M8x100 Rubber cushion B Bolt M8x60 Water pump Switch Nut M6 Spring Deflective Nut Electric wire Revolving shaft...
- Page 9 7.Example Picture 2 picture 3 ----For 45 degree cutting While angle cutting,first loosen the screw like picture 2, and then adjust motor to maximum to 45 degree (picture 3 ),pls make sure and tighten the screw before switch on picture 4 -----Adjust the work table There are 4 location blocks used to limit of the move area of work table,pls make sure that the work table is correctly put on the machine,wrong install may lead to tough...
- Page 10 Picture 5 ------Block cutting Use this location bar , first loosen the end screw , adjust it to the desirable location and then tighten the end screw , move the work table for cutting Picture 6 ------water pump Fix the water pump at this location...
- Page 11 Picture 7 (need to be changed) ------Switch D in green is the switch on E in red is the switch off Picture 8 Picture 9 ----- Change the cutting disc Switch off first and wait till no rolling , screw off the 4 screw from picture 8, use the accessories spanner matched with the machine, put the screw driver through the mid hole, and release the screw, like picture9...
- Page 12 Picture – Picture – Picture 10 – 3 Picture 10 – 4 -----fold up the stander Fold up the stand like picture 10– 2, the effect like picture 10-3,do another stand same way, the last effect like picture 10-4. The whole machine are manufactured according to CE,GS standard.It has passed CE,GS test.The following are CE number: EN 12418:2000, EN ISO 12100-2:2003 EN 55014-1/A2:2002, EN 55014-2/A1:2001...
