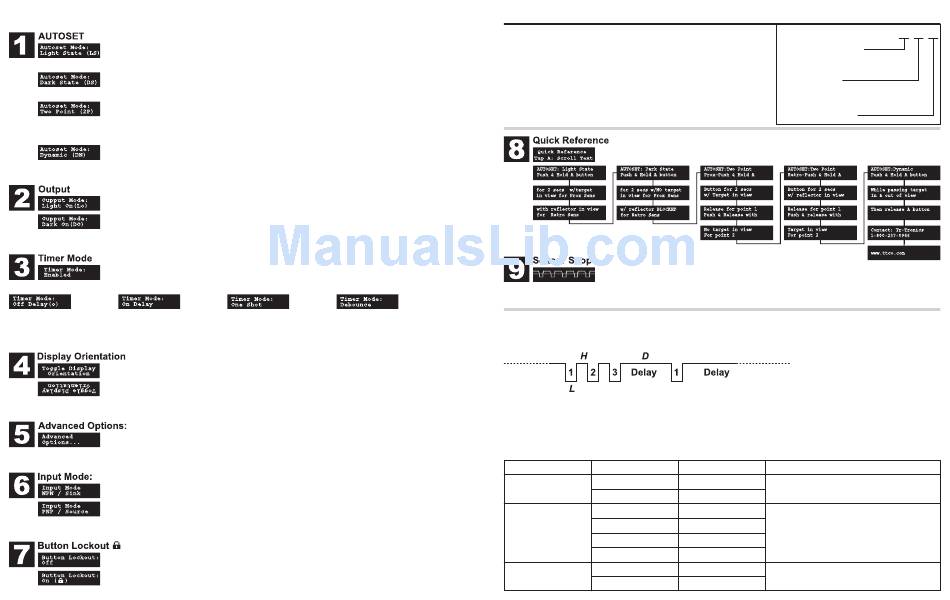

Tri-Tronics SMARTEYE SmartDot Installation Instructions Manual page 2

Press Menu for Detailed Setup
Tap A to move through screens, Tap M for next option
Light State (LS): Push and hold "A" button for Light State AUTOSET. Light State is most useful for
Leading Edge Triggering. And fastest "On" time in Proximity sensing.
Dark State (DS): Push and hold "A" button for Dark State AUTOSET. Dark State is most useful for
Trailing Edge triggering, and Maximum range settings in Proximity sensing modes.
Two-Point (2P): Push and hold "A" button for Two-Point AUTOSET. Release "A" button for first
point AUTOSET. Push and release "A" button for second point AUTOSET. Two-Point is most useful
for spanning between two contrast levels that may not have a great amount of difference. Low contrast
applications work best using this AUTOSET mode.
Dynamic (DN): Push and hold "A" button while passing target in and out of beam then release "A"
button. Dynamic is most useful when automatic set up is necessary due to mechanical constraints.
Tap A to toggle, Tap M for next option
LIght On - Output turns on when received light level exceeds threshold.
Dark On - Output turns on when received light level drops below threshold
Tap A to move through screens, Tap M for next option
To set Timer Duration, tap "A" button to scroll through 1-9, tap "M" button to move through 1000, 100,
10, 1 place holders. Then tap "M" button to complete selection.
Note: Timer must be enabled to have available options displayed
Off Delay: Outputs stay on for On Delay: Outputs turn on
set time after duration of input. when input exceeds set time
Tap A to toggle, Tap M for next option
Tap "A" button to Toggle Orientation. Useful for left or right hand visibility.
Tap "A" button to select Advanced Options. Provides
for NPN or PNP Remote AUTOSET input.
Tap "A" button to change from NPN to PNP Input. Choose NPN if output device in Sinking (0VDC);
Choose PNP if output device is Sourcing (10-30VDC).
Tap "A" button to select Button Lockout. The Button Lockout prevents tampering with AUTOSET and
displays Sensor Locked should AUTOSET be attempted.
To UNLOCK, press and hold "M" for two seconds to enter new options mode. Tap "M" to scroll through to
Button Lockout and tap "A" to unlock.
One Shot: Outputs turn on for Debounce: Outputs are
set time when triggered by stabilized and held in current
input state for duration of time
setting
How To Specify
1. 3.
Select Sensor: Select Cable:
SMARTEYE S D Blank = 6 foot Cable (1.8m)
® TM
MART OT
Laser Sensor C = 6 inch (152mm)
M12 5-Pin Connector
2.
Select Output
Configuration:
V = Short Range
P = Long Range
R = Retroreflective
Tap A to move through screens, Tap M for next option
Tap A to scroll through Quick Reference.
This option allows the operator to visually inspect the current setup for repeatability. The sensor scope
will also reveal any nominal setup issues or sensitivities to label or gap thickness changes.
Momentarily press the minus (--) button to shorten the time between signals. Momentarily press the plus
(+) button to lengthen the time between signals.
Remote Programming
The SmartDot sensor can be configured and adjusted from the Remote AUTOSET line. This is accomplished by sending
a simple sequence of 0VDC pulses. For example: Output Mode: Light On
Each pulse (L) is low for 40ms to 400ms. The idle time (H) between pulses is 40ms to 400ms. The delay (D) between
sets of pulses is .75 seconds to 5 seconds.
NOTE: Default remote input is NPN. See Advanced Options for change to PNP input.
Standard AUTOSET
Hold the Remote AUTOSET line low for at least .75 seconds.
Option/Command Setting
Tap "Up"
Threshold Adjust
Tap "Down"
Light State
Dark State
AUTOSET Mode
Two-Point
Dynamic
Light On
Output Mode
Dark On
Example:
SMARTEYE ® S D
MART OT
Laser Sensor
V = Short Range
P = Long Range
R = Retroreflective
Blank = 6 foot Cable (1.8m)
C = M12 Connector
Pulse Sequence Notes
1 - 1 - #
# is the number of adjustments
from 1 to 8
1 - 2 - #
2 - 1
2 - 2
Note: Changes the AUTOSET mode
used by the next AUTOSET
2 - 3
2 - 4
3 - 1
(auto mimics xm-1)
3 - 2
SL P C
TM
