Instruction Manual 7" LED Digital Color Rear View Monitor with RCA Connections RVS-6137-RCA Rear View Safety, Inc. © 2018... - Page 2 Warranty......14 D i s c l a i m e r......1 5 Rear View Safety...

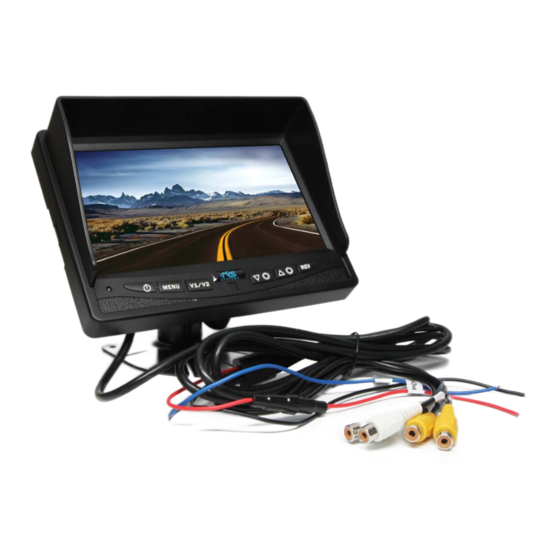

- Page 3 With this manual you will be able to properly install and operate this item. One of our keystone monitors, the RVS-6137-RCA is a high quality 7" LED Digital Panel display and is equipped with auto- dimming and a built-in speaker.
- Page 4 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 5 IMPORTANT USAGE WARNING The Rear View Camera System is designed to help the driver safely detect people and/or objects helping to avoid damage or injury. However, you the driver, must use it properly. Use of this system is not a substitute for safe, proper or legal driving. Never back up while looking at the monitor alone.
- Page 6 Distractions Do not install the monitor where it may obstruct drivers view or obstruct an air bag device. Obstructions Dropping the unit may cause possible mechanical failure. Dropping Unit Rear View Safety...
- Page 7 CABLE INSTALLATION Step 1: Be sure to position the cable properly. Rear View Safety cables use aircraft grade connectors which means the cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts.
- Page 8 MONITOR DIAGRAM Installation of Installation of U Bracket Flushmount Bracket Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Rear View Safety...
- Page 9 INSTALLING SUNSHIELD Step 1) Put sunshield cover on SUNSHIELD the display. Step 2) Put the monitor with sunshield cover in the back cover (only for embedded MONITOR monitor) SPLITTING BACK COVER SUNSHIELD MONITOR Hold monitor with 2 hands and detach with fingers, as indicated by arrows.
- Page 10 INSTALLING MONITOR Monitor Camera (Sold Separately) Power Power Back Yellow to Video 2 Video 1 Video 2 Audio 1 Audio 2 Rear View Safety...
- Page 11 MONITOR OPERATIONS DOWN CAMERA SELECTION ARROW MENU/ SELECTION ARROW BUTTON ROTATE IMAGE POWER (Exit in Menu ON/OFF Mode) NAVIGATING MENU MENU DESCRIPTIONS • "Brightness" "Contrast "Saturation" "Sharpness": adjust image properties • Picture Adjust: Stretch image horizontally (right/left and left/right) • Turn: Toggle between mirror/normal image on each individual channel •...
- Page 12 • Verify camera is connected to cable on Screen • Connect known working camera & cable to monitor • Verify Blue trigger is receiving power No Audio • Verify chosen camera has audio from Camera • Verify volume setting Rear View Safety...
- Page 13 MONITOR SPECIFICATIONS Type LED Digital Panel Screen Size 7" Dot Resolution 800 X 3 (RGB) X 480 Display Format 16:09 Contrast 500:01 Display Brightness 400 CD/m² Up: 50° / Down: 60° Viewing Angle Left: 70° / Right: 70° Video Input 2 Channels Video Source 1VP-P, 75Ω...
- Page 14 OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
- Page 15 FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN...
- Page 16 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE.
