E430x Series PDA User Manual (V1.0) Notes: All screens in this guide are simulated. Actual displays may be different. Depend on the different software version on your E430x, You may get different screens with same tasks. Unless specified otherwise, all instructions to perform tasks in this guide assume that you are starting from the home screen.
Page 2
Winmate or its affiliates have been advised of the possibility of such damages. And in no event shall the total liability of Winmate or its affiliates exceed the amount received from you, regardless of the legal theory under which the cause of action is brought.
Page 3

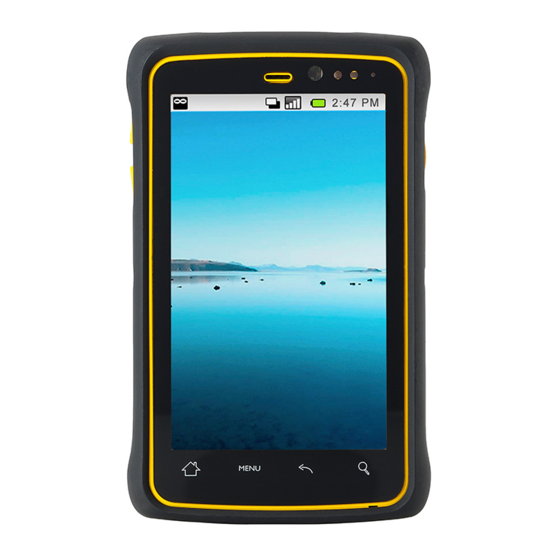

E430x Outlook Front View 2M Pixels 2M Pixels We We We Webcam bcam 2M Pixels 2M Pixels bcam bcam Proximity Proximity & & & & Light Sensor Light Sensor Proximity Proximity Light Sensor Light Sensor Earpiece Earpiece Earpiece Earpiece 3.5 mm 3.5 mm 3.5 mm 3.5 mm...
Page 4
Back View LED Flash Flash Flash Flash 5M Pixels Cam 5M Pixels Camera era era era 5M Pixels Cam 5M Pixels Cam...
ONTENTS NDEX Set up & Go ................1 Power On/Off ................5 Touch Screen and keys............... 6 Home Screen & Status ............. 11 Set up Language ..............15 Set up Date & Time ..............15 Internet Connection ..............16 Bluetooth................. 20 App Menu................
& G ET UP Before you remove the back cover, make sure the E430x is power off. 1. Make the E430x facing down, and then unscrew the screws of E430x. 2. Gently pull E430x out of its back cover. 3. Pull the plastic strap, and then remove the battery.
Page 7
4. Insert the SIM card (with its gold contacts facing down and cut-off corner facing out) all the way into the SIM card slot. Caution! Please make sure you have removed both the battery and USB cable while inserting SIM card. 5.
Page 8
6. Reinsert the battery. 7. Fix the back cover with screws.
Page 9
8. Use the bundled power adapter and USB cable to charge E430x for 4hrs. Note: This product uses a non-removable battery. The battery should only be removed when you want to changed SD card or SIM card.
OWER To turn on your E430x: Press and hold Power button about 1 second. You can feel a slight vibration when your E430x series PDA is turned on. Drag the from left to right to un-lock the screen. To turn off your E430x: Press and hold Power button till the following window show up.
OUCH CREEN AND KEYS Display & Touch Screen On/Off To save battery power, press the Power button to have the display & touch screen off and to force your E430x enter sleep mode. You can also have your E430x goes to sleep automatically by touching: >...
Page 12
Adjust Screen Brightness Find it: > Settings > Display Settings > Brightness Here you can see a brightness adjustment bar. Drag the slider to left to decrease or to right to increase the screen brightness. Press OK to finish your settings. You can also have your E430x adjust its display brightness automatically by tapping on Automatic Brightness above the brightness adjustment bar.
Page 13
Touch Tips One Touch: Choose an icon or option Press and Hold: Show options Drag: Scroll or move slowly Flick: Scroll or move quickly Zoom: Pinch the screen with two fingers apart or together to zoom in or out on Google Maps™, web pages or photos. Touch &...
Page 14
Capacitive Touch Keys Home Menu Back Search Touch to close any menu or app and return to home screen. Or touch and hold on home screen to find the latest apps used. Touch to open menu options. Touch to return to the previous page. Touch for text search, or touch and hold for voice search.
Page 15
Power Key Menu Press and hold Power Button for 3 seconds to open the power key menu, where you can: Mute the PDA from “Silent mode” Turn off all wireless functions, including the call function, data services, Bluetooth, and Wi-Fi from “Airplane mode” Turn off your E430x from “Power off”...
& S CREEN TATUS Home Screen Home screen gives you all your latest information in one place. It is the screen you can see when you turn on E430x or touch from a menu. Home screen also provides a space where you can personalize your E430x by setting different wallpaper or having shortcuts of the apps frequently used.
Page 17
Add to Home Screen You can personalize your Home screen by changing wallpaper or adding some frequently-used shortcuts and widgets. To change your wall paper: Touch and hold home screen to open the Add to Home Screen list. Tap Wallpapers and select a wallpaper source. Select the wallpaper you like, and touch Set Wallpaper to finish your settings.
Page 18
You can also add a shortcut from the App Menu. Touch to open the App list. Find the App you are going to set, then touch and hold the App icon. The display will return to home screen with the new shortcut you just set. To remove a shortcut from Home screen: Touch and hold the shortcut icon on your home screen.
Page 19
Status & Notifications Icons at the top of the screen notify you about messages and E430x status. To view your notifications, touch the status bar and drag it down. Touch a notification to see details. The table shows different icon’s meanings.
ET UP ANGUAGE Your E430x series PDA support diverse languages. You can find a language list from: Find it: > Settings > Language & Keyboard > Select Language Select the language you like. The screen will return to Language & Keyboard Settings menu. The language setting is done.
NTERNET ONNECTION Your E430x can access the Internet with WiFi connection or Data Connection. WiFi Connection: To turn on WiFi function and scan available networks: Find it: > Settings > Wireless & Networks > WiFi. When your E430x is connected to the network, the Wi-Fi connected indicator appears in the status bar.
Page 22
Note: To extend battery life, turn off Wi-Fi power when not in use. Note: Wi-Fi is mostly used in indoor environment. If you often need to access the Internet outdoor, we strongly recommend that you choose the E430x series model with 3G function. Data Connection: To turn on 3G function: Find it:...
Page 23
Share your internet access to other Devices You can share your E430x PDA’s mobile data connection via USB or as a portable Wi-Fi hotspot to provide convenient Internet access to other Wi-Fi enabled devices. Caution! This application significantly impacts battery life. You may want to run this application with the charger connected.
Page 24
When your Wi-Fi hotspot is active, other Wi-Fi enabled devices can go through your E430x PDA to access the internet by entering the hotspot's SSID, selecting a Security type, and entering the correct password. Note: When your PDA is serving as a WiFi hotspot, you can’t use your PDA’s applications to access the internet via its WiFi connection...
LUETOOTH To turn on Bluetooth function and scan available devices: Find it: > Settings > Wireless & Networks > Bluetooth To set up your Bluetooth connection: Find it: > Settings > Wireless & Networks > Bluetooth settings. Make sure your Bluetooth function is turned on. If not, turn on it by tapping Bluetooth.
Page 26
If necessary, touch OK, or enter the device passkey (like 0000) to connect to the device. When the device is connected, the Bluetooth connected indicator appears in the status bar. Note: Using a mobile device or accessory while driving may cause distraction and may be illegal.
Tap on to enter App Menu and see all available apps. When the App list is longer than one page, just swipe up/down to see more items. Recent Apps Your E430x remembers the Apps that you used most recently. From the home screen, touch and hold to show the most recent apps used.
Page 28
Manage & Restore Apps From the home screen, touch > Manage apps. To uninstall the Apps you have downloaded: Switch to Downloaded tab Touch the app you are going to uninstall Touch Uninstall to finish your settings.
PDATE You can update the latest E430x software using your computer: On your computer, go to www.winmate.com.tw, find your E430x product webpage, and check the "Download Center" links. If an update is available, follow the installation instructions listed as below.
EXT ENTRY Touchscreen keypad You can open a keypad on your screen by touching a text box. To close the keypad, touch Delete Shift Enter Space Open a keypad for numbers & symbols. Text input settings Find it: > Settings > Language & keyboard To edit your dictionary, touch User dictionary.
ESSAGING To create a new message: Find it: > SMS/MMS> Compose new message Touch here to search a contact to add people from your contact list, Touch here to enter texts or touch To and type keyword to search a known contact.
AMERA E430x Series PDA supports dual built-in cameras which can be used for taking pictures or recording video clips. Face Camera at the front side: 2 Mega-Pixel Webcam Main Camera at the rear side: LED Flash 5 Mega-Pixel Camera Note: Your E430x PDA built-in camera supports rotation function. When you turn your E430x PDA to 90 degree (left or right), the preview screen display will rotate accordingly.
Page 33
Take Photos To take photos, open the Camera App: Find it: > Camera Caution! Before opening the Camera App, please make sure: The Micro SD card has been inserted. Your E430x series PDA is not connecting with a USB cable. Evaluated available Previous saved pictures capacity for photos...
Page 34
to change different photo effects. You can tell the difference from your preview screen. You can also change the photo’s focus by touch the preview screen. The green square will move with your touch and mark the focus of this picture. There are some advanced settings available under photo mode: Zoom Flash...
Well use the onscreen controls helps record great video clips. You can tap to switch from video mode to photo mode. To switch back to video mode, tap under photo mode. to switch between the rear main camera and front webcam. to turn on / off the LED light while recording videos: LED off LED On...
