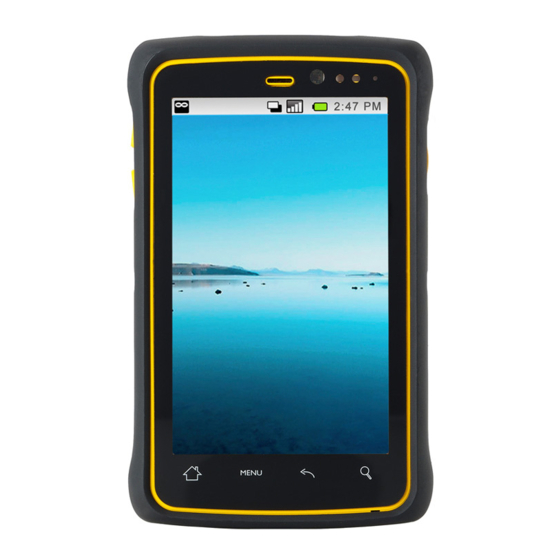

- Page 1 Winmate E430M2 Series PDA User Guide Version 1.00 Revision A June 2012...
-
Page 2: Table Of Contents
RF Exposure Information ..................3 Battery Safety Information ..................4 Electrostatic Discharge ..................4 Driving ........................4 Chapter 2: About Winmate E430M2 Series About E430M2 ..................... 5 Features ....................... 5 Getting started ....................... 6 Sim Card and SD Card Installation ..............7 Battery Installation ................... - Page 3 Winmate E430M2 Series PDA User Guide Change the keyboard language ..............20 USB Debugging Setting ..................20 Using the Phone ....................21 To Make a Phone Call ................... 21 To Make a Phone Call Using Contact List ............. 22 Answering or Declining Calls ................. 22 Messaging ......................
-
Page 4: Chapter 1: Safety Information
User Guide Chapter 1: Safety Information Exposure to Radio Use E430M2 series is equipped with Bluetooth, WI-Fi and Cellular modem radio. In some situation or area, user may be required to turn off the radios. For example; User’s needs to turn the phone OFF when in an area posted “TURN OFF RADIO SIGNAL.”... -
Page 5: Battery Safety Information
If battery fluid leaks onto the skin or cloth, wash the affected area with clean water Please contact your current Winmate distributor or local Winmate vendor if you suspect damage to your PDA or battery for inspection and reparation. Electrostatic Discharge... -
Page 6: Chapter 2: About Winmate E430M2 Series
Other new era tech includes dual cameras, a micro-SD card slot, 802.11 a/b/g/n Wi-Fi, Built in GPS and 3G mobile broadband. Features This section provides the features of the E430M2 series and describes how to set this device for the first time... -
Page 7: Getting Started
Vibration mode – to vibrate all the notifications across the entire device Normal mode – Return to the user setting mode Use to trigger the barcode reader for E430M2 series with Function Key barcode reader (differs by product type) -
Page 8: Sim Card And Sd Card Installation
Winmate E430M2 Series PDA User Guide Sim Card and SD Card Installation To Install the SIM Card and SD Card: 1. Place the E430M2 facing down and then locate the screws on the backside 2. Unscrew the screws and gently pull the back cover 3. -
Page 9: Battery Installation
Winmate E430M2 Series PDA User Guide 8. Pick and raise the SD card holder up in upright position and then put the SD Card into the socket 9. Close the SIM card holder and push it into lock position until there is a click... -
Page 10: Turning On And Off The Device
Winmate E430M2 Series PDA User Guide This product uses a non-removable battery. The battery should only be removed when you want to change the SD Card or SIM Card To charge the battery using Docking: 1. Connect the docking to power, Insert the E430M2 into the slot to begin charging 2. -
Page 11: Turning The E430M2 Off
Winmate E430M2 Series PDA User Guide 1. To turn off the device, press and hold the power button until the phone options menu appears, tap the Power off. 2. User can also use the Phone options menu to put the device into silent or airplane mode, see features table. -
Page 12: Chapter 3: Using Android 2.3.4 Operating System
Winmate E430M2 Series PDA User Guide Chapter 3: Using Android 4.1 Operating System Wake Up the Phone If you do not use the phone for a while, the screen dims and then darkens to conserve the battery. To wake up the phone: 1. -
Page 13: Personalizing Home Screen
Winmate E430M2 Series PDA User Guide Status Bar shows the time, signal strength, battery status, and other information. It also display notification icons APPS which is applications that user can use directly on the Home screen Launcher icon to open the launcher and view... -
Page 14: View Other Parts Of The Home Screen
Winmate E430M2 Series PDA User Guide Move a APPS (Camera) to Home screen To remove an item from the Home screen: 1. Tap and hold the item you want to remove. The launcher icon will change into a Remove icon 2. - Page 15 Winmate E430M2 Series PDA User Guide 2. Tap the launcher icon to view the entire APPS and Widgets of the device Status and Notification Icons The status bar appears at the top of every screen. On the left are notification icons and on the right are status icons, along with the current time.
-
Page 16: Status And Notification Icons
Winmate E430M2 Series PDA User Guide Notification Icon The following icons indicate that you have received notification Using the On-Screen Keyboard User will be able to enter text using the On-Screen Keyboard. Some applications will launch the keyboard automatically. In others, user needs to touch a text field where user wants to... -
Page 17: Using The Menu
Winmate E430M2 Series PDA User Guide Enter Text by Typing 1. Open a text field, in this example we used ToDo to create a note The On-Screen Keyboard opens. Tap a suggestion to enter it in place of the underlined word in the text box. -
Page 18: Editing Text
Winmate E430M2 Series PDA User Guide 7. To close the On-Screen keyboard, tap the back button Editing Text To select text 1. Double Tap the text you want to select 2. Tap to select all the sentences in the menu that appears, the selected text is highlighted in blue, with a tab at each end of the selected word 3. -
Page 19: Display Setting
Winmate E430M2 Series PDA User Guide Display Setting Use the display settings to configure brightness and other screen settings. 1. Tap and then tap System settings 2. Tap Display and in the DEVICE part there are: Brightness – for adjusting the brightness of the screen. -
Page 20: Audio Profile Setting
Winmate E430M2 Series PDA User Guide 2. Tap Audio profiles and then user can select General, Silent, Meeting or Outdoor profile. Adjust Volume 1. Press the volume keys to change the ring volume (On Home screen) or earpiece volume (during a call) Language &... -
Page 21: Change The Keyboard Language
Winmate E430M2 Series PDA User Guide Change the keyboard language The current keyboard language is displayed on the Space key and user can switch languages. 1. Tap and hold the space key 2. Without lifting the finger, slide it to the left or right until the language you want to use appears in the center of the small window above the Space Key 3. -
Page 22: Using The Phone
Winmate E430M2 Series PDA User Guide Using the Phone User can make a phone call by dialing a phone number; touch a number in the contact list, on the web pages or other places. To Make a Phone Call 1. Please make sure the SIM card is properly installed 2. -
Page 23: Answering Or Declining Calls
Winmate E430M2 Series PDA User Guide 2. Tap the Phone icon at the bottom of the Home screen and then tap the Contacts 3. Select the required contact and then tap it to call Answering or Declining Calls When user receive a phone call, the incoming call screen opens with the caller ID and any additional information about the caller that you have entered in contacts. -
Page 24: Open And Respond To Text Message
Winmate E430M2 Series PDA User Guide Open and Respond to Text Message If you are working in a message window, message that you receive are display in it. Otherwise, you receive a new message notification and a new message icon appears in the status bar. -
Page 25: Chapter 4: Connecting To Network And Devices
Winmate E430M2 Series PDA User Guide Chapter 4: Connecting to Network and Devices Connecting to Mobile Networks When users assemble their PDA with a SIM card from service provider, their phone is configured to use their provider networks for voice calls and for transmitting data. -
Page 26: Add A Wi-Fi Networks
Winmate E430M2 Series PDA User Guide Add a Wi-Fi Network 1. Turn on Wi-Fi, in the Wi-Fi settings screen, tap + icon (at the bottom right of the list of discovered networks) 2. Input the SSID (name) of the network, if the network is secured, tap the security menu and then tap the type of security deployed on the network. -
Page 27: Connecting To Bluetooth Devices
Winmate E430M2 Series PDA User Guide 4. Tap the ID of the other device in the list in Settings to pair them Disconnect from a Bluetooth device 1. Tap the device in the Bluetooth settings screen 2. Tap OK to confirm that you want to disconnect... - Page 28 Winmate E430M2 Series PDA User Guide To disconnect your PDA from the computer: 1. Open the Notifications panel and tap USB connected 2. Tap Turn off USB storage in the screen that opens...
-
Page 29: Chapter 5: Using The Camera
Winmate E430M2 Series PDA User Guide Chapter 5: Using the Camera Winmate E430M2 equipped with 5 MP on the rear side and 2 MP on the front side, which user can use to capture photos or video Open Camera 1. Tap the launcher and then tap Camera Camera opens in Portrait mode, ready to take a picture or shoot a video Make sure the protective lens cover is clean before taking pictures. -
Page 30: Shoot A Video
Winmate E430M2 Series PDA User Guide 2. The preview switches to show the scene viewed from the camera you selected. Not all features (such as flash) are available for the front camera Viewing pictures 1. After taking a photo, a thumbnail of the picture is shown on the corner of the capture screen. -
Page 31: Chapter 6: Accessories
Winmate E430M2 Series PDA User Guide Chapter 6: Accessories E430M2 Standard Accessories Standard Accessory Part Number Details 922Z005W05V1 USA 922Z005W05V4 EU Input : AC 100-240V 50/60 Hz Universal USB Adapter 922Z005W05V2 UK Output : 5V-1A 922Z005W05V3 AUS Provides power to the E430T and...
