- Page 1 UC-7112-LX Plus/UC-7112/UC-7110 Hardware User’s Manual Edition 7.0, February 2017 www.moxa.com/product © 2017 Moxa Inc. All rights reserved.
- Page 2 UC-7112-LX Plus/UC-7112/UC-7110 Hardware User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2017 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................1-1 Overview ............................1-2 Package Checklist ..........................1-2 Product Features ..........................1-3 Product Specifications ......................... 1-3 Hardware Specifications ....................... 1-3 Hardware Block Diagram ........................1-5 Hardware Introduction ........................2-1 Appearance ............................2-2 Dimensions ............................2-2 Panel Views ............................ -
Page 4: Introduction
10/100 Mbps Ethernet ports, two RS-232/422/485 serial ports, and an ARM9 processor. The computers come with Linux pre-installed. In addition, the UC-7112 Plus and UC-7112 have an internal SD socket for storage expansion to offer high performance communication with unlimited storage in a super-compact, palm-size box. -
Page 5: Overview
The built-in NOR Flash ROM (8 MB for UC-7110/7112, 16 MB for UC-7112 Plus) and SDRAM (16 MB for UC-7110/7112, 32 MB for UC-7112 Plus) give you plenty of storage capacity, and the SD socket provides greater flexibility for running various applications. -
Page 6: Product Features
• 2 software-selectable RS-232/422/485 ports • Serial port speed from 50 bps to 921.6 Kbps (non-standard baudrates supported) • SD socket for storage expansion (UC-7112 and UC-7112 Plus only) • Built-in RTC, Buzzer, WDT • Built-in Linux Kernel 2.6 platform •... - Page 7 Automatic Reboot Trigger: Built-in WDT (watchdog timer) MTBF (mean time between failures): • UC-7110: 149,414 hrs • UC-7112: 148,980 hrs Warranty Warranty Period: 5 years Note: The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In particular, the wide temperature specification does not apply to accessories such as the power adaptor and cables.
-
Page 8: Hardware Block Diagram
UC-7112-LX Plus/UC-7112/UC-7110 Hardware Introduction Hardware Block Diagram UC-7110/7112-LX UC-7112-LX Plus... -
Page 9: Hardware Introduction
Hardware Introduction The UC-7110, UC-7112, and UC-7112 Plus are compact, rugged embedded computers designed for industrial applications. The LED indicators on the computers’ outer casing help you monitor their performance, and assist in identifying trouble spots. The hardware platform is both reliable and stable, and is an ideal solution for adapting to custom applications. -
Page 10: Appearance

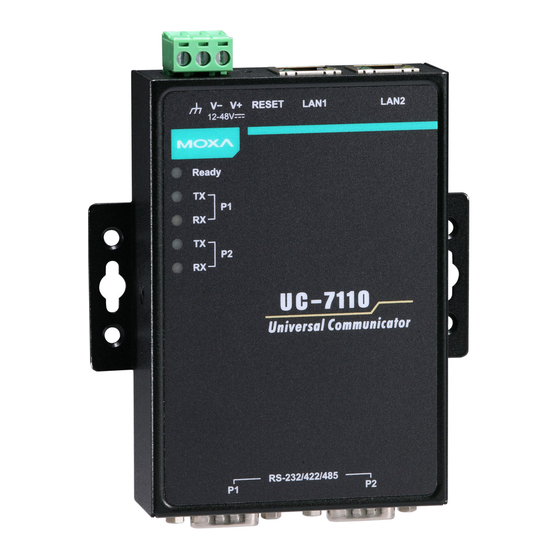

UC-7112-LX Plus/UC-7112/UC-7110 Hardware Hardware Introduction Appearance The front view of the UC-7112 is shown in the following figure. The UC-7110 and UC-7112 Plus look the same, except that the UC-7110 does not have an internal SD slot. Dimensions The dimensions of the UC-7110, UC-7112, and UC-7112 Plus are exactly the same. -
Page 11: Panel Views
UC-7112-LX Plus/UC-7112/UC-7110 Hardware Hardware Introduction Panel Views LED Indicators The following table is the key to the five LED indicators located on the front panel of the UC-71xx embedded computers. LED Name LED Color LED Function Ready Green Power is on and functioning normally. -
Page 12: Internal Sd Socket
The UC-7112 and UC-7112 Plus have an internal SD socket for storage expansion that accepts Secure Digital (SDHC) SD 2.0 memory cards, for up to 16 GB of additional memory in the UC-7112 Plus, or 32 GB in the UC-7112. -
Page 13: Hardware Connection Description
Hardware Connection Description In this chapter, we show how to connect the UC-71xx embedded computer to the network and to various devices. The following topics are covered in this chapter: Wiring Requirements Connecting the Power Grounding the UC-71xx Embedded Computers ... -
Page 14: Wiring Requirements
UC-7112-LX Plus/UC-7112/UC-7110 Hardware Hardware Connection Description Wiring Requirements This section explains how to connect the UC-71xx embedded computers to serial devices. You should heed the following safety precautions before installing any electronic device: • Use separate paths for power wiring and wiring for devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. -
Page 15: Connecting Data Transmission Cables
UC-7112-LX Plus/UC-7112/UC-7110 Hardware Hardware Connection Description Connecting Data Transmission Cables This section describes how to connect the UC-71xx to the network, to serial devices, and to a serial COM terminal. Connecting to the Network Connect one end of the Ethernet cable to the UC-71xx’s 10/100M Ethernet port, and the other end of the cable to the Ethernet network. -
Page 16: Serial Console Port
Signal Installing a Secure Digital (SD) Memory Card To install an SD memory for the UC-7112/7112 Plus, follow these steps. Remove two screws on each side of the computer; also remove the four screws beside the serial ports on the bottom panel of the computer. Remove the outer cover of the computer.
