- Page 1 UC-7400 Hardware User’s Manual First Edition, March 2006 www.moxa.com/product Moxa Systems Co., Ltd. Tel: +886-2-8919-1711 Fax: +886-2-8919-1722 Web: www.moxa.com MOXA Technical Support Worldwide: support@moxa.com.tw The Americas support@moxa.com...
-
Page 2: Copyright Notice
Information provided in this manual is intended to be accurate and reliable. However, Moxa Technologies assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. -
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ....................1-1 Overview..........................1-2 Package Checklist....................... 1-2 Product Features ......................1-3 Product Hardware Specifications ................1-4 Hardware Introduction ......................1-5 Appearance and Dimensions ..................1-5 Hardware Block Diagram..................1-12 LED Indicators ......................1-13 Reset-type Buttons ....................1-13 Real Time Clock....................... -
Page 4: Chapter 1 Introduction

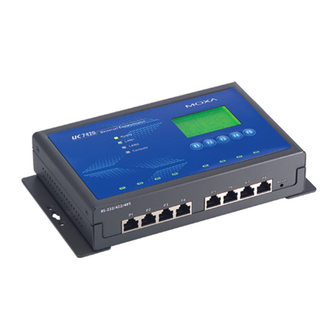

Introduction Chapter 1 Thank you for purchasing the MOXA UC-7400 RISC-based ready-to-run embedded computer. The product’s features include eight RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet ports, 8 digital input channels and 8 digital output channels, a PCMCIA interface for wireless LAN communication, and CompactFlash and USB ports for mass storage disk expansion. -
Page 5: Overview
UC-7400 Hardware User’s Manual Introduction Overview The MOXA UC-7400 Series (herein after referred to as UC-7400) includes UC-7420, UC-7410, UC-7408, and UC-7402. These RISC-based ready-to-run embedded computers are ideal for embedded applications. UC-7400 series feature 8 RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet ports, 8 digital input channels and 8 digital output channels, a PCMCIA interface for wireless LAN communication, a CompactFlash slot for flash disk expansion, and USB ports for adding additional memory (such as a USB Flash disk). -
Page 6: Product Features
UC-7400 Hardware User’s Manual Introduction Product Features Intel XScale IXP-422 266 MHz Processor On-board 128 MB RAM, 32 MB Flash ROM Eight RS-232/422/485 serial ports (UC-7420/7410/7408 only) 8 digital input channels and 8 digital output channels (UC-7408 only) Dual 10/100 Mbps Ethernet USB 2.0 host for mass storage devices (UC-7420 only) PCMCIA, wireless LAN expansion (supports 802.11b/802.11g) CompactFlash for storage expansion (UC-7420/7408/7402 only) -
Page 7: Product Hardware Specifications
UC-7400 Hardware User’s Manual Introduction Product Hardware Specifications UC-7420 UC-7410 UC-7408 UC-7402 Intel Xscale Intel Xscale Intel Xscale Intel Xscale IXP-422 266MHz IXP-422 266MHz IXP-422 266MHz IXP-422 266MHz 128 MB 128 MB 128 MB 128 MB 32 MB 32 MB 32 MB 32 MB Flash... -
Page 8: Hardware Introduction
UC-7400 Hardware User’s Manual Introduction Hardware Introduction Appearance and Dimensions Appearance UC-7420 Rear View 12-48 VDC Power Input 10/100 Mbps Ethernet x 2 DC 12-48V PCMCIA LAN1 LAN2 Console USB 2.0 Host x 2, A Type Connector V+ V- USB 1.1 Client x 1, CF x 1 miniB Connector RS-232... - Page 9 UC-7400 Hardware User’s Manual Introduction UC-7410 Rear View 12-48 VDC Power Input 10/100 Mbps Ethernet x 2 DC 12-48V LAN1 LAN2 Console V+ V- USB 1.1 Client x 1, miniB Connector RS-232 PPP/Console UC-7410 Top View Graphics LCM 128 x 64 Dots 5 Buttons UC-7410 Front View RJ45 RS-232/422/485...
- Page 10 UC-7400 Hardware User’s Manual Introduction UC-7408 Rear View 12-48 VDC Power Input 10/100 Mbps Ethernet x 2 DC 12-48V PCMCIA LAN1 LAN2 Console V+ V- USB 1.1 Client x 1, CF x 1 miniB Connector RS-232 PCMCIA x 1 PPP/Console UC-7408 Top View UC-7408 Front View 8-ch Digital Output...
- Page 11 UC-7400 Hardware User’s Manual Introduction UC-7402 Rear View 12-48 VDC Power Input 10/100 Mbps Ethernet x 2 DC 12-48V PCMCIA LAN1 LAN2 Console V+ V- USB 1.1 Client x 1, CF x 1 miniB Connector RS-232 PCMCIA x 1 PPP/Console UC-7402 Top View UC-7402 Front View Reset to...
- Page 12 UC-7400 Hardware User’s Manual Introduction Dimensions UC-7420/7410 197 mm [7.76"]...
- Page 13 UC-7400 Hardware User’s Manual Introduction UC-7408 197 mm [7.76"] 1-10...
- Page 14 UC-7400 Hardware User’s Manual Introduction UC-7402 197 mm [7.76"] 1-11...
-
Page 15: Hardware Block Diagram
UC-7400 Hardware User’s Manual Introduction Hardware Block Diagram The following block diagram shows the layout of UC-7420 internal components. The following block diagram shows the layout of UC-7410 internal components. Ethernet Console LAN2 LAN1 Power Client Power Xscale IXP-422 266 MHz circuit 32 MB Flash PCI Bus... -
Page 16: Led Indicators
UC-7400 Hardware User’s Manual Introduction The following block diagram shows the layout of UC-7408’s internal components. Ethernet PCMCIA & Console LAN2 LAN1 Power CompactFlash Client PCI to cardbus Bridge Power Xscale IXP-422 266 MHz circuit 32 MB Flash PCI Bus 128 MB SDRAM Decoder Moxa UART ASIC... -
Page 17: Real Time Clock
UC-7400 Hardware User’s Manual Introduction Reset Button Pressing the Reset button initiates a hardware reboot. The button plays the same role as a desktop PC’s reset button. In normal use, you should NOT use the Reset Button. You should only use this function if the software is not working properly. -
Page 18: Din-Rail Mounting
UC-7400 Hardware User’s Manual Introduction Figure A: UC-7420/7410 Universal Communicator—Wall Mounting Brackets (bottom view) Figure B: UC-7420/7410 Universal Communicator—Wall Mounting Brackets (top view) DIN-Rail Mounting The aluminum DIN-Rail attachment plate is included with the package. If you need to reattach the DIN-Rail attachment plate to UC-7400, make sure the stiff metal spring is situated towards the top, as shown by the following figures. -
Page 19: Hardware Connection Description
UC-7400 Hardware User’s Manual Introduction Hardware Connection Description This section describes how to connect UC-7420/7410 to serial devices for first time testing purposes. We cover Wiring Requirements, Connecting the Power, Grounding UC-7400, Connecting to the Network, Connecting to a Serial Device, Connecting to the Console Port, PCMCIA, CompactFlash, USB, and DI/DO. -
Page 20: Connecting To The Network
UC-7400 Hardware User’s Manual Introduction ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. SG: The Shielded Ground (sometimes called Protected Ground) contact is the left most contact of the 3-pin power terminal block connector when viewed from the angle shown here. -
Page 21: Connecting To The Console Port
UC-7400 Hardware User’s Manual Introduction Connecting to the Console Port UC-7400’s console port is an 8-pin RJ45 RS-232 port. The port can be used to connect to the console utility from a remote console via a V90 or GPRS modem with PPP protocol. The pin definition is the same as for the serial ports (P1 to P8). -
Page 22: Appendix A Service Information
Service Information Appendix A This appendix shows you how to contact MOXA for information about this and other products, and how to report problems. The following topics are covered in this appendix: MOXA Internet Services Problem Report Form Product Return Procedure... -
Page 23: Moxa Internet Services
UC-7420/7410 User’s Manual Service Information MOXA Internet Services Customer satisfaction is our number one concern, and to ensure that customers receive the full benefit of our products, Moxa Internet Services has been set up to provide technical support, driver updates, product information, and user’s manual updates. The following services are provided E-mail for technical support........support@moxa.com.tw... -
Page 24: Problem Report Form
UC-7420/7410 User’s Manual Service Information Problem Report Form MOXA UC-7400 Series Customer name: Company: Tel: Fax: Email: Date: 1. Moxa Product: UC-7420 UC-7410 UC-7408 UC-7402 2. Serial Number: _________________ Problem Description:Please describe the problem clearly. Include as many details as you can. This will help us reproduce the problem, and expedite the repair of your product. -
Page 25: Product Return Procedure
UC-7420/7410 User’s Manual Service Information Product Return Procedure For product repair, exchange, or refund, the customer must: Provide evidence of original purchase. Obtain a Product Return Agreement (PRA) from the sales representative or dealer. Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter product repair time.
