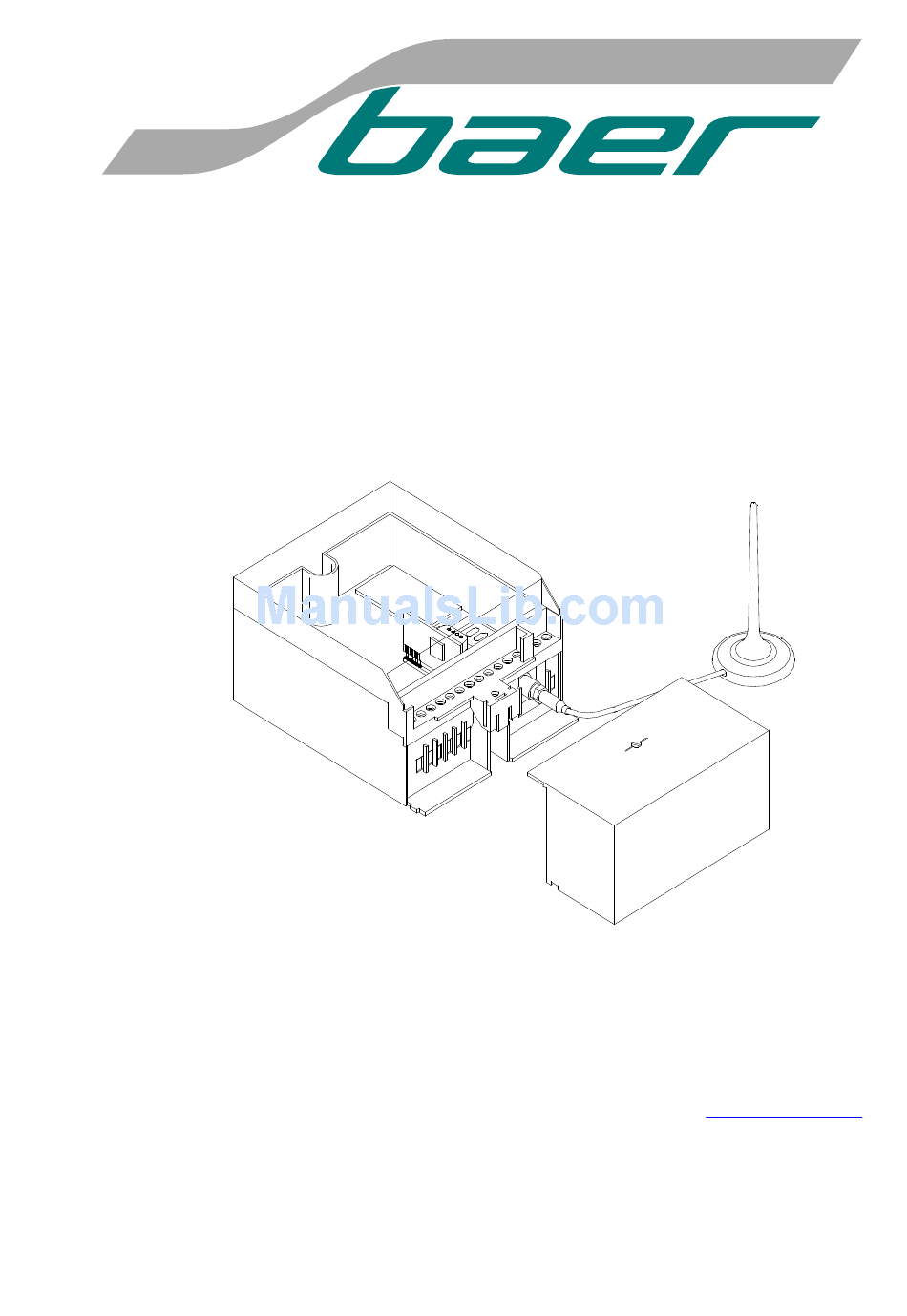

- Page 1 UniMod GSM-3 Operation Manual Bär Industrie-Elektronik GmbH Rathsbergstraße 23 D-90411 Nürnberg Germany Phone +49 911 970590 Fax +49 911 9705950 Internet: www.baer-gmbh.com E122001606063...
-
Page 2: Table Of Contents
UniMod GSM-3 Page 2 of 12 Operation Manual Bär Industrie-Elektronik GmbH ⋅ Rathsbergstr. 23 ⋅ D-90411 Nürnberg ⋅ Phone +49 911 970590 ⋅ Fax +49 911 9705950 Contents Page Requirements....................3 Safety Precautions for the User..............3 Power Supply Unit ..................3 Interfaces...................... -
Page 3: Requirements
1. Requirements The UniMod GSM-3 can be used in any GSM 900/1800 MHz network with an arbitrary number of pro- viders. It requires however the infrastructure for operating mobile stations with 2 Watt (EGSM900) or 1 Watt (GSM1800) transmission power. -
Page 4: Interfaces
The SIM card is now ready to use. 3. After that connect the antenna to the UniMod GSM-3 using the FME plug. At last (important!) con- nect it to the supplying power. -
Page 5: Programming The Modem
UniMod GSM-3 Page 5 of 12 Operation Manual Bär Industrie-Elektronik GmbH ⋅ Rathsbergstr. 23 ⋅ D-90411 Nürnberg ⋅ Phone +49 911 970590 ⋅ Fax +49 911 9705950 7. Programming the Modem Before installing the modem it has to be programmed in order to meet the demands. The baud rate and data format for connecting the target device and the transmission mode and transmission rates must be adjusted. - Page 6 UniMod GSM-3 Page 6 of 12 Operation Manual Bär Industrie-Elektronik GmbH ⋅ Rathsbergstr. 23 ⋅ D-90411 Nürnberg ⋅ Phone +49 911 970590 ⋅ Fax +49 911 9705950 Alternative: parametering adapter with 9 pole plug (standard RS232). Now you have to set your terminal program to the fixed, local data rate and data format of the UniMod.
- Page 7 UniMod GSM-3 Page 7 of 12 Operation Manual Bär Industrie-Elektronik GmbH ⋅ Rathsbergstr. 23 ⋅ D-90411 Nürnberg ⋅ Phone +49 911 970590 ⋅ Fax +49 911 9705950 AT+CPIN? code SIM card inquiry (code = ERROR: no/faulty SIM card code = +CPIN: SIM PIN: waiting for PIN code = +CPIN: READY: PIN active) AT+CPIN="n"...
- Page 8 • Establish connection PC to modem (e.g. using the parametering adapter) • Insert SIM card • Switch on UniMod GSM-3, wait 15 to 30 sec: till first LED is on • Start the UniModSet software • Read the equipment configuration •...
-
Page 9: Additional Functions
PC, operating system,...) the communication software of your application might issue a message like: wrong parity. In the most cases a switch of the UniMod GSM-3 data for- mat from "7E1" to "8N1" is able to bring fast and easy help. Using this configuration data retrieval from most meters is possible in the format "7E1"... -
Page 10: Sms
UniMod GSM-3 Page 10 of 12 Operation Manual Bär Industrie-Elektronik GmbH ⋅ Rathsbergstr. 23 ⋅ D-90411 Nürnberg ⋅ Phone +49 911 970590 ⋅ Fax +49 911 9705950 10. SMS Optional it is possible to activate SMS. This function is monitoring of on/off state changes of DTR input... -
Page 11: Technical Data
European Telecommunications Standards Institute, http://www.etsi.org License: EU-License: Reg.-No.: M351277P-EO Extent of delivery: - UniMod GSM-3 including interface module as ordered - Standard antenna (length of cable about 2,6m) - Operation manual Accessories: - Adapter for parametering - Antenna for special purposes... -
Page 12: Inserting The Interface Modules
UniMod GSM-3 Page 12 of 12 Operation Manual Bär Industrie-Elektronik GmbH ⋅ Rathsbergstr. 23 ⋅ D-90411 Nürnberg ⋅ Phone +49 911 970590 ⋅ Fax +49 911 9705950 12. Inserting the Interface Modules When inserting the interface modules their component side must be at the left side and wired accord- ing the picture.
