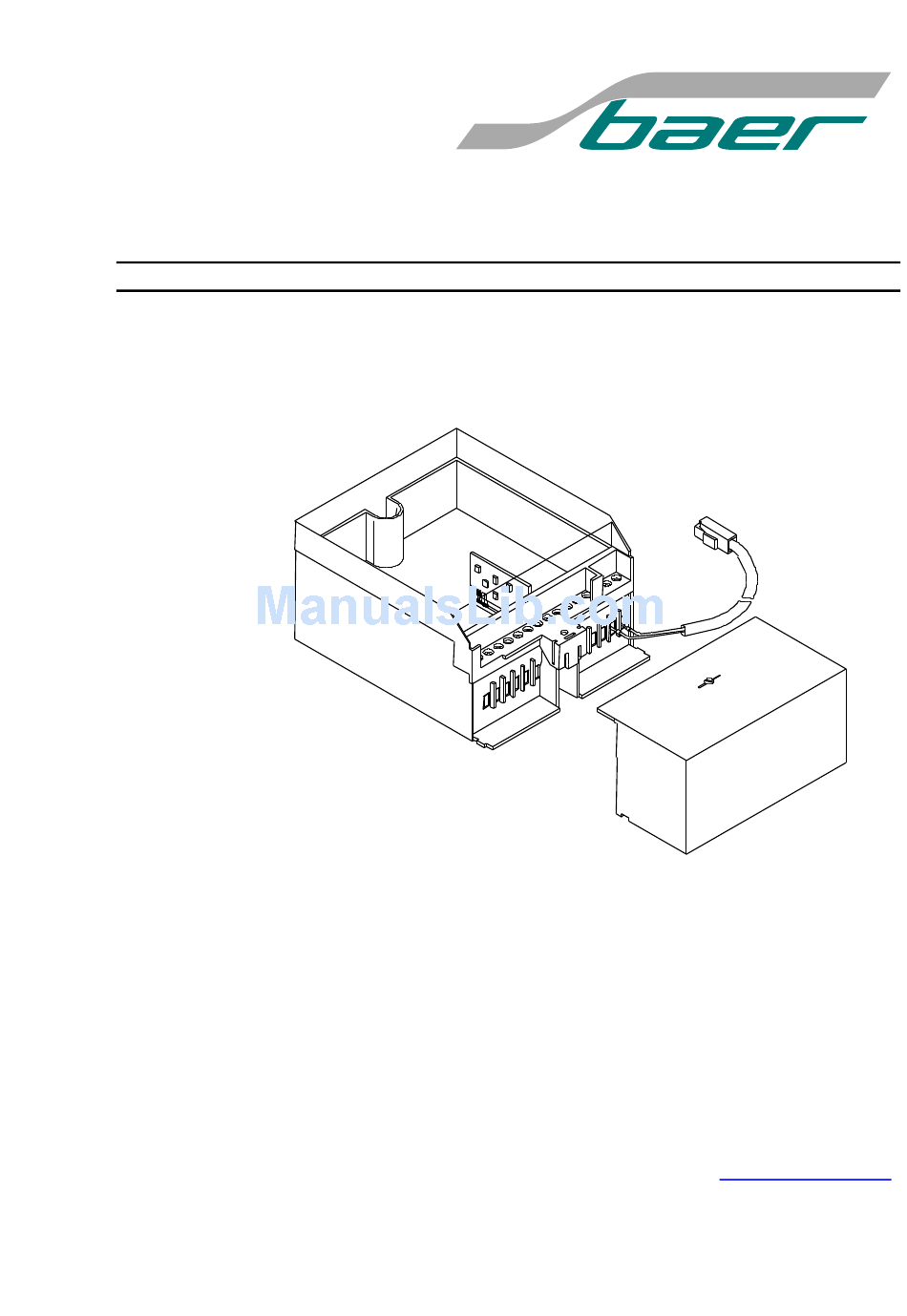

- Page 1 UniMod Ethernet LAN-Modem Operation Manual E121712216066 Bär Industrie-Elektronik GmbH Siemensstr. 3 D-90766 Fürth Germany Phone: +49 (0)911 970590 Fax: +49 (0)911 9705950 Internet: www.baer-gmbh.com...
- Page 2 UniMod Ethernet COPYRIGHT Copyright © 2016 BÄR Industrie-Elektronik GmbH. All rights, including those originating from translation, (re)-printing and copying of this document or parts thereof are reserved. No part of this manual may be copied or distributed by electronic, me- chanic, photographic or indeed any other means without prior written consent of BÄR...
-
Page 3: Table Of Contents
UniMod Ethernet Table of Contents General ......................5 Power Supply Unit..................5 Interfaces ...................... 5 Display ......................5 Installation Hints ..................5 Programming the Modem ................6 Reset Function ................... 11 Inserting the Interface Modules ..............12 Technical Data .................... 13 Terminal Block ................... - Page 4 UniMod Ethernet...
-
Page 5: General
UniMod Ethernet 1. General The universal LAN-Modem (Local Area Network) UniMod Ethernet was developed for remote in- quiry of measured data of any kind, especially however for telemetering applications. For the UniMod Ethernet communication, modules produced by internationally renowned compa- nies are used. -
Page 6: Programming The Modem
3. Now you can plug the parametering adapter into the 7-pole jack (the LED’s must point downwards). 4. The UniMod Ethernet can now be programmed with the software UniModSet. 5. After programming switch off the UniMod and insert the interface module carefully again. - Page 7 4. Then connect the 25 pole plug (RS232) to the PC port and switch on the voltage supply at the modem. 5. The UniMod Ethernet can now be programmed with the software UniModSet. 6. After programming switch off the UniMod and insert the interface module carefully again.
- Page 8 For the network parameters ask your system administrator. Then select in the menu „Settings - Interface“ the serial port (e.g. COM1) and send („Write“) the chosen device configuration to the UniMod Ethernet. Additionally you can receive („Read“) the configuration from a connected UniMod Ethernet.
- Page 9 UniMod Ethernet Programming with the terminal software First set your terminal program to the appropriate data transmission rate and data format for read- ing the target device (i.e. meter). Use one of the AT commands (e.g. ATS0?, ATI, AT&V) to check whether the modem answers.
- Page 10 UniMod Ethernet at&w No answer because of atq1 Saves the current parameter setting in the user- defined profile. This settings are active after every resumption of power supply! Attention: At the end of every programming the settings have to be saved permanently using the at&w command.
-
Page 11: Reset Function
UniMod Ethernet Telnet access For purposes of service it is possible to access an UniMod Ethernet via the Telnet tool, which is delivered with Windows. You can start it using the “Execute” button in the Start menu, or by enter- ing “telnet”... -
Page 12: Inserting The Interface Modules
UniMod Ethernet 8. Inserting the Interface Modules When inserting the interface modules their component side must be at the left side and wired ac- cording the picture. In the following sketch the components are at the left side. RS232 20mA active 20mA pas. -
Page 13: Technical Data
Data Transmit Control: Possible Reset function: Possible: every 3, 6, 12 or 24 hours Extent of delivery: - UniMod Ethernet including interface module as ordered - RJ45 connector - Operation manual Accessories: - Adapter for parameterization with RS232 port (Order No.: #9177) - Adapter for parameterization with USB port (Order No.: #12823) -
Page 14: Terminal Block
UniMod Ethernet 10. Terminal Block 11. Ethernet Interface Ethernet - Standard configuration (RJ45): 11: TX– (RJ45 pin 2, colour: red) 12: RX– (RJ45 pin 6, colour: green) 13: TX+ (RJ45 pin 1, colour: red-white) 14: RX+ (RJ45 pin 3, colour: green-white) -
Page 15: Dimensions
UniMod Ethernet 12. Dimensions Wall-mounted housing (DIN 43861-2) - Page 16 UniMod Ethernet...
