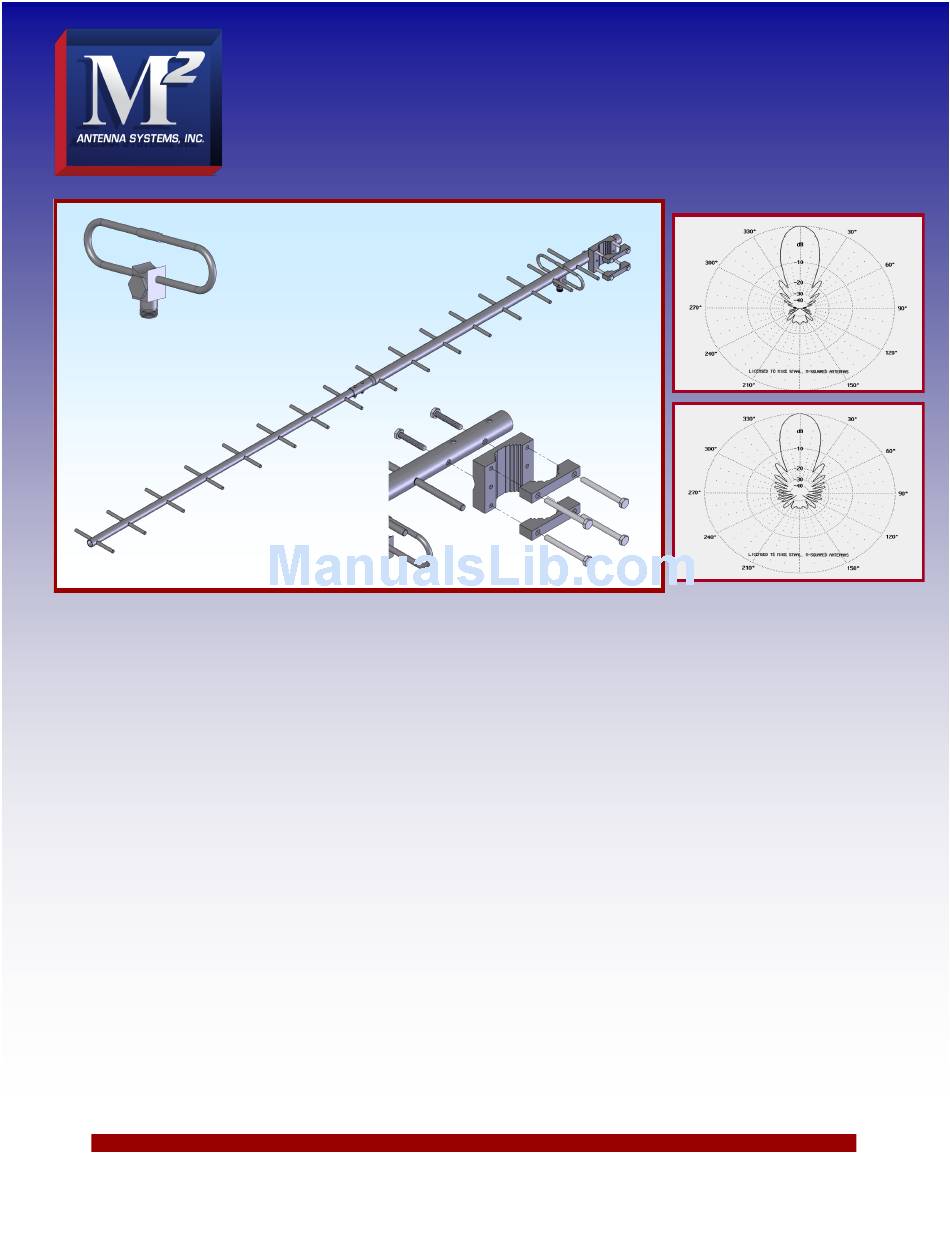

M2 917ABISP Assembly Manual

BLACK POWDER COAT PAINT!
UNI-CRADLE ANTENNA MOUNT
MATING CONNECTOR
NOW FACING DOWN
FOR EASE OF
WEATHER PROOFING

SPECIFICATIONS:

Model ........................................ 917ABISP
Frequency Range ...................... 900 To 930 mHz
Usable Range ............................ 880-940 mHz
*Gain .......................................... 17 dBi
Front to back .............................. 25 dB
Beamwidth ............................... E=20° H=22°
Feed type ................................... Folded Dipole
Feed Impedance. ....................... 50 Ohms
VSWR ........................................ 1.2:1 Typical

FEATURES:

The NEW 917ABISP high performance Yagi, is the latest product to come out of M2's Engineering Lab. Designed
for deep fringe systems were standard panels or smaller yagi's just don't cut it. Using our customers' suggestions, we
have black powder coated the entire antenna creating a hard finish that is tougher than conventional paint. Solid 5/16"
aluminum rod is used for the element structure allowing for slight rain and snow accumulation. Built on a two piece heavy
duty boom and includes a heavy duty mounting clamp, allowing for a wide range of masts sizes from 1 1/4" to 2".
The heart of the 917ABISP, the folded dipole, provides a virtual flat match for over 30 MHz. Again using our customers'
suggestions, the mating connector now faces down for ease of cable connection. The gain has been designed to roll-off
quickly above range limits to prevent receiver overload from high power services above 930 MHz.
The 917ABISP is a DC grounded antenna designed to work with many radios including Motorola Canopy, Vecima
Networks, Trango and many others.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
M2 Antenna Systems, Inc.
Model No: 917ABISP
NEW!
WITH HEAVY DUTY
FITS 1-1/4" TO 2" MAST
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incoporated
Model No:
Input Connector .......................... "N" Female
Polarity ....................................... VERT / HORZ
Power Handling .......................... 500 Watts
Boom Length / Dia ..................... 74" / 1" to 3/4"
Stacking Distance ...................... 28"
Mast Size .................................... 1-1/4" to 2"
Wind area / Survival ................... 0.4 Sq. Ft. / 100MPH
Weight / Ship Wt. ....................... 5 Lbs. / 6 Lbs.
917ABISP E-PLANE
917ABISP H-PLANE
06/09/15
Rev.00
