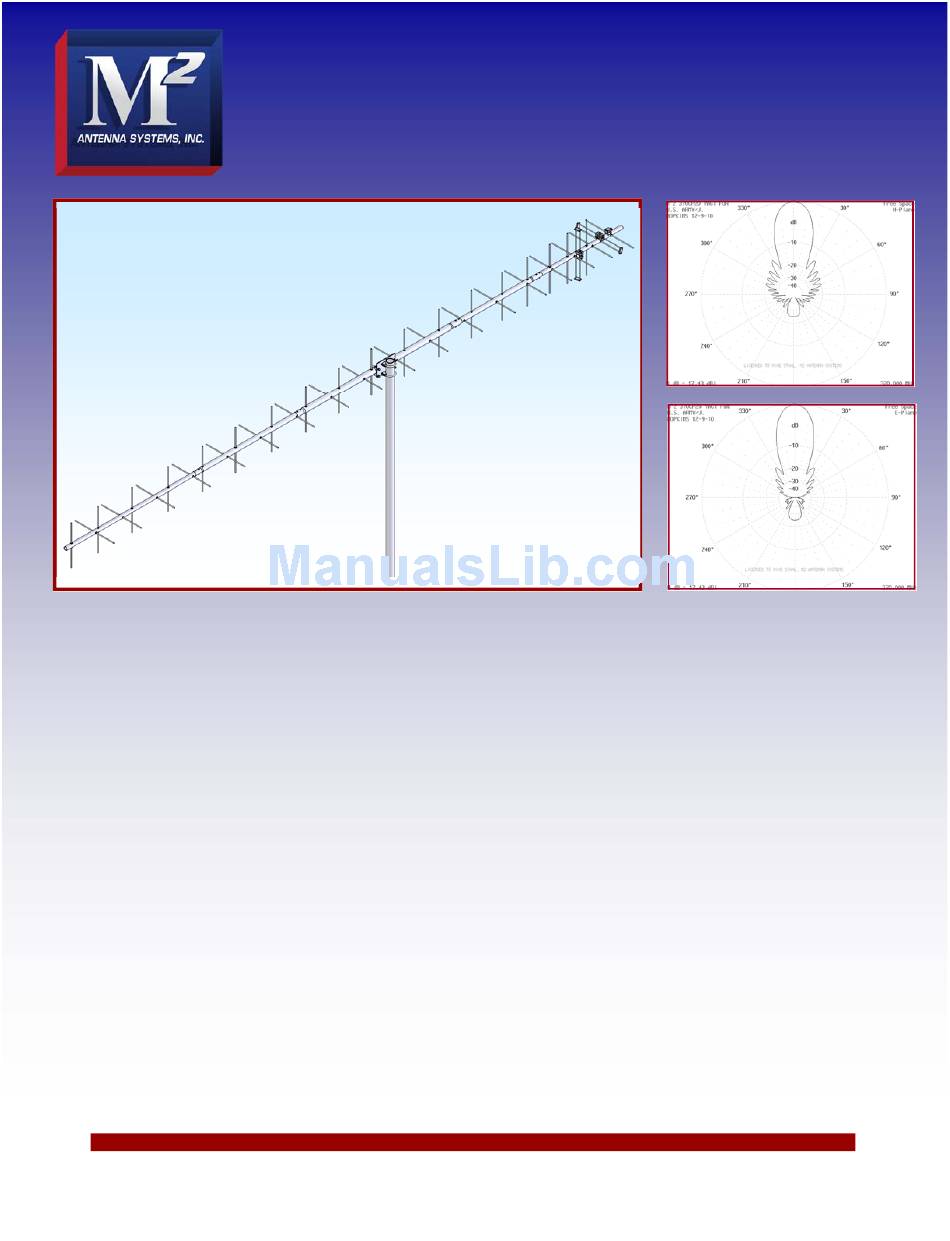

M2 370CP38 Assembly Manual

SPECIFICATIONS:

Model ......................................... 370CP38
Frequency Range ....................... 365 To 375 mHz
*Gain .......................................... 17.4 dBi
Front to back .............................. 24 dB Typical
Feed type ................................... Folded Dipole
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.6:1
Input Connector .......................... "N" Female
FEATURES:
The 370CP38 is high performance circular polarized antenna with a remarkably clean pattern. The pattern is important in
order to match the antenna's noise temperature with modern low noise preamps. This antenna is ideal for satellite work
but is also excellent for terrestrial uses like long haul tropo communications.
The CNC machined driven element module is O-ring sealed and weather tight for low maintenance and long-term
peak performance. Internal connected are encapsulated in a space-age silicone gel that seals out moisture and improves
power handling. The 3/16" 6061-T6 rod elements are centered on the boom to minimize interaction and maintain good
ellipticity. Insulators are UV stabilized and locked in place with stainless keepers. Rugged construction, uncompromising
performance for the boom length: that's the M
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 370CP38
*Subtract 2.14 from dBi for dBd
2
370CP38!
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incorporated
Power Handling .......................... 1.5 kW
Boom Length / Dia ...................... 186" / 1", 1-1/4" & 1-1/2"
Maximum Element Length .......... 16"
Turning Radius: .......................... 108"
Stacking Distance ....................... 62" - 68"
Mast Size .................................... 2" Nom.
Wind area / Survival ................... 1.5 Sq. Ft. / 100MPH
Weight / Ship Wt. ........................ 8 Lbs. / 10 Lbs.
09/17/15
Rev.02
