Toa DH-110 Instruction Manual

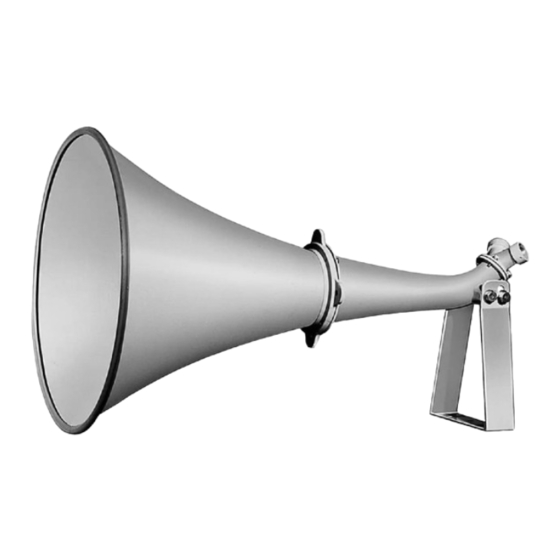

STRAIGHT HORN SPEAKER

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the
instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• The standard supplied mounting bracket is not
designed for use in locations exposed to strong winds
and could become dislodged, resulting in possible
personal injury. To ensure that the installation can
withstand expected wind forces, always use the
supplied mounting bracket in combination with a
separately prepared bracket.

2. EQUIPMENT CONFIGURATION

The DH-110 speaker is comprised of the DHA-11 (Horn A) and the DH-11B component (Horn B, Horn C and other parts).
The DH-120 speaker is comprised of the DHA-11 and the DH-12B component (Horn B, 2-driver unit adapter and other parts).
DH-110
Speaker Model No.
DH-120
Component Model No.
Horn A
Horn B
2-driver unit adapter
Horn C
Mounting bracket
Parts to make up Bird net
the component Rubber gasket A
Throat net
Rubber gasket B
Hex bolt (M12), plain washer (M12), spring washer (M12)
M6 hex bolt with spring washer, M6 washer
M4 screw
* Although two screws are supplied, only one screw is used to assemble the DH-110.

3. SPECIFICATIONS

Sensitivity
Frequency Response
Driver Coupling
Variable Installation Angle
Finish
Weight
Note: The design and specifications are subject to change without notice for improvement.
(COMMON TO THE DH-110 AND DH-120)
110 dB (1 W, 1 m) (When operated with a driver)
180 Hz – 6 kHz (When TU-631 or TU-651 series is used)
180 Hz – 8 kHz (When the TU-660 series is used)
1 – 3/8 18 threads (inch screw)
Vertical: +10°, –20° (when locally procured mounting bracket is used)
Ivory
5.3 kg
INSTRUCTION MANUAL
• Install the unit only in a location that can structurally
support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling down and
causing personal injury and/or property damage.
• Use nuts and bolts that are appropriate for the
installation place's structure and composition.
Failure to do so may cause the speaker to fall,
resulting in material damage and possible personal
injury.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation to
prevent accidents that could result in personal injury.
• Attach the safety wire to the unit when mounting in
locations high above the ground. Failure to do so
could result in personal injury if the speaker should
later fall for any reason.
• Protect the unit from exposure in snowy areas,
as the weight of snow build-up could cause the
speaker to fall, resulting in personal injury.
DHA-11
1
–
–
–
–
–
–
–
–
–
–
–
DH-110
DH-120
DH-11B DH-12B
–
1
– 1
1 –
1
1
1
1
1
6 each (stainless steel)
8 each (stainless steel)
2* (stainless steel)
