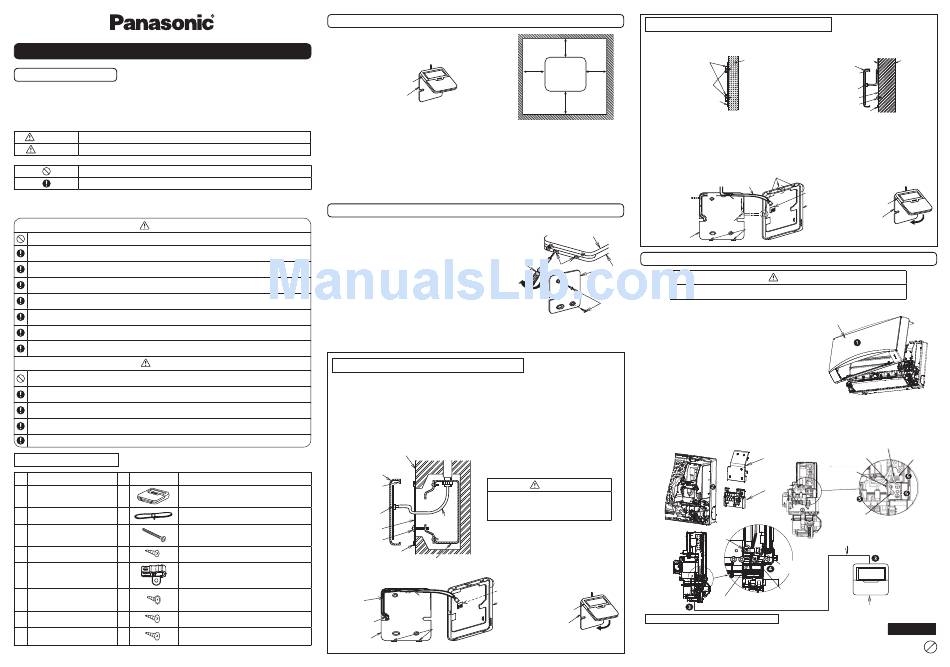

Wired Remote Controller Installation Manual
SAFETY PRECAUTIONS
•
Read the following "SAFETY PRECAUTIONS" carefully before installation.
•
Electrical work must be installed by a licensed electrician.
•
The caution items stated here must be followed because these important contents are related to safety. The meaning
of each indication used is as below.
Incorrect installation due to the non-observance of the instructions will cause harm or damage, and the seriousness is
classified by the following indications.
WARNING
This indication shows the possibility of causing death or serious injury.
CAUTION
This indication shows the possibility of causing injury or damage to properties only.
The items to be followed are classified by the symbols:
Symbol with white background denotes item that is PROHIBITED from doing.
Symbol with dark background denotes item that must be carried out.
•
Perform a functional test to confi rm that no abnormality occurs after the installation. Then, explain the operation,
care and maintenance to user as stated in instructions. Please remind the customer to keep the operating
instructions and installation instruction for future reference.
WARNING
Do not modify the length of the remote controller cable. Otherwise, it will cause fire or electrical shock.
Be sure to turn off the main power before installing and connecting the remote controller. Otherwise, it will
cause electrical shock.
Engage an authorized dealer or specialist for installation. If installation done by the user is defective, it will
cause electrical shock or fire.
Install strictly according to these installation instructions. If installation is defective, it will cause electrical shock
or fire.
Use specified accessories and parts for installation. Otherwise, it will cause the set to fall, fire or electrical
shock.
For electrical work, follow the local national wiring standards and regulations, and these installation
instructions. Otherwise, it will cause electrical shock or fire.
Wire routing must be properly arranged so that control board cover is affixed properly. If control board cover is
not affixed perfectly, it will cause fire or electrical shock.
If passing the remote controller cable through a wall, be sure to install a water trap above the cable.
Otherwise, it will cause electrical shock.
CAUTION
Do not touch the sharp aluminium fin of air conditioner unit during wired remote controller installation, sharp
parts may cause injury.
Install on a flat surface to avoid warping of remote controller, or else damage to the LCD case or operation
problems may result.
Avoid installing the remote controller cable near refrigerant pipes or drain pipes, otherwise it will cause
electrical shock or fire.
Install the remote controller cable at least 1 31/32"(5cm) away from electric wires of other appliances to avoid
misoperation (electromagnetic noise).
Be sure to use only the accessory screws to avoid damage of remote controller PCB.
ATTACHED ACCESSORIES
No.
Name
Qty
Diagram
1
Remote controller
1
2
Remote controller cable
1
Length 32.5ft (9.9m)
Screw
Installing the remote controller to an outlet box
3
(M4 machine pitched - 1 3/16"
3
(embedded cable)
(30mm))
Screw
Installing the remote controller to the wall
4
3
(M4 self tapping - 9/16"(14mm)
(exposed cable)
5
Remote controller cable holder
1
Holder for remote controller cable at control board
Screw
(M4 machine screw & washer -
1
Tighten remote controller cable with holder
6
13/32"(10mm))
Screw
Installing the remote controller cable to control
7
1
(M3 self tapping - 5/16"(8mm))
board
Screw
8
1
Installing the green wire to terminal board
(M4 self tapping - 5/16"(8mm))
1. SELECTING THE INSTALLATION LOCATION
Remote controller 1
Upper case
Mounting plate
•
Allow suffi cient space around the remote controller 1 as shown in the illustration above.
•
Install in a place which is away from direct sunlight and high humidity.
•
Install on a fl at surface to avoid warping of the remote controller. If installed to a wall with an uneven surface,
damage to the LCD case or operation problems may result.
•
Install in a place where the LCD can be easily seen for operation. (Standard height from the fl oor is 3.9ft to 4.9ft
(1.2 to 1.5 meters.))
•
Avoid installing the remote controller cable near refrigerant pipes or drain pipes, otherwise it will cause electrical
shock or fi re.
2. INSTALLING THE REMOTE CONTROLLER UNIT TO THE WALL
R e m o v e t h e r e m o t e c o n t r o l l e r 1 m o u n t i n g p l a t e .
1.
(Insert a fl at-tipped screw driver or similar tool 3/32" to 1/8" (2 to
3 mm) into one of the gaps at the bottom of the case, and twist
to open. Refer to the illustration at right.)
Be careful not to damage the mounting plate.
Do not remove the protective tape which is affi xed to the
2.
upper case circuit board when removing the remote controller
mounting plate.
Secure the mounting plate to an outlet box or wall. Refer to (A)
3.
or (B) instructions below depending on your choice of cable
installation.
4.
Be sure to use only the screws provided.
Do not over tighten the screws, as it may result in damage to
5.
the mounting plate.
A. IF REMOTE CONTROLLER CABLE IS EMBEDDED
1.
Embed an outlet box into the wall. Outlet box may be purchased separately. Medium-sized square outlet box
(obtain locally) Part No. DS3744 (Panasonic Corporation) or equivalent.
2.
Secure the remote controller mounting plate to the outlet box with the two accessory screws 3 .
Make sure that the mounting plate is fl at against the wall at this time, with no bending.
3.
Pass the remote controller cable 2 into the box.
4.
Route the remote controller cable 2 inside the mounting plate through rear feeding-out direction.
5.
Insert fi rmly the connector of remote controller cable 2 to connector (CON1) in the upper case circuit board.
[Refer to the illustration at below.]
6.
Secure the remote controller upper case to the mounting plate with the tabs provided.
Wall
Upper case
Remark
Upper tab
Connector (CON1)
Mounting plate
Screw 3
Lower tab
Remote
controller
cable 2
Rear feeding-out
position
Mounting plate
1 3/16"
(
30mm)
or more
1 3/16"
1 3/16"
(
30mm)
(
30mm)
Remote
or more
or more
controller
mounting
plate
4 23/32"
(
120mm)
or more
Upper case
Screw
driver
Gaps
Mounting plate
Screw 3
Screw 4
CAUTION
When the wall is hollow, please be sure to use
the sleeve for remote controller cable to prevent
dangers caused by mice biting the cable.
Remote
controller
cable 2
Outlet box
Connector
(CON1)
Upper case
Upper case
Mounting plate
Tabs
B. IF REMOTE CONTROLLER CABLE IS EXPOSED
1.
Install the remote controller mounting plate to the wall with the two accessory screws 4.
Fasten the screws properly until screw head is lower than the rib and reach the base of remote controller
2.
mounting plate to ensure they do not damage the PCB inside the remote controller 1.
Wall
Rib
Screws 4
Remote controller
mounting plate
The feeding-out direction for the remote controller cable can be either via top, left or right side.
3.
4.
Use nipper to cut a notch at the upper case. (Select the intended feeding-out position)
Route the remote controller cable 2 inside the mounting plate in accordance with the intended feeding-out
5.
direction. (Refer to the illustration at below)
Insert fi rmly the connector of remote controller cable 2 to connector (CON1) in the upper case circuit board.
6.
(Refer to the illustration at below)
Secure the remote controller upper case to the mounting plate with the tabs provided.
7.
Remote
Notches
Top feeding-out
controller
position
cable 2
Left feeding-out
position
Right
feeding-out
Tabs
Mounting plate
3. CONNECTING THE REMOTE CONTROLLER CABLE TO INDOOR UNIT
CAUTION
Be sure to turn off the main power before installing and connecting the remote controller.
Otherwise, it will cause electrical shock.
or
1.
Open front grille.
(Please refer to HOW TO TAKE OUT FRONT GRILLE in the
Service manual.)
2.
Open the control board cover and terminal board cover.
Connect remote controller cable 2 to remote controller 1 and
3.
guide the remote controller cable 2 into the unit through the
wire insertion hole.
Guide the remote controller cable 2 into the remote controller
4.
cable holder 5 and tighten with screws 6. Fasten the remote
controller cable holder with screw 7.
Firmly insert the connector of remote controller cable 2 into
5.
indoor PCB connector (CN-RMT) and tighten green wire from
remote controller cable 2 with screw 8 to the grounding
location provided.
Reinstall the terminal board cover. Be careful not to clamp the cable between terminal board cover and control
6.
board.
7.
After completion, reinstall the removed parts by following the reverse procedure.
Control board cover
Terminal
board cover
Screw 6
Remote controller
cable holder 5
Screw 7
Remote controller cable 2
Note: Remote controller cable cannot be extended.
Remote controller cable 2
Wall
Upper case
Upper tab
Connector (CON1)
Mounting plate
Screws 4
Lower tab
Remote controller 1
Connector
(CON1)
Upper case
Upper case
Mounting plate
Front grille
* Make sure the remote control cable
wire is not touching the wire connected
to terminal board, as shown
Green wire
Connector
(Remote controller)
(CN-RMT)
Terminal
board cover
Screw 8
Remote controller cable 2
Remote controller 1
