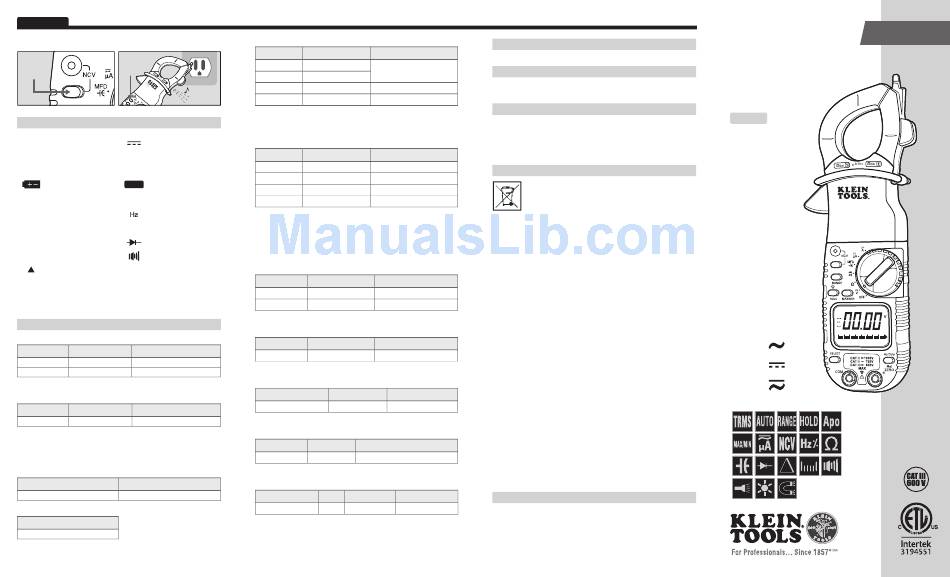

Klein Tools CL2000 Instruction Manual

ENGLISH
Non Contact Voltage (NCV): > 25V AC
8.
PRESS
PRESS
and
and
HOLD
HOLD
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
AT
Negative DC Value Auto Range Active
O.L. Apo
Overload: Range Exceeded Auto Power-Off Active
Low Battery Hold Active
HOLD
MIN MAX
Minimum Reading Maximum Reading
%
Duty Cycle Mode Frequency Mode
V A
Voltage Measurement Current in Amps
Ω
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
n
Relative / Zero Mode
Nano 10 -9
µ m
Micro 10 -6 Milli 10 -3
k M
Kilo 10 3 Mega 10 6
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
400mV ˜ 400V 0.1mV ˜ 0.1V ± (0.5% + 4 digits)
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V
AC Voltage Measurement
Range Resolution Accuracy
400mV ˜ 750V 0.1mV ˜ 1V ± (2.0% + 5 digits)
Overload Protection: 750V RMS
Frequency Response: 40 to 400Hz
Minimum Voltage for Frequency Measurement: 200mV
Response: True RMS
Continuity Test
Overload Protection Open Circuit Voltage
600V RMS < 0.44V
Non Contact Voltage Detector
On Voltage
Appx. 25V AC
DC Current Measurement
Range Resolution Accuracy
400µA 0.1µA
± (1.2% + 3 digits)
2000µA 1µA
40A 0.01A ± (2.5% + 15 digits)
400A 0.1A ± (1.5% + 8 digits)
Overload Protection:
Voltage: 600V RMS
•
Current: 2000µA
•
AC Current Measurement
Range Resolution Accuracy
400µA 0.1µA ± (2.0% + 5 digits)
2000µA 1µA ± (1.5% + 5 digits)
40A 0.01A ± (2.9 % + 15 digits)
400A 0.1A ± (1.9% + 8 digits)
Overload Protection:
Voltage: 600V RMS
•
Current: 2000µA
•
Frequency: 45 to 400Hz
Minimum Current for Frequency Measurement: 400µA or 20A
Response: True RMS
Resistance Measurement
Range Resolution Accuracy
400 Ω ˜ 4M Ω 0.1 Ω ˜ 0.001M Ω ± (1.0% + 4 digits)
40M Ω 0.01M Ω ± (2.0% + 4 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution Accuracy
40nF ˜ 4000µF 0.01nF ˜ 1µF ± (3.5% + 6 digits)
Overload Protection: 600V RMS
Frequency Measurement
Range Resolution Accuracy
9.999Hz ˜ 999.9kHz 0.001Hz ˜ 0.1kHz ± (0.1% + 4 digits)
Overload Protection: 600V RMS
Duty Cycle Measurement
Range Resolution Accuracy
0.1 ˜ 99.9% 0.1% ± (0.2% per kHz + 0.1% + 5 digits)
Overload Protection: 600V RMS
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS 2.0V Appx. 0.25mA < 1.6V DC
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Caution:
This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
www.kleintools.com
139540T Rev. 11/13 B
CL2000
Instruction Manual
ENGLISH
• TRUE RMS
• AUTO / MANUAL
RANGE
• NON CONTACT
VOLTAGE TESTER
CL2000
• RELATIVE / ZERO
• BAR GRAPH
• MAX / MIN / HOLD
• 3-3/4 DIGIT
3999 COUNT LCD
• BACKLIGHT
• WORKLIGHT
750V
0 10 20 30 40
1000V
400A
