Precision Rated Optics OLT-301 SERIES Operation Manual

Optical loss tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

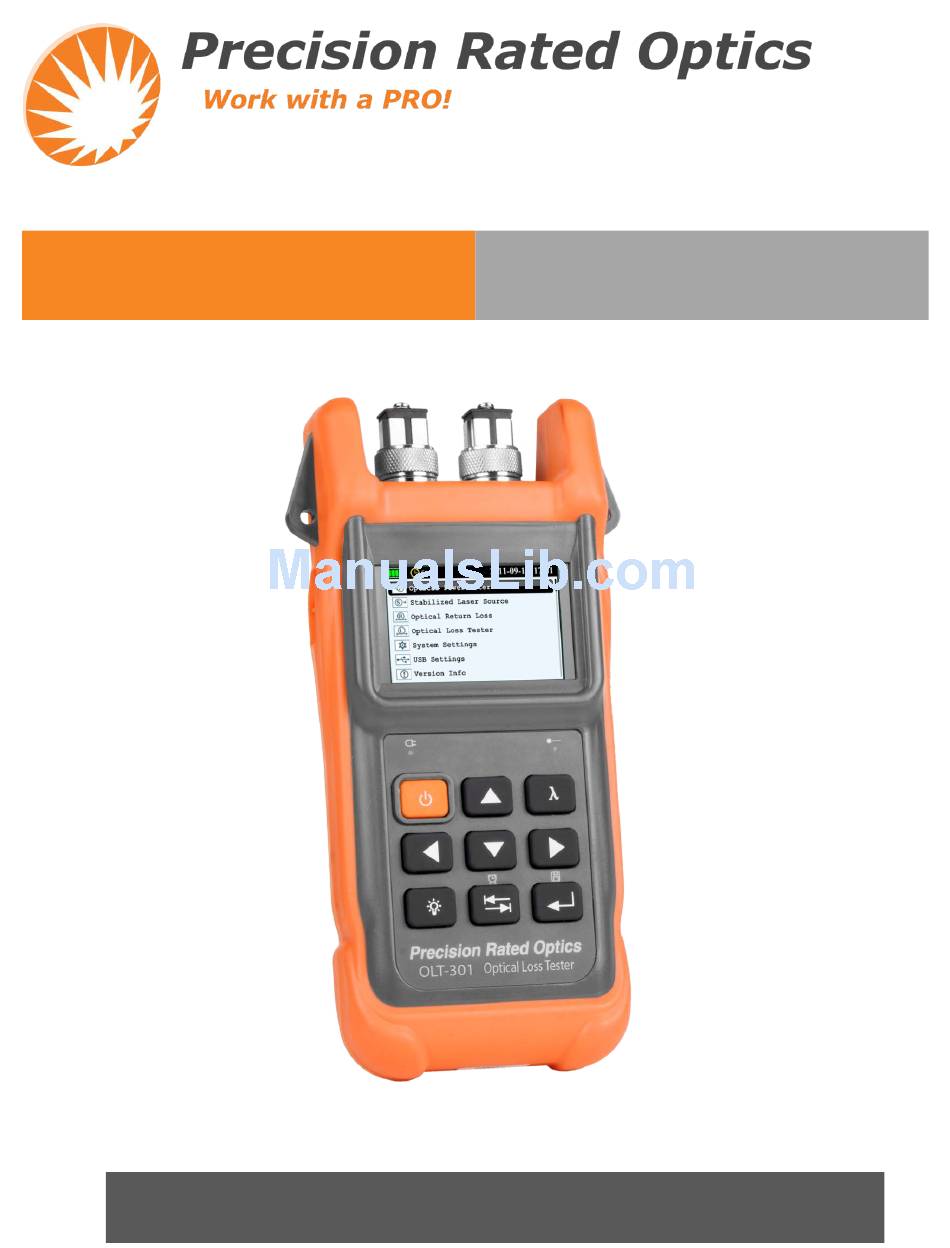

OLT-301 S
ERIES
Optical Loss Tester
Operation Guide
V.1.23.17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLT-301 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Precision Rated Optics OLT-301 SERIES

Summary of Contents for Precision Rated Optics OLT-301 SERIES

  • Page 1 OLT-301 S ERIES Optical Loss Tester Operation Guide V.1.23.17...

  • Page 2: Table Of Contents

    OLT-301 Series Table of Contents Safety Instructions ..............................4 1. General Information ............................5 1.1 Scope of this Manual ............................5 1.2 Unpacking and Inspection ..........................5 1.3 Introduction ..............................6 2. Basic Operation ..............................7 2.1 Foreword ................................7 2.2 Instrument Details ............................7 2.2.1 External Interfaces .............................7 2.2.2 Keypad Operation ............................7...
  • Page 3 OLT-301 Series 3.4.6 OLT-Setup ...............................20 3.5 Optical Return Loss Test (ORL)-Option ......................22 3.5.1 ORL-ORL Test ............................22 3.5.2 ORL-Save Record ...........................23 3.5.3 ORL-Recall ..............................24 3.5.3 ORT-Setup ...............................24 4. Maintenance and Calibration ..........................25 4.1 Cleaning of the Connectors ..........................25 4.2 Calibration Requirement ..........................25 5.

  • Page 4: Safety Instructions

    The NOTE sign information that may be beneficial during the use and maintenance of the instrument. WARNING OLT-301 Series Optical Loss Tester is a laser device. User should always avoid direct eye exposure to the laser output. Using microscope or magnifier to observe the laser output should also be avoided: laser beam may converge on the retina and cause permanent eye injury.

  • Page 5: General Information

    1. General Information 1.1 Scope of this Manual Thank you for purchasing a Precision Rated Optics instrument. Please read this manual carefully before using Precision Rated Optics fiber optic instrument. Always be aware of the Warning and Caution signs appearing throughout this manual.

  • Page 6: Introduction

    Automatic Bidirectional Loss Test on Single Fiber One OLT-301 Series tester at each end of a single optical fiber can perform bi-directional loss test by just pressing one unit and can automatically measure and display the entire fiber attenuation to help users acquire complete and accurate optical fiber loss information.

  • Page 7: Basic Operation

    2. Basic Operation 2.1 Foreword This part introduces the basic operation on the OLT-301 Series testers. Specific operations are elaborated in Chapter 3 of this manual. Please read this manual carefully for optimal operation. If you encounter any problems during operation, you are welcome to contact the technical staff of our company or representatives.

  • Page 8: Indicator

    The OLT-301 Series works on lithium battery. Please make sure battery is mounted properly before use. When battery is low, low battery indicator will appear on LCD. You can still use the OLT-301 Series as long as its display on LCD is identifiable. When LCD display becomes dim, laser source output will become unstable and power meter measurement will be inaccurate.

  • Page 9: Operation

    OLT-301 Series 3. Operation 3.1 Power On Press and loading screen appears Then it enters functional interface (The last interface before last shutdown), see Figure 3.2. Figure 3.2 The toggle between functional interfaces: Press to toggle [Main menu] interface, see Figure 3.3.
  • Page 10 OLT-301 Series 1. Press to toggle the following function interface: 2. Press to toggle the corresponding function interface; 3. Press to enter the corresponding function interface. The toggle between different setting interfaces: Under [ ] function interface, press to toggle the following...

  • Page 11: Stabilized Laser Source (Sls)

    OLT-301 Series The system setup Press to enter [ ] function interface: Press to enter and edit the Date, Time, Brightness, Auto Off and Language. USB configuration Press to enter [ ] function interface: Press to select: Mass storage: PC recognition it for a USB flash drive;...

  • Page 12: Sls-Laser On/Off

    OLT-301 Series 3.2.1 SLS-Laser On/Off Press to [LaserOnOff] sub-interface, see Figure 3.4; Press to turn on laser source, see Figure 3.5; press again to turn off laser, see Figure 3.5; Figure 3.5 Press to select “MOD” option, press the output mode toggles between CW, 270Hz, 1KHz, 2KHz and AutoID;...

  • Page 13: Sls-Setup

    OLT-301 Series “Get from OPM”: press to set the current power value which gets from OPM as the reference. Press to toggle between the different wavelengths. 3.2.3 SLS-Setup Press to [Setup] interface, see Figure 3.7. Note: This function is only for Auto ID mode applicable.

  • Page 14: Opm-Reference Setting

    NOTE Set reference Refers to manual reference value setup; if the laser source (Precision Rated Optics laser source with AutoID function) on the other side of the tested fiber enables AutoID, the OPM will automatically set the reference value sent from the laser source as reference (“AutoID” will appear in this interface).

  • Page 15: Opm-Recall

    OLT-301 Series 3.3.3 OPM-Recall Press to [Recall] sub-interface, see Figure 3.10. Figure 3.10 Press to select item: Del all, Del current, Go to (Index), Prev. and Next. 3.3.3 OPM-Trace Press to [Trace] sub-interface, see Figure 3.11. Figure 3.11 Press to select item: Draw Trace, Scale, Timer and Status.

  • Page 16: Opm-Setup

    OLT-301 Series Figure 3.12 Scale: press to select the suitable scale, press to confirm; Timer: press to select test time 15min, press to toggle between 15min, 60min and 8hour; Status: press to running/stop trace. 3.3.4 OPM-Setup Press to [Setup] sub-interface, see Figure 3.13.

  • Page 17: Optical Loss Test (Olt)

    OLT-301 Series Operation Procedure: 1. Zero 2. Reference Setting 3. Input laser source 4. Read the power value 5. Save 6. Toggle the wavelength, and then repeat step 3, 4 and 5. 3.4 Optical Loss Test (OLT) Press to [Optical Loss Test] interface, see Figure 3.14.

  • Page 18: Olt-Bi-Directional Test

    OLT-301 Series In single: the laser source port and power meter port connect to each other on the same unit, the power value measured by the power meter is the reference value; In twin: the optical loss test ports of two different units connect to each other by patch cord and the power value measured in twin is more reasonable which is recommended.

  • Page 19: Olt-Save Record

    OLT-301 Series 3.4.3 OLT-Save Record Press to [Save] sub-interface, as shown in Figure 3.17. Figure 3.17 Press to select item: Cable and Fiber, press to enable digit adjustment, press confirm. Press to select Save, and press to save current record.

  • Page 20: Olt-Threshold Setting

    NOTE Thres: In bi-directional test, the OLT-301 Series determines test result PASS or FAIL according to the thresholds setting. Loss: dB/km, In bi-directional test, the unit will calculate the fiber’s approximate length according to the attenuation (dB/km) set here.
  • Page 21 OLT-301 Series Press to select items: Zero and Auto Save to, press to confirm. Zero: Screw on the dust cap, press the twice, the instrument will be automatically calibrate zero; Note: this operation should do first in the use of optical power meter.

  • Page 22: Optical Return Loss Test (Orl)-Option

    OLT-301 Series Figure 3.21 7. Toggle to [Save] sun-interface, select Save. 3.5 Optical Return Loss Test (ORL)-Option Press to [Optical Return Loss] sub-interface, as shown in Figure 3.22. Figure 3.22 3.5.1 ORL-ORL Test Press to [Test] sub-interface, as shown in Figure 3.22.

  • Page 23: Orl-Save Record

    OLT-301 Series ORL Zero: Connect one end of the test patch-cord to the OLT port, and at the other end of the patch-cord winding on a small diameter round bars, while observing the current return loss value displayed, the return loss value in the winding process will gradually become larger, when the return loss value does not change, press save the current return loss value as the ORL Zero.

  • Page 24: Orl-Recall

    OLT-301 Series 3.5.3 ORL-Recall Press to [Recall] sub-interface, as shown in Figure 3.24. Figure 3.24 Press to select item: Del all, Del current, Go to (Index), Prev. and Next. 3.5.3 ORT-Setup Press to [Setup] sub-interface, as shown in Figure 3.25.

  • Page 25: Maintenance And Calibration

    5.1 Terms of Warranty OLT-301 Series is warranted against defective material and workmanship for a period of one (1) year from the date of shipment to the original customer. Any product found to be defective within the warranty period would be repaired or replaced by the Provider free of charge.

  • Page 26: Warranty Registration

    To return instrument for reasons of yearly calibration or other, please contact the local Customer Service Center of Precision Rated Optics to obtain additional information and RMA # (Return Materials Authorization number). And describe briefly reasons for the return of the equipment, to allow us offer you more efficient service.
  • Page 28 Precision Rated Optics, Inc Corporate Office Billing & Processing PO Box 877 Trexlertown, PA 18087 Precision Rated Optics, Inc Product Distribution Center Manufacturing & Testing 9999 Hamilton Blvd Breinigsville, PA 18031...
