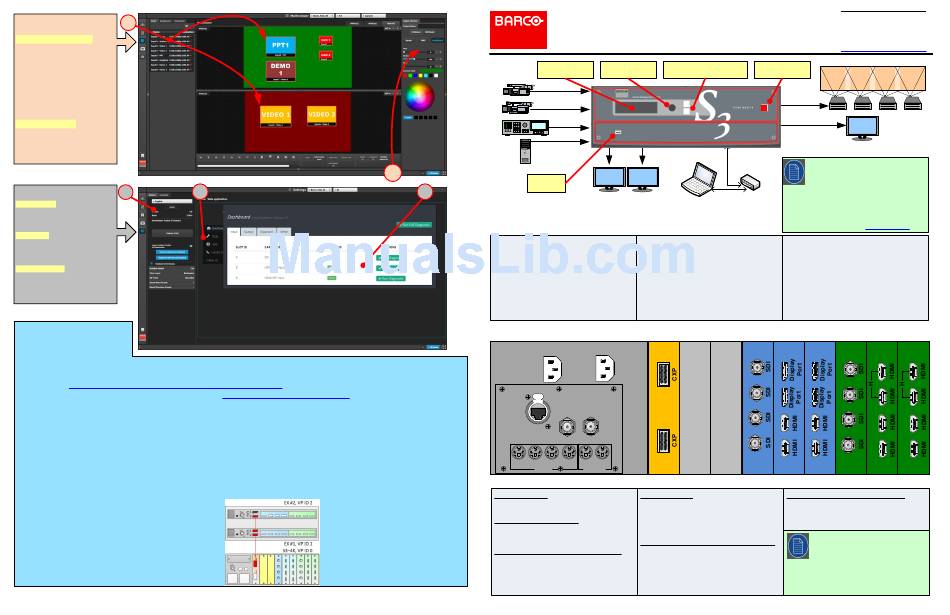

Barco S3–4K Quick Start Manual

MULTIVIEWER (MVR)
M1
MENU
M1: Select MVR Sources - From
the dropdown menus select the
Inputs, Backgrounds, and
Destinations you want to view
and drop them into Multiviewer
Outputs. Overlapping is not
allowed. An MVR source may be
used twice. A maximum total of
63 windows can be used for
Inputs and 63 windows can be
used for Outputs.
M2: Adjust Window - Adjust the
size, position and the color
parameters associated with each
window. Repeat for all Inputs and
save.
S1 S2
SETTINGS MENU
S1: Options - On the Options tab
click on the boxes to select system
wide user preferences such as
Layer positioning.
S2: Tools - Allows users to
perform Backup and Restore
operations or download the latest
software from the Barco website
S3: Dashboard - Provides status
information regarding the cards
and other system diagnostic
information.
Linking
An Event Master unit can link with other
Event Master units. Depending on the
linking configuration, linked units share
inputs, and they expand the number of layers and outputs. For more information on linking, see Section 6.17 "Configuration Menu > Linking in the Event Master
Devices User's Guide, or see the instructional videos on the Barco Folsom IP YouTube site.
For links to other quick-start guides and the Event Master Devices User's Guide, see the Technical Downloads tab for each product on the Barco Presentation
switchers page at: https://www.barco.com/en/Products/Image-processing/Presentation-switchers
For links to instructional videos, see the Barco Folsom IP YouTube site at: https://www.youtube.com/user/BarcoFolsomIP.
Link Connections
1. Check the cable orientation for keying. The cable fits in only one orientation.
2. Fully insert the cable into the connector on the Link Card.
3. If the cable resists full insertion, do not force it; pull the cable out, check its
orientation, and reinsert it.
4. Make sure that the latch is properly engaged.
5. Always use the release when removing the cable.
Improper insertion or removal of Link cables can damage the
connectors and is not covered under the product warranty.
Example: Linking an S3–4K to a pair of EX units
Each S3–4K is equipped with a single Link card in slot 1. The Link card is
identified by a yellow stripe at the top.
Be sure that you properly align the Link cable connectors prior to insertion.
Connectors should insert easily with almost no resistance, until the lock is
about to engage. Be sure that the lock engages fully to ensure proper
contact. Make sure that you use the locking mechanism and then push
each cable until it locks in place.
1. Connect the Link cables provided with each unit between the Link
connectors as follows:
• S3–4K VP ID 0, Link 1 >> EX VP ID 1, Link 2
• EX VP ID 1, Link 1 >> EX VP ID 2, Link 2
M2
Card Status
Expansion
Slot ID Actions
0 Expansion
1 Expansion
2 Input
3 Input
2. Make sure that the S3–4K and the EX units have different IP addresses.
The default IP address for each unit is the same; two of them must be changed.
3. Connect all devices to network Ethernet.
4. Start the Event Master Toolset version 4.0 or higher.
5. Make sure that the S3–4K and the EX units are discovered on the network
and that they have different Unit IDs.
If the system does not discover your device, you may manually add it. See
"How to manually add a device into the selected system" in the user's guide.
6. Drop the S3–4K in the EM GUI.
If the S3–4k unit is cabled to an EX unit or a pair of daisy-chained EX units,
the EX unit appears as a grayed-out box below the S3–4K unit in the
Diagram area. In the grayed-out EX box, a blue
button allows you to add the EX to the system
as a slave.
7. Click the blue add button to add the EX unit.
If you are adding two daisy-chained EX units,
you must add the first EX in the chain before the
second EX in the chain is displayed, then repeat
Step 7 to add the second EX in the chain.
8. (Optional) Name each unit so that you can
identify it in your setup.
P/N 26-1401004-00 Rev 02
Event Master
S3–4K – Screen Management System
Quick Start Guide
Display
USB Port
S3
System Setup
1. Ensure that the unit is physically secured in a
rack or is placed on a flat surface with stable
support. If the unit is installed in a rack, it is
mandatory that the rear brackets are also
installed.
2. Connect all sources, displays, and peripherals
to the S3–4K according to your event's
requirements.
Dual Redundant Power Supplies
Ethernet
Genlock
Loop
In
1 2 3 4 1
S3D In S3D Out
Expansion Card
- 2 High speed CXP connectors
SDI Input & Output Cards
- 4 SDI BNC connectors
- SD/HD/3G formats (6G ready)
DisplayPort/HDMI Combo Input Cards
- 2 DP and 2 HDMI locking connectors
- Displayport 1.1a specification
- HDMI 1.4a specification
- HDCP 1.4 & EDID 1.3
ADJUST Knob SEL and ESC Buttons Power Switch
SEL
PWR
ESC
PC with Event Master
Control Software
Ethernet switch
MVR MVR
3. Connect AC power to the unit. If power
redundancy is desired, connect power to both
power plugs.
4. Connect to a computer that has the Event
Master control software installed, via an
Ethernet cable. A switch is optional if additional
devices will be connected.
5. Power up the S3–4K, the PC, and all monitors
and peripherals.
6. Verify that no error messages appear on the
S3–4K front panel.
Link Card VPU Cards Input Cards
1 2 3 4
2
DVI Input Cards
- 2 DVI-I connectors (no analog signals)
- Single / Dual Link formats
- DVI 1.0 specification
- HDCP 1.4 & EDID 1.3
Quad Channel DisplayPort Output Cards
- 4 full-size DP locking connectors
- Up to 4 independent signals
- DisplayPort 1.2 specification
- HDCP will be supported in a future software
release.
Barco Technical Support:
USA: +1 (866) 374-7878
EMEA : 0800 90 0410
CHINA : 40088 22726
APAC: +603-78803362
www.barco.com/en/Support
Refer to the Event Master devices User's
guide (R5905948) for detailed system
specifications, descriptions and operation
instructions.
Any item contained in this document may
change without notice.
For the latest version of the Event Master
devices User's guide (R5905948) and the S3–4K
– Screen Management System Quick Start
Guide (26-1205004-00), visit www.barco.com.
7. After the S3–4K boots up, run the Event Master
control software and follow the sequence of
instructions listed in this Quick Start Guide to
complete the system setup and configuration.
Should the system not fully boot correctly, press
and hold the SEL and ESC buttons while
applying power to the unit. Release these
buttons when a menu appears asking to Factory
Reset the unit. Perform the Factory Reset and
the unit will boot normally.
Output Cards
MVR
5 9
6 7 8
HDMI Output cards (including MVR)
- 4 HDMI connectors (top 2 connectors capable of
high-speed HDMI signals up to 300 MHz)
- HDMI 1.4a specification
- HDCP 1.4 and EDID 1.3
Notes:
- Input and Output cards each support
one 4K/UHD signal.
- This sample system shows the optional DP 1.2
Output card. The system does not ship with this
card; your configuration may be different.
Cards are not hot-swappable.
-
