4.0 RS232 Commands
To use the RS232 commands, connect a computer running a terminal emulator program
(e.g. Hyperterm) configured for 9600 baud, 8 bits, no parity, 1 stop bit.

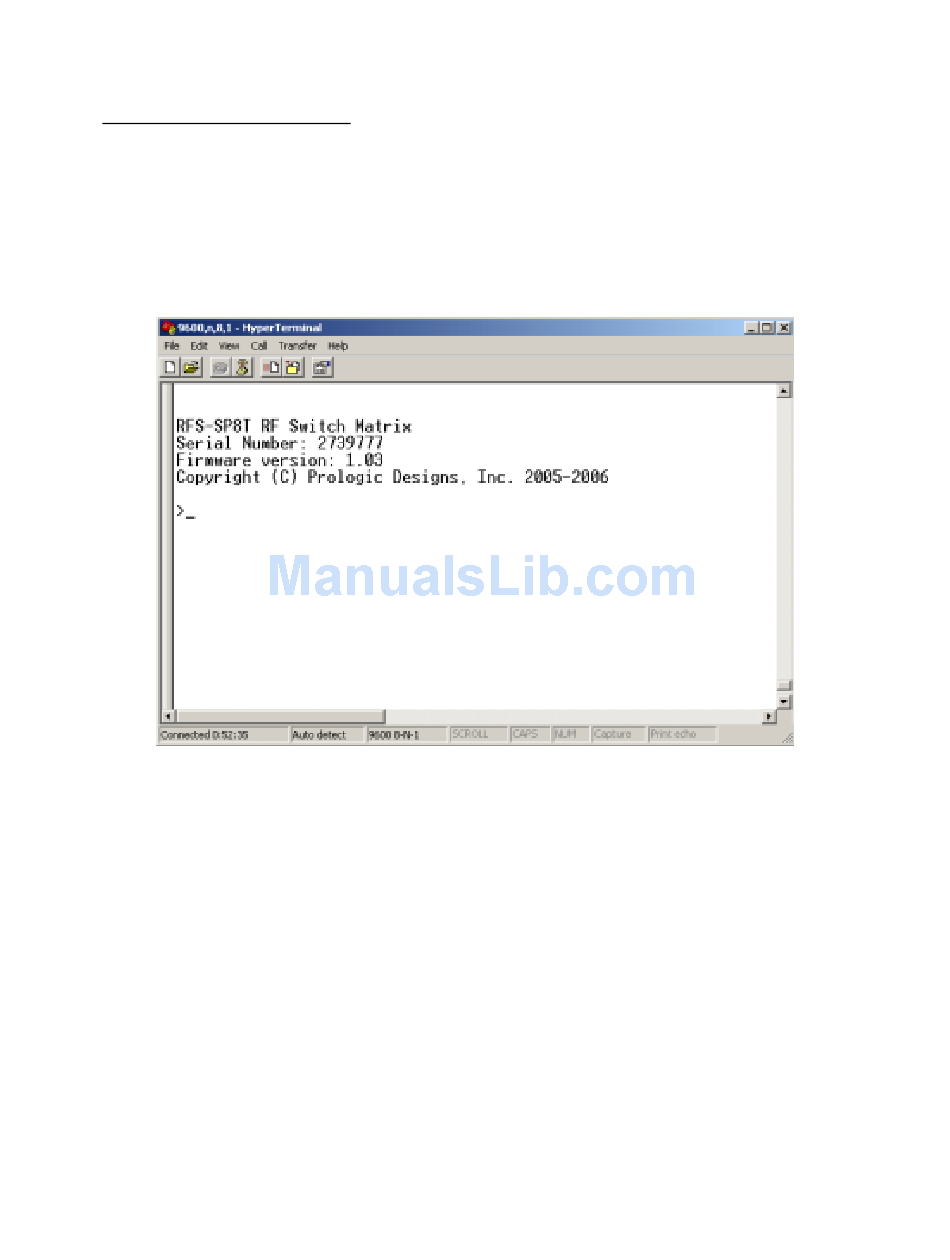

Upon reset, the RFS-SP8T will display the sign on message as shown below (all
examples use Hyperterm):
The '>' character is the prompt indicating the RFS-SP8T's RS232 interface is ready to
accept commands. All commands are one or two characters followed by the "enter" key.
In the following command descriptions, <enter> is used to indicate pressing the enter
key.
RFS-SP8T RF Switch Matrix Users Manual
Document number 2000481
9
