Summary of Contents for Prologic Designs RFS-SP8T

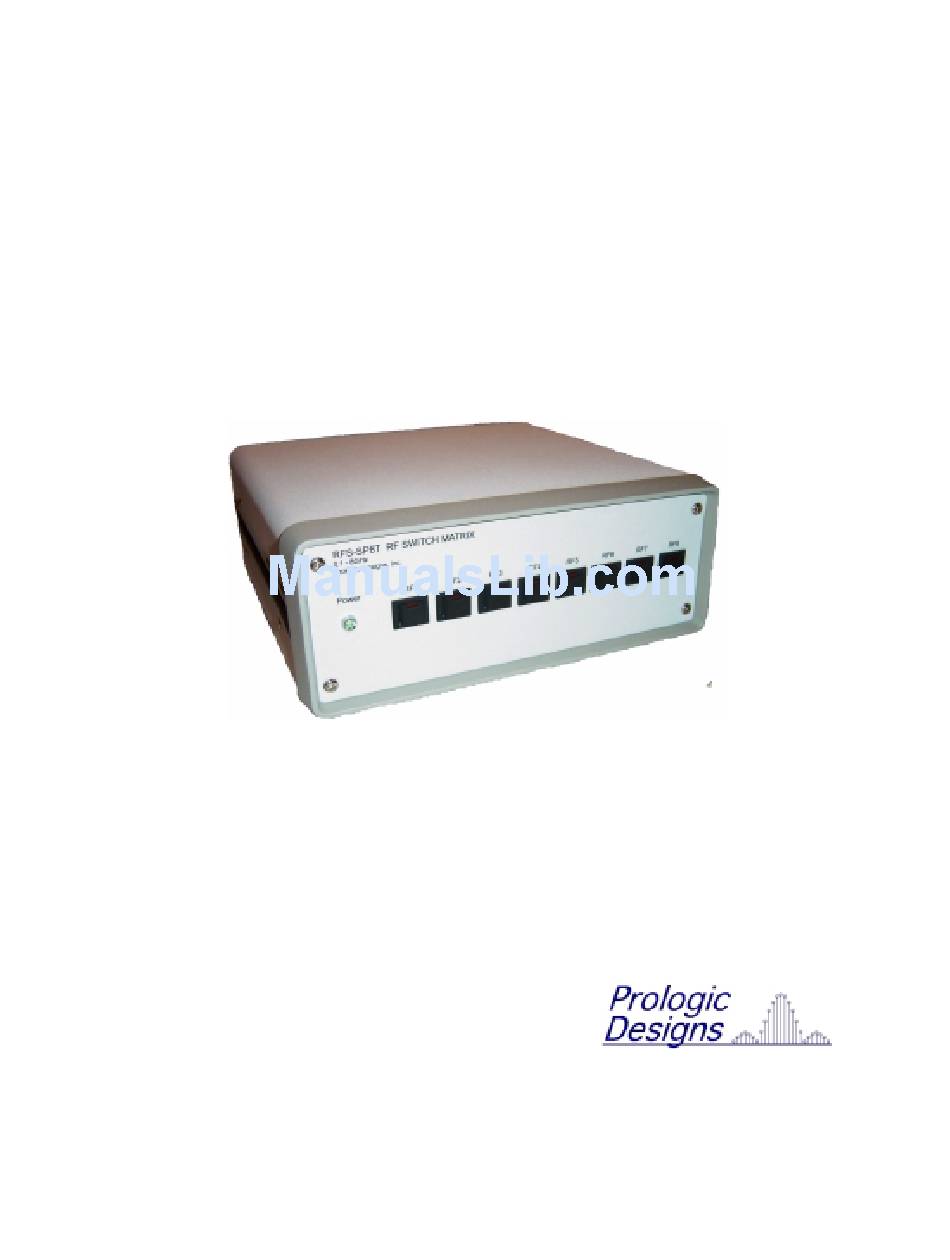

- Page 1 RFS-SP8T RF Switch Matrix User’s Manual 10 Gerard Ave Suite 108 Timonium, MD 21093 Phone: 410-560-3615 FAX: 410-560-3516 RFS-SP8T RF Switch Matrix Users Manual Document number 2000481...
-
Page 2: Table Of Contents
This Page Intentionally Blank RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 3: Table Of Contents
7.0 Document Revision History ..................23 List of Figures Figure 1 – RFS-SP8T ......................5 Figure 2 – RFS-SP8T Front Panel ..................6 Figure 3 – RFS-SP8T Back Panel ..................7 List of Tables Table 1 - RS232 Connector Pinout ..................7... - Page 4 This Page Intentionally Blank RFS-SP8T RF Switch Matrix Users Manual Document number 2000481...
-
Page 5: Introduction
1.0 Introduction The RFS-SP8T is an single pole, 8 throw solid state RF switch, with signal bandwidth of 0.1 GHz to 8 GHz. The switch position is set by pressing one of eight front panel momentary switches, or via LAN interface. An RS232 port is provided for configuring the switch IP address, and other operating parameters Figure 1 –... -
Page 6: Front Panel
The current RF switch position is indicated by a red LED. A green power indicator LED is also mounted on the front panel Figure 2 – RFS-SP8T Front Panel RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 7: Back Panel
RF1-RF8. Figure 3 – RFS-SP8T Back Panel 3.1 RS232 Connector A standard DB9F is located on the right side of the RFS-SP8T back panel. The connector pinout is provided in the table below: Pin Number Signal... -
Page 8: Lan Connector
Momentary switch that generates a hardware reset when pressed. Note: Following reset (or power up) it takes 3 or 4 seconds for the unit to initialize and attempt to establish communication on the LAN. RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 9: Rs232 Commands
To use the RS232 commands, connect a computer running a terminal emulator program (e.g. Hyperterm) configured for 9600 baud, 8 bits, no parity, 1 stop bit. Upon reset, the RFS-SP8T will display the sign on message as shown below (all examples use Hyperterm): The ‘>’... -
Page 10: Command
4.1 “?” Command Function: Displays available commands on the terminal Command format: “?<enter>” Example: RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 11: Ls" Command
IP address with lead zeros suppressed assigned by the DHCP, or the default static IP address if static IP was selected (by SD command) Example: RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 12: Ss" Command
Response: IP address: aaa.aaa.aaa.aaa.aaa gateway address: bbb.bbb.bbb.bbb network mask: ccc.ccc.ccc.ccc name server: ddd.ddd.ddd.ddd Where: aaa.aaa.aaa.aaa bbb.bbb.bbb.bbb ccc.ccc.ccc.ccc ddd.ddd.ddd.ddd are IP addresses in standard dotted decimal format with lead zeros suppressed. Example: RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... - Page 13 Enter network mask-> <ccc.ccc.ccc.ccc><enter> Enter name server-> <ddd.ddd.ddd.ddd><enter> Where: <aaa.aaa.aaa.aaa ><enter> <bbb.bbb.bbb.bbb><enter> <ccc.ccc.ccc.ccc><enter> <ddd.ddd.ddd.ddd><enter> are user entered IP addresses in standard dotted decimal format with lead zeros suppressed followed by the enter key. Example: RFS-SP8T RF Switch Matrix Users Manual Document number 2000481...
-
Page 14: Ab" Command
4.5 “AB” Command Function: Identifies the unit’s model number, serial number, and firmware version. Command format: “AB<enter>” Example: RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 15: Sd" Command
4.6 “SD” Command Function: Select static IP or DHCP Command format: “SD<enter>” In the following example, the user selected ‘0’ for DHCP. Selecting ‘1’ would select static IP addressing. Example: RFS-SP8T RF Switch Matrix Users Manual Document number 2000481... -
Page 16: Socket Interface
5.0 Socket Interface The RFS-SP8T firmware provides socket commands to set/read the RF switch position, lock/unlock the front panel momentary switches, and read the firmware version and serial number. Each command is described in the following sections. The examples assume a TCP/IP socket has been established with the RFS-SP8T on port 14000. -
Page 17: Gwtsw Command
5.2 GETSW Command Function: Read the current RFS-SP8T RF switch position Format: GETSW Response: Switch=n Where n is the current RF switch position, 1<=n<=8 Example: If w is a previously opened write network stream, and r is a previously opened read network stream, then w.Write(“GETSW”);... -
Page 18: Lfp Command
Function: Disables the RFS-SP8T front panel momentary switches Format: Response: 0x03 Example: If w is a previously opened network stream to the RFS-SP8T, then w.Write("LFP"); disables the front panel switches. The control software should wait for the acknowledge byte 0x03 to be returned before sending additional commands... -
Page 19: Ufp Command
Function: Enables the RFS-SP8T front panel momentary switches Format: Response: 0x03 Example: If w is a previously opened network stream to the RFS-SP8T, then w.Write("UFP"); enables the front panel switches The control software should wait for the acknowledge byte 0x03 to be returned before sending additional commands... -
Page 20: Getfv Command
5.5 GETFV Command Function: Retrieves the RFS-SP8T firmware version Format: GETFV Response: nVVV…V Where: n is the number of characters in the serial number VVV…V is a variable length firmware version string Example: If w is a previously opened write network stream, and r is a previously opened read network stream, then w.Write("GETFV");... -
Page 21: Getsn Command
5.6 GETSN Command Function: Retrieves the RFS-SP8T serial mumber Format: GETSN Response: nVVV…V Where: n is the number of characters in the serial number VVV…V is the variable length serial number string Example: If w is a previously opened write network stream, and r is a previously opened read network stream, then w.Write("GETSN");... -
Page 22: Warranty
6.0 Warranty Prologic Designs warrants the RFS-SP8T to be free of defects for a period of 90 days from date of delivery. In event of failure, Prologic Designs will repair or replace, at our discretion, the RFS-SP8T unit. RFS-SP8T RF Switch Matrix Users Manual... -
Page 23: Document Revision History
7.0 Document Revision History Date Revised By Description of Revision October 17, 2006 J. Cammarata Original Document RFS-SP8T RF Switch Matrix Users Manual Document number 2000481...
