2.0 Front Panel

Figure 2 is a picture of the front panel. A specific RF switch position is selected by
pressing the corresponding momentary switch. The current RF switch position is
indicated by a red LED.
A green power indicator LED is also mounted on the front panel

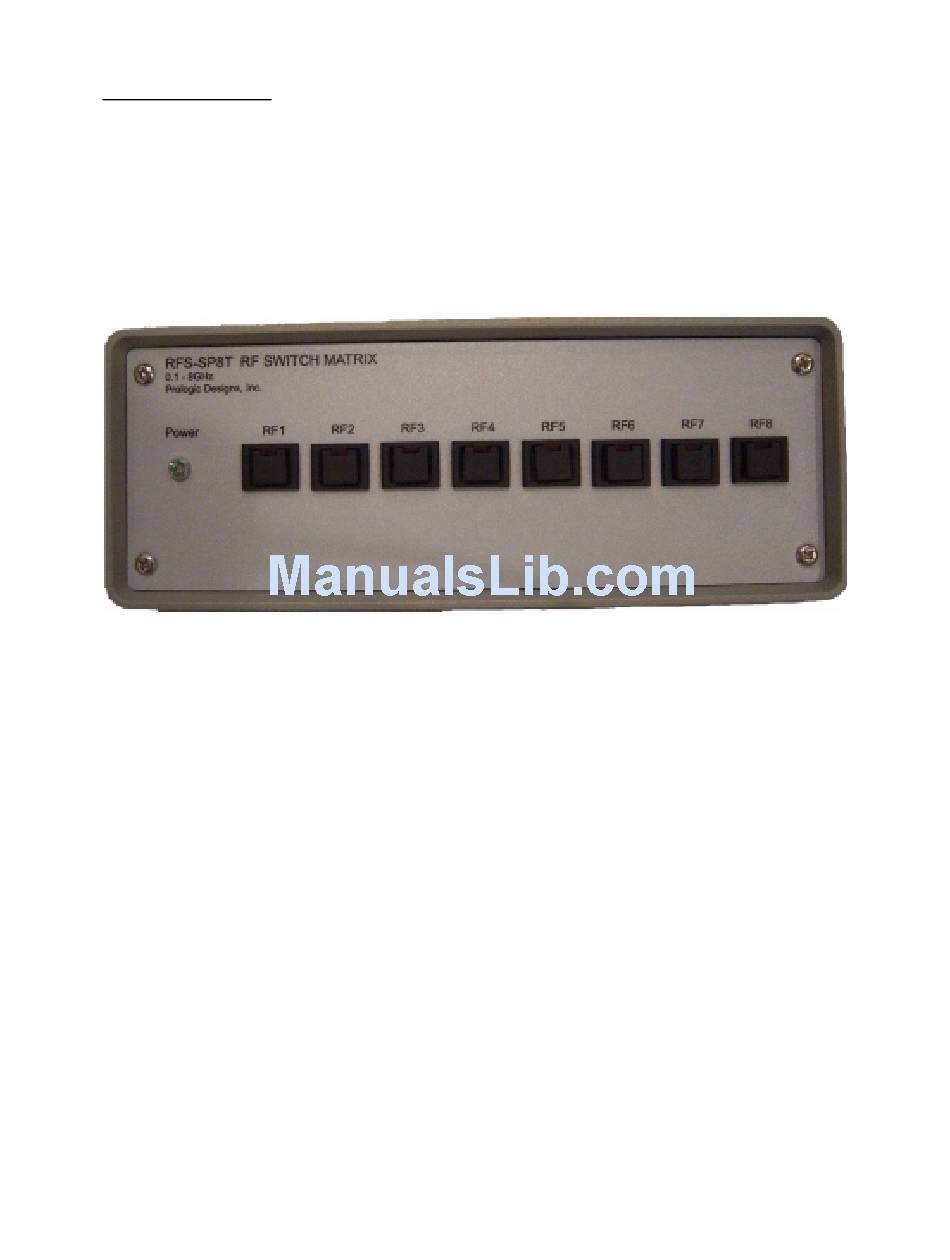

Figure 2 – RFS-SP8T Front Panel
RFS-SP8T RF Switch Matrix Users Manual
Document number 2000481
6
