The RFS-SP8T is an single pole, 8 throw solid state RF switch, with signal bandwidth of
0.1 GHz to 8 GHz. The switch position is set by pressing one of eight front panel
momentary switches, or via LAN interface. An RS232 port is provided for configuring
the switch IP address, and other operating parameters
RFS-SP8T RF Switch Matrix Users Manual
Document number 2000481

1.0 Introduction

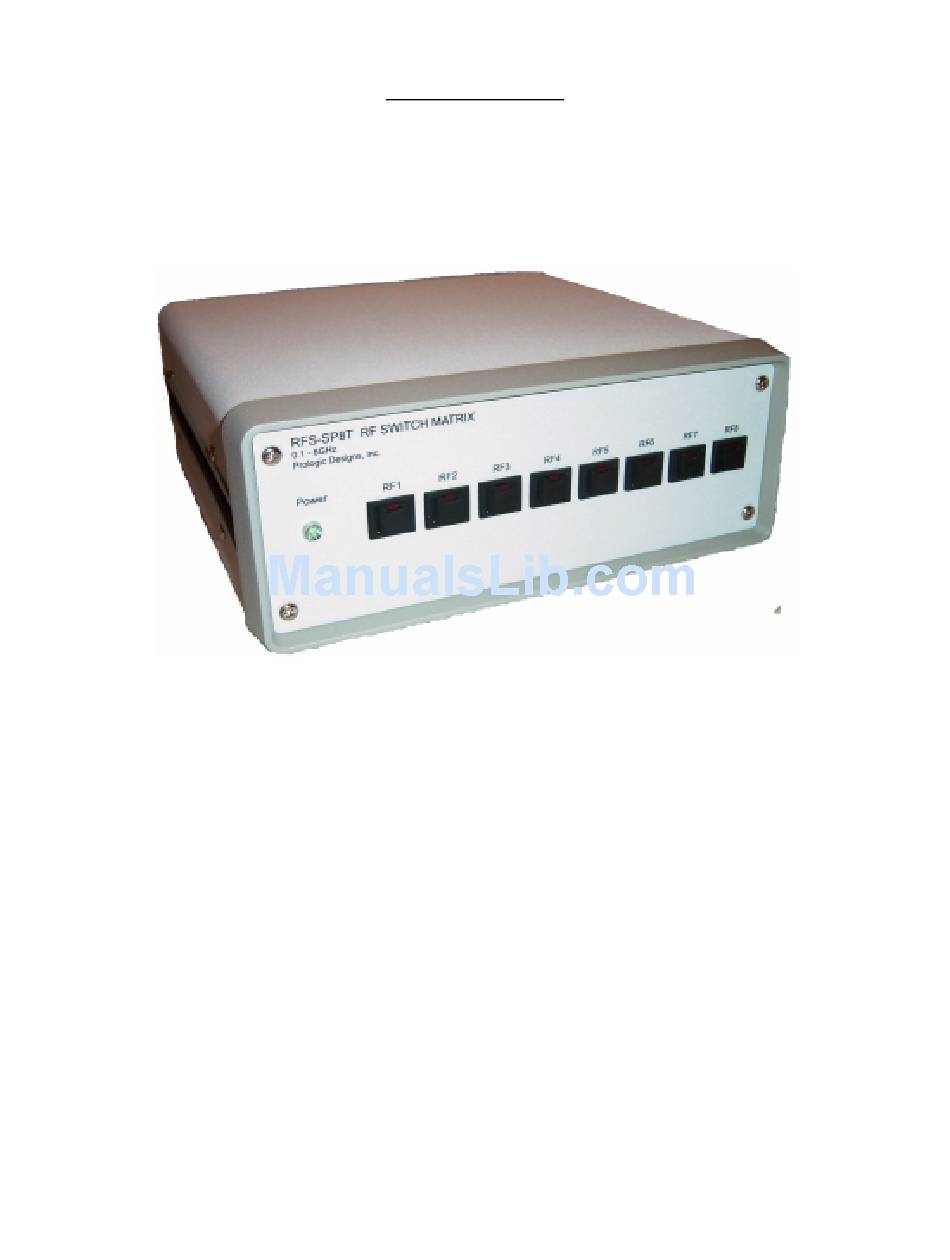

Figure 1 – RFS-SP8T
5
