Battery pack and charger

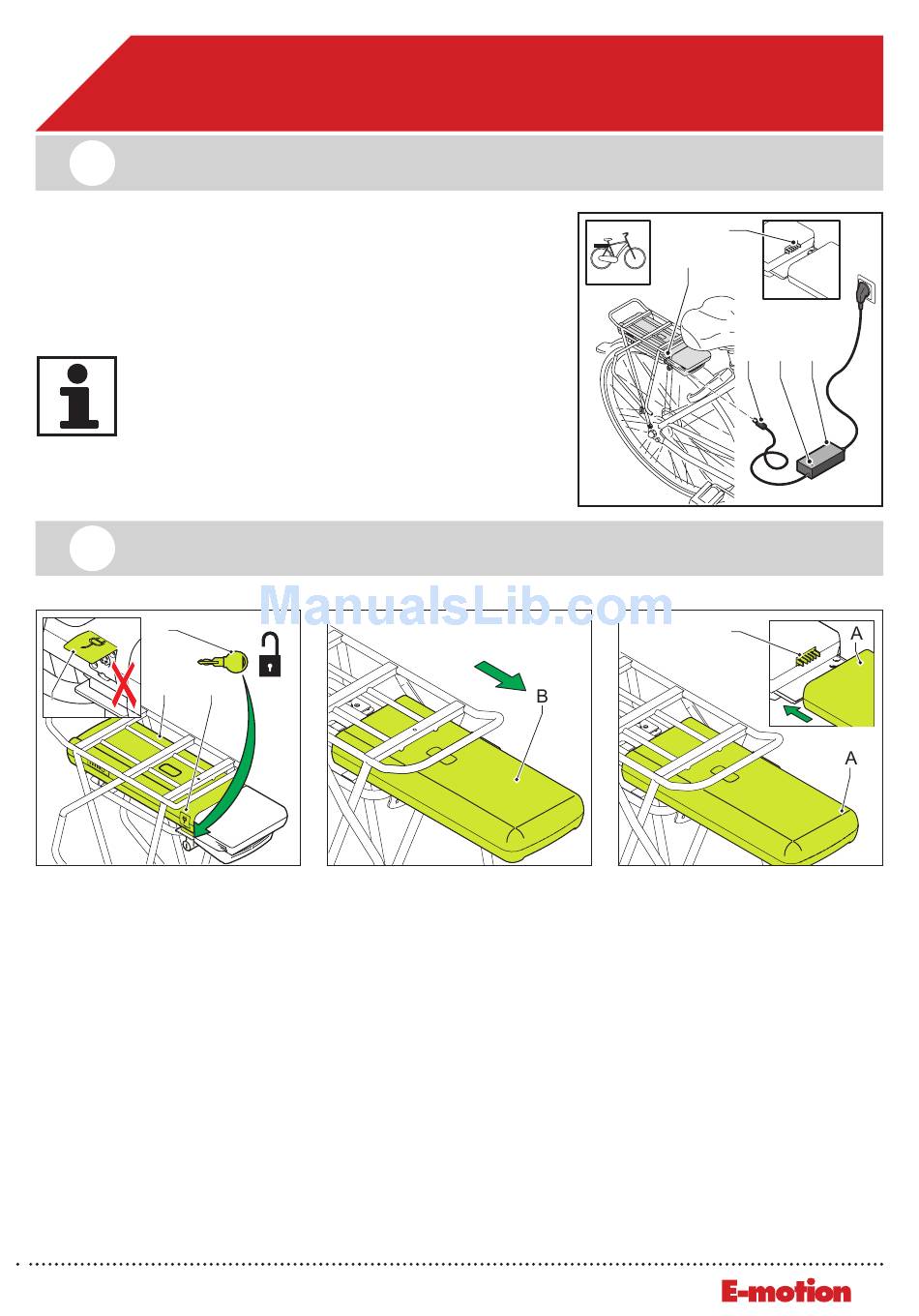

Charge the battery pack

4.2
1. Connect the charger (A) to the mains voltage.
2. Connect the plug (B) of the charger to the contact point of the battery
pack (C).
3. When you charge, the light (D) is red. When the battery pack is fully
charged the light turns green. The charge is stopped automatically
after 24 hours. The light on the charger remains green.
•
A full charge will take about 4.5 hours.
•
The battery pack can be charged both in and outside
the bicycle.
•
When placing back, pay attention to the contact
points of the docking station (E).

Take out the battery pack under rear rack

4.3
A
B C
C
The battery pack has been secured
against theft with a lock.
•
Insert the key (A) supplied in the
lock of the battery pack (B) and turn
it 180 degrees.
•
Make sure that the cover (C) of the
charging plug is closed.
A
B
C
•
Carefully slide the battery pack (B)
out of the luggage carrier.
•
Always use both hands to pick the
battery pack, to prevent it from
falling.
•
If you transport the bike in a car,
always take the battery pack out of
the luggage carrier.
Electrical System Technical Manual
C
•
Carefully slide the battery pack (A)
into the luggage carrier. Here pay
B
attention to the contact points of
the battery pack and of the docking
station (B).
E
C
B D A
B
A
