Handle bar control unit

Functions of the handle bar control unit

2.1
Switch the peddling assistance
A
on and off
Use the on/off button (A) to switch the
peddling assistance on and off. You can
switch the peddling assistance on and off at
any moment, even while cycling. To switch
on, press the on/off button for one second.
To switch off, press the on/off button for
three seconds.
Change the peddling
B
assistance level
You can set the peddling assistance
level using the + and – buttons (Power
mode). There are five peddling assistance
levels. You can always indicate with the
+ and – buttons whether you want more
or less peddling assistance. The peddling
assistance is by default set to the third level.
When putting away the bicycle it is important
to set the peddling assistance to zero. The
throttle will still work then.
Peddling assistance level
C
display
The peddling assistance level is displayed
on the handle bar control unit by means of
five LEDs (C).
Indication state of charge
D
display
The indication of the state of charge of the
battery pack is displayed on the handle bar
control unit by means of five LEDs (D).
NB
When the battery pack has to deliver much energy, for example when using the throttle or a high peddling assistance
level, the charge level may suddenly drop two or three steps because of a temporary drop of the voltage of the battery
pack. This does not necessarily mean that the state of charge has really decreased that much. The best indication of
the state of charge is indicated when the throttle is not used and a low peddling assistance is applied.
NB
The indication of the state of charge is determined by a simple measurement system, which gives the best indication
when the battery pack has been fully charged. As the battery pack discharges, the indication on the display becomes
less accurate. This effect is the strongest when the temperature of the environment is low. The indication of the state
of charge on the batterypack, on the contrary, uses a more advanced measurement system and is more accurate in
all cases.

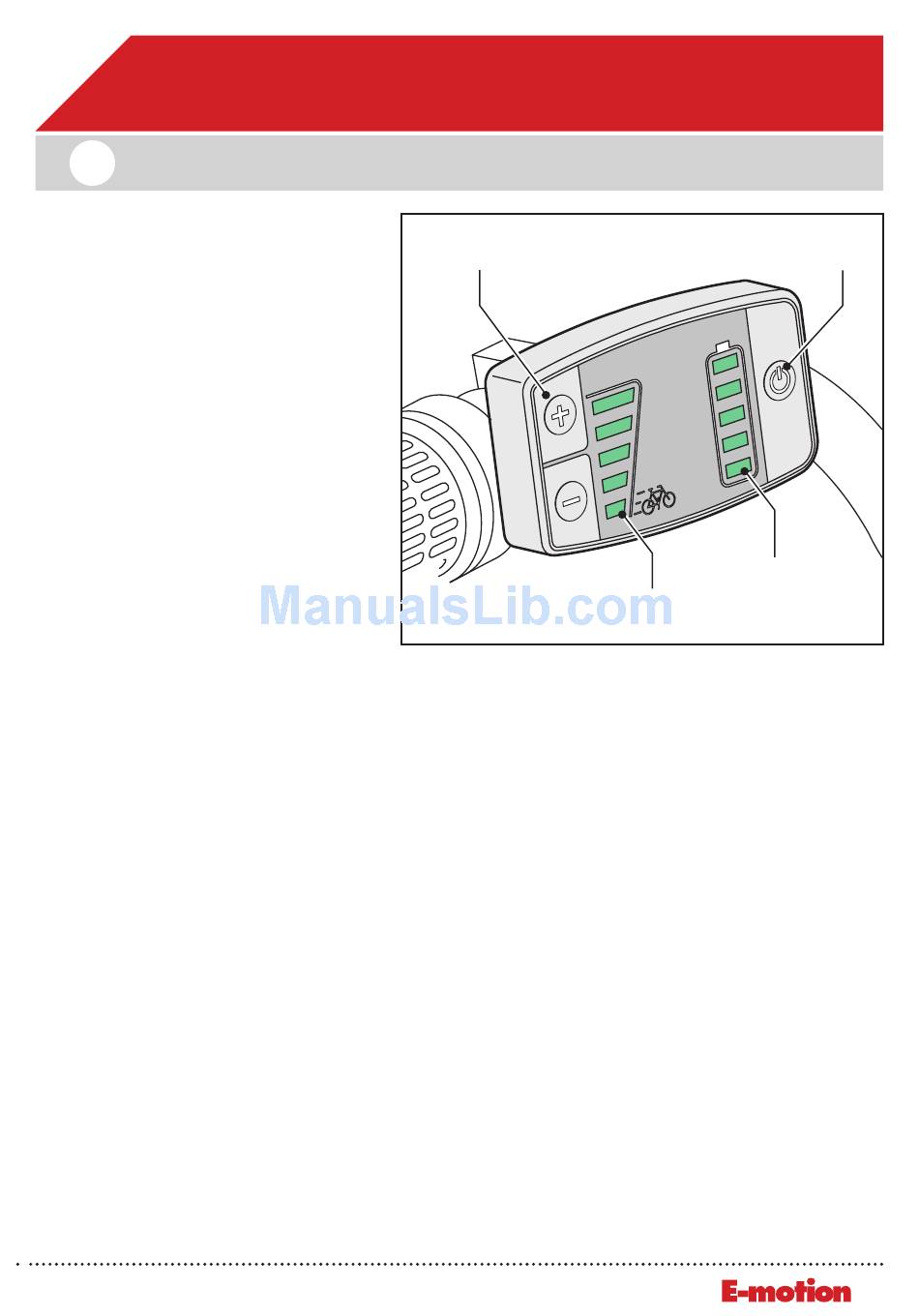

B
A Switch the peddling assistance on and off
B Change the peddling assistance level
C Peddling assistance level display
D Indication state of charge display
The e-bike will switch off automatically when it is not used for over
10 minutes.
