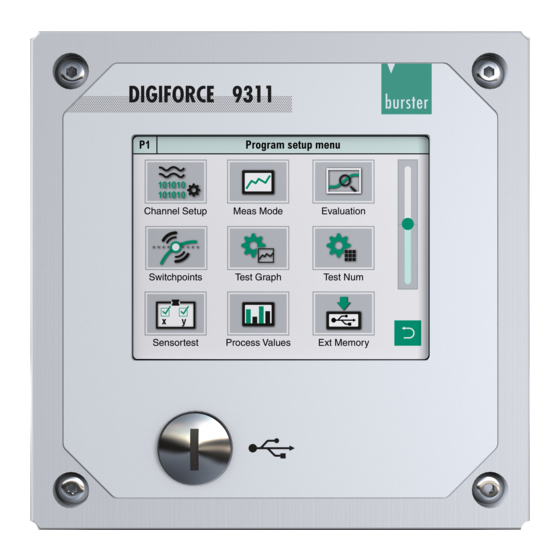

Page 1 OPERATION MANUAL ® DIGIFORCE 9311 Interfaces manual Manufacturer: © 2016 burster burster praezisionsmesstechnik gmbh & co kg praezisionsmesstechnik gmbh & co kg All rights reserved Talstraße 1 - 5 P.O.Box 1432 D-76593 Gernsbach D-76593 Gernsbach Germany Germany Valid from: 14.11.2016 Tel.: (+49) 07224 645-0...
Page 2 (hereinafter referred to as the "product") are the result of targeted development and meticulous research. From the date of delivery, burster provides a warranty for the proper condition and functioning of these products covering material and production defects for the period specified in the warranty document accompanying the product.
Page 3: Table Of Contents
Contents For your safety Symbols used in the instruction manual ..................10 1.1.1 Signal words ........................ 10 1.1.2 Pictograms ........................10 Symbols and precautionary statements on the instrument ............11 Introduction General safety instructions......................12 Intended use ..........................13 Electromagnetic compatibility...................... 13 2.3.1 Interference immunity ....................
Page 4 Assigning function keys ....................... 37 4.4.1 FKEY - Set or query function key assignments ............37 4.4.2 FKAU - Always hide or show function keys ..............38 PLC outputs/inputs ........................39 4.5.1 SPSA - Set selectable PLC output assignments ............39 4.5.2 PCLO - Set or reset the PLC output signal OUT_PC_LOGGING .......
Page 5 4.16.4 FSER - Checks whether a serial number has been programmed in the Fieldbus board flash memory ..................... 59 4.16.5 FMAC - Checks whether the MAC addresses have been programmed in the Fieldbus board flash memory ..................60 4.17 EtherNet/IP settings ........................61 4.17.1 ETHI - EtherNet/IP settings ..................
Page 6 4.20.10 TAWA - Set or query tare warning ................112 4.20.11 TAWG - Set or query tare warning limit ..............114 4.20.12 TARA - Perform tare ....................116 4.20.13 TAWE - Set or query tare value ................. 117 4.21 Standard signal input ........................ 118 4.21.1 NOEI - Set or query standard signal input range............
Page 7 4.26.8 TREI - Query the curve entry values of a trapezoid window ........172 4.26.9 TRAU - Query the curve exit values of a trapezoid window ........173 4.27 Evaluating envelopes ........................ 174 4.27.1 HKST - Envelopes ON/OFF ..................174 4.27.2 HKGR - Set or query start and end values for envelopes .........
Page 8 4.33.2 TESA - Switching signals ON/OFF in test mode ............219 4.33.3 MESS - Fetch current readings ................. 220 4.33.4 SPSI - Fetch PLC inputs .................... 221 4.33.5 SPSO - Set PLC outputs ................... 221 4.34 Record errors/events in the logfile .................... 223 4.34.1 LOGS - Port operation logging ON/OFF ..............
Page 9 4.39.2 MSKA - Enter or query manual scaling ..............260 4.40 Reference curve ........................262 4.40.1 RFAN - Show/hide reference curve ................262 4.40.2 RANZ - Number of value pairs for reference curve ........... 263 4.40.3 REFX - The X coordinates of the reference curve from channel X ......265 4.40.4 REFY - The Y coordinates of the reference curve from channel Y ......
Page 10: For Your Safety
For your safety ® The following symbols on the DIGIFORCE 9311 and in this operation manual warn of hazards. Symbols used in the instruction manual 1.1.1 Signal words The following signal words are used in the operation manual according to the specified hazard classification.
Page 11: Symbols And Precautionary Statements On The Instrument
Symbols and precautionary statements on the instrument Symbol Description Hazard warning Disconnect the power plug before opening – Follow safety instructions – Professional servicing only Warning ! To prevent Warning of electrical shock hazard electrical shock do Do not open the unit. not open device.
Page 12: Introduction
Introduction General safety instructions DANGER Warning concerning installation of the device and software Installation of the device and the interface must be carried out by qualified personnel only. Qualified personnel meets the following requirements: • You are familiar with the safety designs used in automation engineering, and understand how to deal with them in your capacity as configuration engineer.
Page 13: Intended Use
EN 61000-3-3:2013 Notes on CE labeling burster equipment carrying the CE mark meets the requirements of the EU directives and the harmonized European standards (EN) cited therein. The EU declarations of conformity are available to the relevant authorities as specified in the directives.
Page 14: General Communication Info
General communication info ® The DIGIFORCE 9311 lets you control certain device functions from a remote host and read out all evaluation and measurement results. There are two communication modes to choose from: USB or Ethernet (UDP protocol). The configuration parameters for each port can be found in operation manual ®...
Page 15: The Communications Protocol
You must enter the following settings for the COM port parameters Baud rate 921600 Data bits Stop bits Parity None Block check Disabled* - or Enabled * Default setting after initialisation, can be changed in the menu “Basic Setup” > “Interfaces” > “USB” General procedure under Windows Open COM port Configure COM port (set baud rate, data/stop bits, parity, timeout)
Page 16: Selection With Response
When establishing a connection, the control station can either • define a slave to establish a connection, i.e. send a command to the addressed slave • poll in order to relinquish its master status to a secondary station, i.e. query for a response to a previously sent command and hence assign the transmit right to the slave.
Page 17 Example This example queries the INFO command with enabled and disabled block check. Controller sends: <EOT> to make sure that any existing connections are terminated and the 9311 receive buffer is cleared. Controller sends: 00sr<ENQ> Selection: controller wishes to address the 9311 with address 0 9311 replies with: <ACK>...
Page 18: Fast Selection
The host controller unaddresses the device in order to start a polling sequence immediately. Controller sends: 00po<ENQ> The 9311 with address 0 is requested to send all existing responses 9311 replies with: Digiforce 9311<NUL>,931101<NUL>,V201602<NUL>, <STX> V201501<NUL>,4<NUL>,EIP V1601<NUL>,0<NUL>, 12.05.2016<NUL><LF><ETX> This is the correct response to the info? command Controller sends: <...
Page 19: Polling
3.1.5 Polling The control station sends a polling supervisory sequence. The polling supervisory sequence is used to retrieve requested data from the 9311. The prefix selects a single station. <ENQ> defines the end of the polling supervisory sequence: The polling supervisory sequence of the 9311 has the following format: <Address>po<ENQ>...
Page 20: Timers
C++ example unsigned char CalculateBCC(char *chrCmd) unsigned char chrBCC = 0; for (int i = 0; i < (int)strlen(chrCmd); i++) // Calculate checksum chrBCC ^= chrCmd[i]; // Form XOR from all characters return (chrBCC | 0x80);// 0x80 to prevent identification as control character The slave station sends one of two possible responses after detecting the [BCC]: •...
Page 21: Communication Via The Ethernet Port
Communication via the Ethernet port The Ethernet RJ45 port is on the rear side of the device. Please use a Cat 5e or higher patch cable to connect the device to your Ethernet network. The relevant Ethernet parameters like IP address and port number can be found in the following device menu: "Configuration Main Menu"...
Page 22 Datagram format – Device response to request with data (e.g. INFO?; see example below) <STX>Code,ID,Status,Number,DataEndCharBCC Parameter Value Meaning <STX> 0x02 ASCII character STX Message is not encrypted bit 0 Message is encrypted (for internal purposes) Code Other command bit 1 IPEX! Command Sequential number 1–999 (ASCII).
Page 23 Datagram format – Device response to command with acknowledgement (see example below) <STX>Code,ID,Status,Number,Acknowledgement<LF><ETX>BCC Parameter Value Meaning <STX> 0x02 ASCII character STX Message is not encrypted bit 0 Message is encrypted (for internal purposes) Code Other command bit 1 IPEX! command Sequential number 1-999 (ASCII).
Page 24 Data splitting for fragmented transfer (if data >= 1450 bytes) 1. Fragment: <STX>Code,ID,Status,0,Data 1...1450<LF><ENQ>BCC 2. Fragment: <STX>Code,ID,Status,1,Data 1451...2900<LF><ENQ>BCC 3. Fragment: <STX>Code,ID,Status,2,Data 2901...3000<LF><ENQ>BCC NOTICE The host must acknowledge every datagram ending on <ENQ> with a special datagram before it receives the next datagram from the 9311. of 274...
Page 25: Commands
Commands Before executing individual commands, you should first familiarize yourself with their structure. Every command has a name that always consists of four letters. When data are read out of the device, a question mark (e.g. INFO?) is appended to the command name. This is an exclamation mark (e.g. STAN!) when data are being written.
Page 26 Device response to a command with 3 parameters <STX>P1<NUL>,P2<NUL>,P3<NUL><LF><ETX> Parameter Value Meaning P1, P2, P3 Parameters 1 to 3 <NUL> 0x00 ASCII character <NUL>, [<LF>] 0x0A Line Feed NOTICE • There are no <NUL> characters for the commands KUSX, KUSY, HKRX, HRYM, HDMI, HDMA, DXKO, DYKO, REFX, REFY •...
Page 27: Device Status
Device status 4.1.1 FSTA - 9311 Query device status Execute - Query form only Query FSTA? With the command FSTA? queries the device error status. Once read out, the error status is reset. The error status is a bit-coded 32-bit word. More than one bit can be set when multiple events have occurred since the last readout.
Page 28 Meaning of parameter Pn Parameter Meaning Value Device error 0x00000000 No error statuses 0x00000001 PREFIX addressing error 0x00000002 Enquiry received in slave mode 0x00000004 Block check error 0x00000008 Command error 0x00000010 Parameter error 0x00000020 Timeout Receive Timer 0x00000040 Timeout Response Timer 0x00000080 Invalid ! or ? 0x00000100...
Page 29: General Commands
General commands 4.2.1 GOTO - Go to Measurement or Setup menu Execute GOTO! This goes to a measurement or setup menu during port communication. Except for the UPDA command, this is the only command that updates the device’s process display. The command GOTO! defines the menu that is opened during port communication.
Page 30: Mefr - Enable Start Of Measurement On/Off
Meaning of parameter Pn Parameter Meaning Value Updating the display Query UPDA? This command does not have a query form. 4.2.3 MEFR - Enable start of measurement ON/OFF Caution: Command not allowed when measurement running. Execute MEFR! The command MEFR! locks the start of a new measurement. Host sends: <Address>sr<STX>MEFR! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 31: Eiza - Query Or Reset Power Up Counter
4.2.4 EIZA - Query or reset power up counter This counter increments every time the device is switched ON. Execute EIZA! The command EIZA! resets the power up counter to 0. Host sends: <Address>sr<STX>EIZA! <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 32 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Query EIGE? The command EIGE? queries “Counter setting changed”. If “Counter setting changed” for the current measurement program Host sends: <Address>sr<STX>EIGE?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 33: Minimum Setup Menu
Minimum setup menu 4.3.1 PRNR - Select measurement program Execute PRNR! The PRNR! command selects a measurement program Host sends: <Address>sr<STX>PRNR! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Query PRNR? The command PRNR? reads out the set measurement program.
Page 34 If 2 parameters, a name is assigned to the measurement program corresponding to the transferred number Host sends: <Address>sr<STX>PNAM! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the measurement program A value between 0 and 15. Measuring program name ASCII string <= 20 characters Query PNAN?
Page 35: Rspr - Reset Measurement Program Statistics
Meaning of parameter Pn Parameter Meaning Value Number of the measurement program A value between 0 and 15. Measuring program name ASCII string <= 20 characters 4.3.3 RSPR - Reset measurement program statistics Execute RSPR! The RSPR! command resets a measurement program’s statistics If no parameters, reset the statistics of the measurement program currently selected.
Page 36: Cmpr - Checks The Measurement Program Names
4.3.5 CMPR - Checks the measurement program names Execute CMPR! This command does not have a ! form. Query CMPR? The command CMPR? checks all measurement program names for differences form the default Host sends: <Address>sr<STX>CMPR?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 37: Assigning Function Keys
Assigning function keys 4.4.1 FKEY - Set or query function key assignments Execute FKEY! The FKEY! command sets the F key assignments 1 to 3 in the measurement menus. Host sends: <Address>sr<STX>FKEY! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 38: Fkau - Always Hide Or Show Function Keys
Meaning of parameter Pn Parameter Meaning Value F key number 0 -> F1 key 1 -> F2 key 2 -> F3 key Assignment 0 -> OFF 1 -> Increment measurement program 2 -> Decrement measurement program 3 -> Tare X 4 ->...
Page 39: Plc Outputs/Inputs
PLC outputs/inputs 4.5.1 SPSA - Set selectable PLC output assignments Execute SPSA! The SPSA! command sets the selectable PLC output assignments. Host sends: <Address>sr<STX>SPSA! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the PLC output 0 ->...
Page 40: Pclo - Set Or Reset The Plc Output Signal Out_Pc_Logging
Meaning of parameter Pn Parameter Meaning Value Number of the PLC 0 -> Output 1 (pin 20) output 1 -> Output 2 (pin 21) 2 -> Output 3 (pin 22) 3 -> Output 4 (pin 23) 4 -> Output 5 (pin 24) 5 ->...
Page 41: Spic - Set Selectable Plc Input Assignments
4.5.3 SPIC - Set selectable PLC input assignments Execute SPIC! The SPIC! command sets the selectable PLC input assignments. Host sends: <Address>sr<STX>SPIC! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the PLC input 0 ->...
Page 42: Access Permissions
Meaning of parameter Pn Parameter Meaning Value Number of the PLC input 0 -> Input 1 (pin 4) 1 -> Input 2 (pin 5) 2 -> Input 3 (pin 6) Assignment of the PLC 0 -> IN_TARE_X input 1 -> IN_TARE_Y 2 ->...
Page 43: Mres - Reset Master Password To Default
4.6.2 MRES - Reset master password to default Execute MRES! The MRES! command resets the master password to its default Host sends: <Address>sr<STX>MRES! <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Query MPAS? This command does not have a ? form. 4.6.3 UPAS - Enter or query user password Execute UPAS!
Page 44: Pasp - Query Or Enable/Disable Password Protection
4.6.4 PASP - Query or enable/disable password protection Execute PASP! The PASP! command enables or disables password protection Host sends: <Address>sr<STX>PASP! P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Setting password protection 0 -> Password protection OFF 1 ->...
Page 45 Meaning of parameter Pn Parameter Meaning Value Access level number 0 -> Basic setup 1 -> Program selection 2 -> Program copy 3 -> Curve analysis 4 -> Channel settings 5 -> Measurement mode 6 -> Evaluation 7 -> Switching points 8 ->...
Page 46: Enabling Measurement Menus
Enabling measurement menus 4.7.1 MFRE - Measurement menu enable Execute MFRE! The MFRE! command enables or locks the various measurement menus. Host sends: <Address>sr<STX>MFRE! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the measurement 0 ->...
Page 47: Info Menu
<ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Device ID Digiforce 9311 Serial number Max 10 character ASCII string Device software version Max 15 character ASCII string Boot software version Max 15 character ASCII string Fieldbus ID 0 ->...
Page 48: Sern - Serial Number
Analogue card ID 0 -> ANALOGUE_STRAIN_GAUGE_POTENTIOMETER 1 -> ANALOGUE_PIEZO_POTENTIOMETER Analogue card calibration Max 10 character ASCII string date 4.8.2 SERN - Serial number Query SERN? The SERN? command queries the serial number. Host sends: <Address>sr<STX>SERN? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 49: Lcd Setting
DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value The station name Max 15 character ASCII string LCD setting 4.9.1 LCDK - Set LCD contrast Execute LCDK! The LCDK! command sets the LCD display contrast. Host sends: <Address>sr<STX>LCDK! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 50: Date And Time
4.10 Date and time 4.10.1 DATE - Set or query date Execute DATE! The DATE! command sets the RTC date. Host sends: <Address>sr<STX>DATE! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value The date String in the form: dd/mm/yyyy Example: 23/07/2009 Query DATE? The DATE? command queries the RTC date.
Page 51: User Languages
Query TIME? The TIME? command queries the RTC time. Host sends: <Address>sr<STX> TIME? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value The time of day String in the form: hh:mm:ss Example: 08:11:34 4.11...
Page 52: Acknowledgement Function
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Operating language 0 -> German 1 -> English 2 -> French 3 -> Spanish 4 -> Italian 5 -> Chinese 4.12 Acknowledgement function 4.12.1 AMPL - ACK function ON/OFF Execute AMPL!
Page 53: Qnio - Nok Ack On/Off
Execute QUIO! The QUIO! command sets OK ACK. Host sends: <Address>sr<STX> QUIO! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Setting OK ACK 0 -> OFF 1 -> ON Query QUIO? The QUIO? command queries the OK ACK setting. Host sends: <Address>sr<STX>...
Page 54: Lasu - Buzzer Volume
Query QNIO? The QNIO? command queries the NOK ACK setting. Host sends: <Address>sr<STX> QNIO? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Setting NOK ACK 0 ->...
Page 55: Fieldbusses
Meaning of parameter Pn Parameter Meaning Value Buzzer volume Value between 0 and 10 10 -> Max volume 4.13 Fieldbusses 4.13.1 FELD - Which Fieldbus is implemented on the NETX circuit board Execute - There is no ! form Query FELD? The FELD? command queries which Fieldbus is implemented.
Page 56: Profibus Settings
Query PBIN? The PBIN? command queries the source of device control. Host sends: <Address>sr<STX> PBIN? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Source of device control 0 ->...
Page 57: Pinf - Profibus Info
Parameter Meaning Value PROFIBUS address Value between 0 and 126 4.14.2 PINF - PROFIBUS info Execute - There is no ! form Query PINF? The PINF? command queries the PROFIBUS information. Host sends: <Address>sr<STX> PINF? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 58: Profinet Settings
Meaning of parameter Pn Parameter Meaning Value Version Max 20 character string EtherCAST operating state 0 -> INIT 1 -> PREOP 2 -> SAVEOP 3 -> OP 4 -> BOOTSTRAP 5 -> Invalid state 4.16 PROFINET settings 4.16.1 PNIF - PROFINET info Execute - There is no ! form Query PNIF? The PNIF? command queries the PROFINET information.
Page 59: Fbma - Enter And Query The Fieldbus Board Mac Addresses
DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Fieldbus board serial number Max 20 character string 4.16.3 FBMA - Enter and query the Fieldbus board MAC addresses Query FBMA? FBMA? queries the MAC addresses received form the Fieldbus board during booting. Host sends: <Address>sr<STX>...
Page 60: Fmac - Checks Whether The Mac Addresses Have Been Programmed In The Fieldbus Board Flash Memory
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value 0  There is no serial number Is the serial number programmed into 1  There is a serial number the Fieldbus board flash memory? Otherwise, if none is programmed in The serial number as a string.
Page 61: Ethernet/Ip Settings
4.17 EtherNet/IP settings 4.17.1 ETHI - EtherNet/IP settings Execute ETHI! The ETHI! command can transfer the Ethernet/IP IP setting. Host sends: <Address>sr<STX> ETHI! P1,P2,P3 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value EtherNet/IP IP address 15 character string in the form xxx.xxx.xxx.xxx EtherNet/IP subnet mask...
Page 62: Order Sheet
4.18 Order sheet 4.18.1 AUWE - Order sheet: Operator Execute AUWE! The AUWE! command lets the user enter the worker’s name given on the order sheet. Host sends: <Address>sr<STX> AUWE! P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 63: Auch - Order Sheet: Batch
Query AUNR? The AUNR? command queries the order number given on the order sheet. Host sends: <Address>sr<STX> AUNR? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 64: Auba - Order Sheet: Component Identification
4.18.4 AUBA - Order sheet: Component identification Execute AUBA! The AUBA! command lets the user enter the component identification given on the order sheet. Host sends: <Address>sr<STX> AUBA! P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 65: Aus2 - Order Sheet Serial Number 2
Meaning of parameter Pn Parameter Meaning Value Serial number 1 Max 64 character ASCII string Query AUS1? The AUS1? command queries serial number 1 given on the order sheet. Host sends: <Address>sr<STX> AUS1? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ>...
Page 66: Measurement Mode
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Serial number 2 Max 64 character ASCII string 4.19 Measurement mode 4.19.1 ABTX - X sampling ON/OFF Execute ABTX! The ABTX! command sets X sampling. If 1 parameter, the X sampling for the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 67: Abty - Y Sampling On/Off
DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value The X sampling 0 -> OFF 1 -> ON If 1 parameter, the X sampling is queried of the measurement program corresponding to the transferred number.
Page 68 Meaning of parameter Pn Parameter Meaning Value The Y sampling 0 -> OFF 1 -> ON If 2 parameters, the Y sampling is set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> ABTY! P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 69: Abtz - Time Sampling On/Off
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 The Y sampling 0 -> OFF 1 -> ON 4.19.3 ABTZ - Time sampling ON/OFF Execute ABTZ! The ABTZ! command sets time sampling. If 1 parameter, the time sampling for the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 70: Absx - Set Or Query X Sample Rate
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value The time sampling 0 -> OFF 1 -> ON If 1 parameter, the time sampling is queried of the measurement program corresponding to the transferred number.
Page 71 If 2 parameters, the X sample rate is set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> ABSX! P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 X sample rate Floating point value 0 to 999999 Query ABSX?
Page 72: Absy - Set Or Query Y Sample Rate
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 X sample rate Floating point value 0 to 999999 4.19.5 ABSY - Set or query Y sample rate Execute ABSY! The ABSY! command sets Y sample rate. If 1 parameter, the Y sample rate for the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 73: Absz - Set Or Query Time Sample Rate
Meaning of parameter Pn Parameter Meaning Value Y sample rate Floating point value 0 to 999999 If 1 parameter, the Y sample rate is set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> ABSY? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 74 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Time sample rate Floating point value 0.0001 to 99999 Query ABSZ? The ABSZ? command queries time sample rate. If no parameter, the time sample rate for the currently selected measurement program is queried Host sends: <Address>sr<STX>...
Page 75: Bzug - Set Or Query Reference
4.19.7 BZUG - Set or query reference Execute BZUG! The BZUG! command sets the reference. If 1 parameter, the reference for the currently selected measurement program is set Host sends: <Address>sr<STX> BZUG! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 76 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Reference 0 -> Absolute 1 -> Final force 2 -> Y reference line above reference 3 -> Y reference line below reference 4 ->...
Page 77: Bezy - Set Or Query Reference Line Y
4.19.8 BEZY - Set or query reference line Y Execute BEZY! The BEZY! command sets the Y reference line. If 1 parameter, the Y reference line for the currently selected measurement program is set Host sends: <Address>sr<STX> BEZY! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 78: Triy - Set Or Query Trigger Line Y
Meaning of parameter Pn Parameter Meaning Value Y reference line Floating point value -999999 to 999999 If 1 parameter, the Y reference line is queried for the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> BEZY? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 79 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Y trigger line Floating point value -999999 to 999999 Query TRIY? The TRIY? command queries the Y trigger line. If no parameter, the Y trigger line for the currently selected measurement program is queried Host sends: <Address>sr<STX>...
Page 80: Upkt - Set Or Query Return Point
4.19.10 UPKT - Set or query return point Execute UPKT! The UPKT! command sets the return point. If 1 parameter, the return point for the currently selected measurement program is set Host sends: <Address>sr<STX> UPKT! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 81: Kerf - Set Or Query 'Record Curve To
Meaning of parameter Pn Parameter Meaning Value Return point 0 -> XMIN 1 -> XMAX 2 -> YMIN 3 -> YMAX If 1 parameter, the return point is queried for the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX>...
Page 82 If 2 parameters, the recorded curve section is set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> KERF! P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Recorded curve section 0 ->...
Page 83: Stam - Set Or Query Start Mode
Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Recorded curve section 0 -> Complete curve 1 -> To return point 4.19.12 STAM - Set or query start mode Execute STAM! The STAM! command sets the start mode. If 1 parameter, the start mode for the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 84 Query STAM? The STAM? command queries the start mode. If no parameter, the start mode for the currently selected measurement program is queried Host sends: <Address>sr<STX> STAM? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 85: Stom - Set Or Query Stop Mode
4.19.13 STOM - Set or query stop mode Execute STOM! The STOM! command sets the stop mode. If 1 parameter, the stop mode for the currently selected measurement program is set Host sends: <Address>sr<STX> STOM! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 86 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Stop mode 0 -> External 1 -> X above reference 2 -> X below reference 3 -> Y above reference 4 -> Y below reference 5 ->...
Page 87: Stax - Set Or Query Start Value X
4.19.14 STAX - Set or query start value X Execute STAX! The STAX! command sets the X start value. If 1 parameter, the X start value for the currently selected measurement program is set Host sends: <Address>sr<STX> STAX! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 88: Stay - Set Or Query Start Value Y
If 1 parameter, the X start value is queried for the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> STAX? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 89: Stox - Set Or Query X Stop Value
Query STAY? The STAY? command queries the Y start value. If no parameter, the Y start value for the currently selected measurement program is queried Host sends: <Address>sr<STX> STAY? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 90 Meaning of parameter Pn Parameter Meaning Value X stop value Floating point value -999999 to 999999 If 2 parameters, the X stop value is set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> STOX! P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 91: Stoy - Set Or Query Y Stop Value
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 X stop value Floating point value -999999 to 999999 4.19.17 STOY - Set or query Y stop value Execute STOY! The STOY! command sets the Y stop value.
Page 92: Stot - Set Or Query Stop Timeout Value
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Y1 stop value Floating point value -999999 to 999999 If 1 parameter, the Y stop value is queried for the measurement program corresponding to the transferred number.
Page 93 If 2 parameters, the stop timeout value is set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> STOT! P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Stop timeout value Floating point value 0.0001 to 99999...
Page 94: Stoa - Set Or Query Number Of Readings Stop Mode
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Stop timeout value Floating point value 0.0001 to 99999 4.19.19 STOA - Set or query number of readings stop mode Execute STOA! The STOA! command sets the number of readings stop mode. If 1 parameter, the number of readings stop mode for the currently selected measurement program is Host sends: <Address>sr<STX>...
Page 95: Channel Settings
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of readings stop mode Integer value between 0 and 5000 If 1 parameter, the number of readings stop mode is queried for the measurement program corresponding to the transferred number.
Page 96: Kana - Set Channels (Connection, Sensor)
Query KAGL? The KAGL? command queries the channel settings for global or program dependent Host sends: <Address>sr<STX>KAGL?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Global or program dependent...
Page 97 If 3 parameters, the channels are set of the measurement program corresponding to the transferred number. Host sends: <Address>sr<STX> KANA! P1,P2,P3,<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel X sensor and 0 –>...
Page 98 Meaning of parameter Pn Parameter Meaning Value Channel X sensor 0 –> Connector A, potentiometer and connection 1 -> Connector A, standard signal 2 -> Connector B, strain gauge (only if strain gauge analogue board) 3 -> Connector B, standard signal (only if strain gauge analogue board) 4 ->...
Page 99: Filt - Set Or Query Filters
Channel Y sensor and 0 –> Connector A, potentiometer connection 1 -> Connector A, standard signal 2 -> Connector B, strain gauge (only if strain gauge analogue board) 3 -> Connector B, standard signal (only if strain gauge analogue board) 4 ->...
Page 100 Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Filter 0 -> OFF 1 -> 5 Hz filter 2 -> 10 Hz filter 3 ->...
Page 101 If 2 parameters, the filter for the transferred channel corresponding to the transferred measurement program number is queried. Host sends: <Address>sr<STX> FILT? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 102: Einh - Select Or Query Unit
4.20.4 EINH - Select or query unit Execute EINH! Caution: Not permitted if connection OFF or set to time or resistance. The EINH! command sets the unit for each of the channels. If 2 parameters, the unit for the transferred channel and the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 103 Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Units 0 -> User defined unit 1 1 -> User defined unit 2 2 -> User defined unit 3 3 ->...
Page 104 Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Units 0 -> User defined unit 1 1 -> User defined unit 2 2 -> User defined unit 3 3 -> mm 4 -> N 5 ->...
Page 105: Bein - Set Or Query User Defined Units
4.20.5 BEIN - Set or query user defined units Execute BEIN! The BEIN! command sets the user defined units. If 2 parameters, the user defined units for the currently selected measurement program are set Host sends: <Address>sr<STX> BEIN! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 106: Skal - Scaling; Receive And Implement Values
Meaning of parameter Pn Parameter Meaning Value Number of the user 0, 1, 2 defined units User defined units Max 4 character string If 2 parameters, the user defined units corresponding to the transferred measurement program number are queried. Host sends: <Address>sr<STX>...
Page 107 Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Lower scale Floating-point value between -999999 and 999999 Upper scale Floating-point value between -999999 and 999999 Lower cal Floating-point value between -999999 and 999999 Upper cal Floating-point value between -999999 and 999999 If 3 parameters, the values corresponding to the transferred measurement program number are...
Page 108: Mkal - Teach In Cal Values
Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Lower scale Floating-point value between -999999 and 999999 Upper scale Floating-point value between -999999 and 999999 Lower cal Floating-point value between -999999 and 999999 Upper cal Floating-point value between -999999 and 999999 If 2 parameters, the values corresponding to the transferred measurement program number are...
Page 109: Tabm - Set Or Query Tare At Start Of Measurement
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2 <LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Measured cal value Floating-point value between -999999 and 999999 4.20.8 TABM - Set or query tare at start of measurement Caution: Not permitted if connection set to time or piezo.
Page 110 Query TABM? The TABM? command queries the tare at the start of measurements for each of the channels. If 1 parameter, the tare at the start of measurements for the transferred channel and the currently selected measurement program is queried. Host sends: <Address>sr<STX>...
Page 111: Tavo - Set Or Query Tare Default
4.20.9 TAVO - Set or query tare default Caution: Not permitted if connection set to time or piezo. Execute TAVO! The TAVO! command sets the tare default for each of the channels. If 2 parameters, the tare default for the transferred channel and the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 112: Tawa - Set Or Query Tare Warning
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Tare default Floating-point value between -999999 and 999999 If 2 parameters, the tare default for the transferred channel and the transferred measurement program is queried.
Page 113 Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Tare warning 0 -> OFF 1 -> ON If 3 parameters, the tare warning for the transferred channel and the transferred measurement program is set. Host sends: <Address>sr<STX>...
Page 114: Tawg - Set Or Query Tare Warning Limit
If 2 parameters, the tare warning for the transferred channel and the transferred measurement program is queried. Host sends: <Address>sr<STX> TAWA? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 115 Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Tare warning limit Floating-point value between 1.0 and 20.0 Query TAWG? The TAWG? command queries the tare warning limit for each of the channels. If 1 parameter, the tare warning limit for the transferred channel and the currently selected measurement program is queried.
Page 116: Tara - Perform Tare
Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Tare warning limit Floating-point value between 1.0 and 20.0 4.20.12 TARA - Perform tare Caution: Not permitted if connection set to time or piezo.
Page 117: Tawe - Set Or Query Tare Value
4.20.13 TAWE - Set or query tare value Caution: Not permitted if connection set to time or piezo. This value serves backup purposes. Execute TAWE! The TAWE! command sets the tare for each channel to a particular value. If 2 parameters, the tare value for the transferred channel and the currently selected measurement program is set Host sends: <Address>sr<STX>...
Page 118: Standard Signal Input
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Tared value Floating-point value between -999999 and 999999 If 2 parameters, the tared-off value for the transferred channel and the transferred measurement program is queried.
Page 119 Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Standard signal input range 0 -> 5 V range 1 -> 10 V range If 3 parameters, the standard signal input range for the transferred channel and the transferred measurement program is set.
Page 120: Strain Gauge Sensor
If 2 parameters, the standard signal input range for the transferred channel and the transferred measurement program is queried. Host sends: <Address>sr<STX> NOEI? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 121 If 3 parameters, the strain gauge input range for the transferred channel and the transferred measurement program is set. Host sends: <Address>sr<STX> DMEI! P1,P2,P3<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 ->...
Page 122: Dmnk - Set Or Query Strain Gauge Sensitivity
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Strain gauge input range 0 ->...
Page 123 Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Tare warning limit Floating-point value between 0.01 and 100.0 Query DMNK? The DMNK? command queries the strain gauge sensitivity for each of the channels. If 1 parameter, the strain gauge sensitivity for the transferred channel and the currently selected measurement program is queried.
Page 124: Dmas - Query Strain Gauge Output Level
Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Strain gauge sensitivity Floating-point value between 0.01 and 100.0 4.22.3 DMAS - Query strain gauge output level Caution: Permitted only if strain gauge sensor set.
Page 125: Piezo Sensor
Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Strain gauge output level Floating-point value between 0 and 999999 4.23 Piezo sensor 4.23.1 PIEI - Set or query piezo input range Caution: Permitted only if piezo set.
Page 126 Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Channel number 0 -> Channel X 1 -> Channel Y Piezo input range 0 -> 1nC range 1 -> 2nC range 2 -> 5nC range 3 ->...
Page 127: Pikz - Open/Close Piezo Input Short Circuit
If 2 parameters, the piezo input range for the transferred channel and the transferred measurement program is queried. Host sends: <Address>sr<STX> PIEI? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 128: Evaluating The Square Window
4.24 Evaluating the square window 4.24.1 FEST - Switch ON/OFF square window Execute FEST! The FEST! command enables or disables a square window. If 2 parameters, the square window for the transferred window number and the currently selected measurement program is enabled or disabled. Host sends: <Address>sr<STX>...
Page 129: Fgrz - Set Or Query Square Window Limits
Meaning of parameter Pn Parameter Meaning Value Window number 1 to 3 Window ON/OFF 0 -> OFF 1 -> ON If 2 parameters, the square window for the transferred window number and the transferred measurement program is queried for its enabled/disabled status. Host sends: <Address>sr<STX>...
Page 130 If 6 parameters, the window limits are set with the transferred window number and the transferred measurement program Host sends: <Address>sr<STX> FGRZ! P1,P2,P3,P4,P5,P6<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Window number 1 to 3...
Page 131: Feau - Set Or Query Square Window Entry And Exit Sides
If 2 parameters, the window limits are queried with the transferred window number and the transferred measurement program Host sends: <Address>sr<STX> FGRZ? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4,P5,P6<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 132 1 -> Yes Exit right 0 -> No 1 -> Yes Exit bottom 0 -> No 1 -> Yes Exit top 0 -> No 1 -> Yes If 10 parameters, the entry and exit sides are set for the window with the transferred window number and the transferred measurement program.
Page 133 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2,P3,P4,P5,P6,P7,P8,P9<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Window number 1 to 3 Entry left 0 -> No 1 -> Yes Entry right 0 -> No 1 -> Yes Entry bottom 0 ->...
Page 134: Fkab - Curve Section Over Which A Square Window Is Evaluated
Entry top 0 -> No 1 -> Yes Exit left 0 -> No 1 -> Yes Exit right 0 -> No 1 -> Yes Exit bottom 0 -> No 1 -> Yes Exit top 0 -> No 1 -> Yes 4.24.4 FKAB - Curve section over which a square window is evaluated Execute FKAB! The FKAB! command sets the curve section over which a square window is evaluated.
Page 135 Query FKAB? The FKAB? command queries the curve section over which a square window is evaluated. If 1 parameter, the curve section is queried for the square window with the transferred window number and the currently selected measurement program. Host sends: <Address>sr<STX>...
Page 136: Fobe - Set Online Evaluation For A Square Window
4.24.5 FOBE - Set online evaluation for a square window Execute FOBE! Caution: Only two windows per measurement program can be activated for the online evaluation! The FOBE! command sets the online evaluation of a square window. If 2 parameters, the online evaluation is set for the square window with the transferred window number and the currently selected measurement program.
Page 137: Folv - Set Online Signal Level For A Square Window
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Window number 1 to 3 Online evaluation 0 -> OFF 1 -> Left – Right 2 -> Right – Left 3 -> Bottom – Top 4 ->...
Page 138 Host sends: <Address>sr<STX> FOLV! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Window number 1 to 3 Online signal level 0 -> Low active 1 -> High active If 3 parameters, the online signal level is set for the square window with the transferred window number and the transferred measurement program.
Page 139: Fbef - Evaluation Result Of A Square Window (Ok/Nok)
If 2 parameters, the online signal level is queried for the square window with the transferred window number and the transferred measurement program. Host sends: <Address>sr<STX> FOLV? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 140: Fnio - Number Of Noks For A Square Window
If 2 parameters, the evaluation result is queried for the square window with the transferred window number and the transferred measurement program. Host sends: <Address>sr<STX> FBEF? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 141: Fmaa - Query The Absolute Maximum Within A Square Window
If 2 parameters, the number of NOKs is queried for the square window with the transferred window number and the transferred measurement program. Host sends: <Address>sr<STX> FNIO? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 142: Fmia - Query The Absolute Minimum Within A Square Window
If 2 parameters, the absolute maximum is queried within the square window with the transferred window number and the transferred measurement program. Host sends: <Address>sr<STX> FMAA? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 143: Fein - Query The Curve Entry Values Of A Square Window
Meaning of parameter Pn Parameter Meaning Value Window number 1 to 3 X coordinate of the absolute minimum Floating-point value The absolute minimum (of the Y Floating-point value value) If 2 parameters, the absolute minimum is queried within the square window with the transferred window number and the transferred measurement program.
Page 144 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2,P3,P4<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Window number 1 to 3 Index of the entry Integer value (unsigned 16 bit) X coordinate of the entry Floating-point value Y coordinate of the entry Floating-point value If 2 parameters, the entry values are queried for the square window with the transferred window...
Page 145: Faus - Query The Curve Exit Values Of A Square Window
4.24.12 FAUS - Query the curve exit values of a square window Execute FAUS! There is no ! form of this command Query FAUS? The FAUS? command queries the curve exit values of a square window. If 1 parameter, the exit values are queried for the square window with the transferred window number and the currently selected measurement program.
Page 146: Evaluating Thresholds
Index of the exit Integer value (unsigned 16 bit) X coordinate of the exit Floating-point value Y coordinate of the exit Floating-point value 4.25 Evaluating thresholds 4.25.1 SWST - Thresholds ON/OFF Execute SWST! The SWST! command enables or disables a threshold. If 2 parameters, the threshold for the transferred threshold number and the currently selected measurement program is enabled or disabled.
Page 147: Styp - Set Threshold Type (X/Y Threshold)
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Threshold number 1 to 2 Threshold ON/OFF 0 -> OFF 1 -> ON If 2 parameters, the threshold for the transferred threshold number and the transferred measurement program is queried for its enabled/disabled status.
Page 148 Meaning of parameter Pn Parameter Meaning Value Threshold number 1 to 2 Threshold type 0 -> X threshold 1 -> Y threshold If 3 parameters, the threshold type corresponding to the transferred threshold number and the transferred measurement program is set. Host sends: <Address>sr<STX>...
Page 149: Sgrz - Set Or Query Threshold Limits
If 2 parameters, the threshold type corresponding to the transferred threshold number and the transferred measurement program is queried. Host sends: <Address>sr<STX> STYP? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning...
Page 150 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Threshold number 1 to 2 For X threshold: X value of threshold, Floating-point value between -999999 for Y threshold: Y value of threshold and 999999 For X threshold: Ymin;...
Page 151: Sdur - Set Or Query Threshold Crossover
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4,P5<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Threshold number 1 to 2 For X threshold: X value of threshold, Floating-point value between -999999 for Y threshold: Y VALUE of threshold and 999999...
Page 152 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Threshold number 1 to 2 Left–right crossover for X threshold 0 -> No Bottom–top crossover for Y threshold 1 -> Yes Left–right crossover for X threshold 0 ->...
Page 153: Skab - Curve Section Over Which A Threshold Is Evaluated
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Threshold number 1 to 2 Left–right crossover for X threshold 0 -> No Bottom–top crossover for Y threshold 1 -> Yes Left–right crossover for X threshold 0 ->...
Page 154 Query SKAB? The SKAB? command queries the curve section over which a threshold is evaluated. If 1 parameter, the threshold’s curve section is queried with the transferred threshold number and the currently selected measurement program. Host sends: <Address>sr<STX> SKAB? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 155: Sbef - Evaluation Result Of A Threshold (Ok/Nok)
4.25.6 SBEF - Evaluation result of a threshold (OK/NOK) Execute SBEF! There is no ! form of this command Query SBEF? The SBEF? command queries the evaluation result of a threshold. If 1 parameter, the threshold’s evaluation result is queried with the transferred threshold number and the currently selected measurement program.
Page 156: Snio - Nok Counter For A Threshold
4.25.7 SNIO - NOK counter for a threshold Execute SNIO! There is no ! form of this command Query SNIO? The SNIO? command queries the NOK counter for a threshold. If 1 parameter, the NOK counter is queried for the threshold with the transferred threshold number and the currently selected measurement program.
Page 157: Sdko - The Curve's Crossover Points Through A Threshold
4.25.8 SDKO - The curve’s crossover points through a threshold Execute SDKO! There is no ! form of this command Query SDKO? The SDKO? command queries the curve’s crossover points through a threshold. If 1 parameter, the crossover points are queried through the threshold with the transferred threshold number and the currently selected measurement program.
Page 158: Evaluating The Trapezoid Window
Index of curve crossover Integer value >= 0 Crossover X coordinate Floating-point value Crossover Y coordinate Floating-point value 4.26 Evaluating the trapezoid window 4.26.1 TRST - Trapezoid window ON/OFF Execute TRST! The TRST! command enables or disables a trapezoid window. If 2 parameters, the trapezoid window for the transferred trapezoid window number and the currently selected measurement program is enabled or disabled.
Page 159: Ttyp - Set Trapezoid Type (X/Y Trapezoid Window)
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Trapezoid window number 1 to 2 Trapezoid window ON/OFF 0 -> OFF 1 -> ON If 2 parameters, the trapezoid window for the transferred trapezoid window number and the transferred measurement program is queried for its enabled/disabled status.
Page 160 Meaning of parameter Pn Parameter Meaning Value Trapezoid number 1 to 2 Trapezoid type 0 -> X trapezoid window 1 -> Y trapezoid window If 3 parameters, the trapezoid window type corresponding to the transferred trapezoid number and the transferred measurement program is set. Host sends: <Address>sr<STX>...
Page 161: Trgr - Enter Or Query Trapezoid Window Limits
If 2 parameters, the trapezoid window type corresponding to the transferred trapezoid number and the transferred measurement program is queried. Host sends: <Address>sr<STX> TTYP? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT>...
Page 162 Meaning of the Pn parameters if trapezoid window Y Parameter Meaning Value Trapezoid window number 1 to 2 Ymin Floating-point value Ymax Floating-point value X value bottom left Floating-point value X value bottom right Floating-point value X value top left Floating-point value X value top right Floating-point value...
Page 163 X value top left Floating-point value X value top right Floating-point value Query TRGR? The TRGR? command queries the trapezoid window limits. If 1 parameter, the trapezoid window limits are queried with the transferred trapezoid window number and the currently selected measurement program. Host sends: <Address>sr<STX>...
Page 164 If 2 parameters, the trapezoid window limits are queried with the transferred trapezoid window number and the transferred measurement program. Host sends: <Address>sr<STX> TRGR? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4,P5,>P6,P7,P8<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT>...
Page 165: Trea - Enter Or Query Trapezoid Window Entries/Exits
4.26.4 TREA - Enter or query trapezoid window entries/exits Execute TREA! The TREA! command sets the trapezoid window entries/exits. If 5 parameters, the trapezoid window entries/exits are set with the transferred trapezoid window number and the currently selected measurement program. Host sends: <Address>sr<STX>...
Page 166 Meaning of the Pn parameters if trapezoid window X Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 Entry left 0 -> No 1 -> Yes Entry right 0 -> No 1 ->...
Page 167 Meaning of the Pn parameters if trapezoid window X Parameter Meaning Value Trapezoid window number 1 to 2 Entry left 0 -> No 1 -> Yes Entry right 0 -> No 1 -> Yes Exit left 0 -> No 1 -> Yes Exit right 0 ->...
Page 168: Trka - Set Or Query Curve Section Used To Evaluate A Trapezoid Window
Exit left 0 -> No 1 -> Yes Exit right 0 -> No 1 -> Yes Meaning of the Pn parameters if trapezoid window Y Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 Entry bottom 0 ->...
Page 169 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 Curve segment 0 -> Forward 1 -> Return 2 -> Total Query TRKA? The TRKA? command queries the curve section used to evaluate a trapezoid window. If 1 parameter, the curve section is queried for that trapezoid window with the transferred trapezoid window number and the currently selected measurement program.
Page 170: Trbf - Evaluation Result Of A Trapezoid Window (Ok/Nok)
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 Curve segment 0 -> Forward 1 -> Return 2 -> Total 4.26.6 TRBF - Evaluation result of a trapezoid window (OK/NOK) Execute TRBF! There is no ! form of this command Query TRBF?
Page 171: Trni - Query Nok Counter For A Trapezoid Window
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 Evaluation result 0 -> NOK 1 -> OK 4.26.7 TRNI - Query NOK counter for a trapezoid window Execute TRNI! There is no ! form of this command Query TRNI?
Page 172: Trei - Query The Curve Entry Values Of A Trapezoid Window
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 NOK counter Integer value > 0 4.26.8 TREI - Query the curve entry values of a trapezoid window Execute TREI! There is no ! form of this command Query TREI?
Page 173: Trau - Query The Curve Exit Values Of A Trapezoid Window
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4,P5<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Trapezoid window number 1 to 2 Index of the entry Integer value (unsigned 16 bit) X coordinate of the entry Floating-point value Y coordinate of the entry...
Page 174: Evaluating Envelopes
If 2 parameters, the exit values are queried for the trapezoid window with the transferred trapezoid window number and the transferred measurement program. Host sends: <Address>sr<STX> TRAU? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4,P5<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 175 Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Envelope ON/OFF 0 -> OFF 1 -> ON Query HKST? The HKST? command queries whether the envelope is enabled or disabled. If no parameters, the envelope for the currently selected measurement program is queried for its enabled/disabled status.
Page 176: Hkgr - Set Or Query Start And End Values For Envelopes
4.27.2 HKGR - Set or query start and end values for envelopes Execute HKGR! The HKGR! command sets the start and end value of an envelope If 2 parameters, the start and end value of that envelope with the currently selected measurement program are set.
Page 177: Hkde - Set Or Query Delta Min And Max Values Of Envelopes
Meaning of parameter Pn Parameter Meaning Value Start value of envelope Floating-point value End value of envelope Floating-point value If 1 parameter, the start and end value of that envelope with the transferred measurement program are queried. Host sends: <Address>sr<STX> HKGR? P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 178 If 3 parameters, the Delta min and max values of that envelope with the transferred measurement program are set. Host sends: <Address>sr<STX> HKDE! P1,P2,P3 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Delta min value of the envelope Floating-point value...
Page 179: Hkes - Set Or Query The Entry Side Of Envelopes
Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Delta min value of the envelope Floating-point value Delta max value of the Floating-point value envelope 4.27.4 HKES - Set or query the entry side of envelopes Execute HKES! The HKES! command sets the entry side of an envelope.
Page 180 Query HKES? The HKES? command queries the entry side of an envelope. If no parameters, the entry side of that envelope with the currently selected measurement program is queried. Host sends: <Address>sr<STX> HKES? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ>...
Page 181: Hkka - Set Or Query The Curve Section For Envelopes
4.27.5 HKKA - Set or query the curve section for envelopes Execute HKKA! The HKKA! command sets the curve section for an envelope (forward or return) Note: If an envelope already exists, this is deleted when the curve section is changed. If 1 parameter, the curve section of that envelope with the currently selected measurement program is set.
Page 182: Hkbf - Evaluation Result Of An Envelope (Ok/Nok)
Meaning of parameter Pn Parameter Meaning Value Curve section for envelopes 0 -> Forward 1 -> Return If 1 parameter, the curve section of that envelope with the transferred measurement program is queried. Host sends: <Address>sr<STX> HKKA? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 183: Hkni - Query Nok For An Envelope
Meaning of parameter Pn Parameter Meaning Value Evaluation result 0 -> NOK 1 -> OK If 1 parameter, the evaluation result of that envelope with the transferred measurement program is queried. Host sends: <Address>sr<STX> HKBF? P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 184: Hkei - Query The Curve Entry Values Of An Envelope
Meaning of parameter Pn Parameter Meaning Value NOK counter Integer value > 0 If 1 parameter, the NOK counter of the envelope with the transferred measurement program is queried. Host sends: <Address>sr<STX> HKNI? P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 185: Hkau - Query The Curve Exit Values Of An Envelope
Meaning of parameter Pn Parameter Meaning Value Index of the entry Integer value (unsigned 16 bit) X coordinate of the entry Floating-point value Y coordinate of the entry Floating-point value If 1 parameter, the entry values of the envelope with the transferred measurement program are queried.
Page 186: Hraw - Index Of The Last Point On The Envelope Reference Curve
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2,P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Index of the entry Integer value (unsigned 16 bit) X coordinate of the exit Floating-point value Y coordinate of the exit Floating-point value If 1 parameter, the exit values of the envelope with the transferred measurement program are queried.
Page 187 Meaning of parameter Pn Parameter Meaning Value Index of the last point on the reference Integer value <= 499 (unsigned 16 bit) curve If 2 parameters, the index corresponding to the transferred measurement program is set. Host sends: <Address>sr<STX> HRAW! P1,P2,P3 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 188: Hkge - Generate Envelope
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Index of the last point on the reference Integer value <= 499 (unsigned 16 bit) curve 4.27.11 HKGE - Generate envelope Execute HKGE!
Page 189: Hkrx - The Reference Curve X Coordinates For Generating The Envelope
4.27.12 HKRX - The reference curve X coordinates for generating the envelope Execute HKRX! The HKRX! command transfers the reference curve X coordinates for generating the envelope. If 3 parameters: Transferred are the reference curve X coordinates for generating the envelope corresponding to the transferred measurement program number.
Page 190 The 32 bit floating point for each coordinate is transferred byte by byte (4 bytes). To prevent these 4 bytes from being interpreted as control codes, the highest significant bit is set (if not already set). The status byte indicates whether the highest significant bit has been set in one of these 4 bytes. The status byte is additionally transmitted as the 5th byte together with the 4 bytes of the associated coordinate.
Page 191 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value K1...K50 Reference curve X See description below coordinates for generating the envelope The coordinates are transferred as binary code followed by a status byte.
Page 192: Hrym - The Y Coordinates Of The Reference Curve Mean Values For Generating The Envelope
4.27.13 HRYM - The Y coordinates of the reference curve mean values for generating the envelope Execute HRYM! The HRYM? command transfers the Y coordinates of the reference curve mean values for generating the envelope. If 3 parameters: Transferred are the Y coordinates of the reference curve mean values for generating the envelope corresponding to the transferred measurement program number.
Page 193 The 32 bit floating point for each coordinate is transferred byte by byte (4 bytes). To prevent these 4 bytes from being interpreted as control codes, the highest significant bit is set (if not already set). The status byte indicates whether the highest significant bit has been set in one of these 4 bytes. The status byte is additionally transmitted as the 5th byte together with the 4 bytes of the associated coordinate.
Page 194 If no parameter: Queried are the Y coordinates of the reference curve mean values for generating the envelope corresponding to the selected measurement program. Host sends: <Address>sr<STX> HRYM?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 195: Hdmi - The Y Coordinates Of The Reference Curve Delta Min Values For Generating The Envelope
4.27.14 HDMI - The Y coordinates of the reference curve Delta min values for generating the envelope Execute HDMI! The HDMI? command transfers the Y coordinates of the reference curve Delta min values for generating the envelope. If 3 parameters: Transferred are the Y coordinates of the reference curve Delta min values for generating the envelope corresponding to the transferred measurement program number.
Page 196 The max 40 coordinates (or max 280 for Ethernet) are transferred as binary code. Each coordinate is transferred as 5 bytes (4 bytes for a 32 bit floating point followed by a status byte). There are no separators inside or between the coordinates. <K1Byte1><K1Byte2><K1Byte3><K1Byte4><K1StatusByte><K2Byte1><K2Byte2><K2Byte3><K2Byt e4><K2StatusByte>...
Page 197 If no parameter: Queried are the Y coordinates of the reference curve Delta min values for generating the envelope corresponding to the selected measurement program. Host sends: <Address>sr<STX> HDMI?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 198: Hdma - The Y Coordinates Of The Reference Curve Delta Max Values For Generating The Envelope
4.27.15 HDMA - The Y coordinates of the reference curve Delta max values for generating the envelope Execute HDMA! The HDMA? command transfers the Y coordinates of the reference curve Delta max values for generating the envelope. If 3 parameters: Transferred are the Y coordinates of the reference curve Delta max values for generating the envelope corresponding to the transferred measurement program number.
Page 199 The 32 bit floating point for each coordinate is transferred byte by byte (4 bytes). To prevent these 4 bytes from being interpreted as control codes, the highest significant bit is set (if not already set). The status byte indicates whether the highest significant bit has been set in one of these 4 bytes. The status byte is additionally transmitted as the 5th byte together with the 4 bytes of the associated coordinate.
Page 200 Host sends: <Address>sr<STX> HDMA?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value K1...K50 Y coordinates of the reference See description below curve Delta max values for generating the envelope...
Page 201: Hkda Query: Are There Envelopes At All
4.27.16 HKDA query: Are there envelopes at all Execute HKDA! There is no ! form of this command Query HKDA? The HKDA? command queries whether there is an envelope. If no parameters, this queries whether there is an envelope in the currently selected measurement program Host sends: <Address>sr<STX>...
Page 202: Evaluation In General
4.28 Evaluation in general 4.28.1 TOBA - Enter or query tolerance bands Execute TOBA! The TOBA! command sets the tolerance bands for the evaluation elements. If 2 parameters, the tolerance bands are set for the evaluation elements corresponding to the currently selected measurement program.
Page 203: Switching Points
Meaning of parameter Pn Parameter Meaning Value Tolerance band X Floating-point value Tolerance band Y Floating-point value If 1 parameter, the tolerance bands are queried for the evaluation elements corresponding to the transferred measurement program number Host sends: <Address>sr<STX> TOBA? P1 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 204 Meaning of parameter Pn Parameter Meaning Value Switching point number 1 to 6 Switching value Floating-point value Channel 0 -> Channel X 1 -> Channel Y Switching signal level 1 -> High active 0 -> Low active Switching point reference 0 ->...
Page 205 Meaning of parameter Pn Parameter Meaning Value Switching point number 1 to 6 Switching value Floating-point value Channel 0 -> Channel X 1 -> Channel Y Switching signal level 0 -> High active 1 -> Low active Switching point reference 0 ->...
Page 206: Sensor Test
4.30 Sensor test 4.30.1 STST - Sensor test ON/OFF Execute STST! The STST! command enables or disables the sensor test for a particular channel (X, Y). If 2 parameters, the sensor test for the transferred channel number and the currently selected measurement program is enabled or disabled.
Page 207: Strw - Set Or Query Sensor Test Reference Value
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Sensor test ON/OFF 0 -> OFF 1 -> ON If 2 parameters, the sensor test corresponding to the transferred channel number and the transferred measurement program is queried for its enabled/disabled state.
Page 208 Meaning of parameter Pn Parameter Meaning Value Channel number 0 -> Channel X 1 -> Channel Y Reference value Floating-point value If 3 parameters, the reference value for the sensor test corresponding to the transferred channel number and the transferred measurement program is set. Host sends: <Address>sr<STX>...
Page 209: Stab - Set Or Query Permitted Sensor Test Tolerance
Host sends: <Address>sr<STX> STRW? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Channel number 0 ->...
Page 210 Query STAB? The STAB? command queries the permitted sensor test tolerance for a particular channel (X, Y). If 1 parameter, the permitted tolerance for the sensor test corresponding to the transferred channel number and the currently selected measurement program is queried. Host sends: <Address>sr<STX>...
Page 211: Stme - Teach In Sensor Test Reference Value
4.30.4 STME - Teach in sensor test reference value Execute STME! The STME! command teaches in the sensor test reference value for a particular channel (X, Y). Host sends: <Address>sr<STX> STME! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 212: User-Defined Values
4.31 User-defined values 4.31.1 FRDW - Enter or query user definable values Execute FRDW! The FRDW! command sets the user definable values. If 2 parameters, the user definable value corresponding to the transferred value number and the currently selected measurement program is set. Host sends: <Address>sr<STX>...
Page 213: Operand Table
Meaning of parameter Pn Parameter Meaning Value Value number 1 to 20 User-defined value See operands table Name of the user definable value String If 2 parameters, the user definable value corresponding to the transferred value number and the transferred measurement program number is queried.
Page 214 Absolute maximum of measurement curve for Y-channel – Y-coordinate Absolute minimum of measurement curve for Y-channel – X-coordinate Absolute minimum of measurement curve for Y-channel – Y-coordinate Return point of measurement curve – X-coordinate Return point of measurement curve – Y-coordinate Window 1 entry value –...
Page 215 Window 3 exit value – X-coordinate Window 3 exit value – Y-coordinate Absolute minimum for Y-channel inside window 3 – X-coordinate Absolute minimum for Y-channel inside window 3 – Y-coordinate Absolute maximum for Y-channel inside window 3 – X-coordinate Absolute maximum for Y-channel inside window 3 – Y-coordinate Window 3 boundary, Xmin Window 3 boundary, Xmax Window 3 boundary, Ymin...
Page 216: Live - Set The Live Values
Threshold 1 crossing point (intersection) – Y-coordinate Threshold 1 Position X (X-Threshold), Position Y (Y-threshold) Threshold 1 Limit Ymin (X-Threshold), Limit Xmin (Y-Threshold) Threshold 1 Limit Ymax (X-Threshold), Limit Xmax (Y-Threshold) Threshold 2 crossing point (intersection) – X-coordinate Threshold 2 crossing point (intersection) – Y-coordinate Threshold 2 Position X (X-Threshold), Position Y (Y-threshold) Threshold 2 Limit Ymin (X-Threshold), Limit Xmin (Y-Threshold) Threshold 2 Limit Ymax (X-Threshold), Limit Xmax (Y-Threshold)
Page 217: Initializing And Copying Measurement Programs
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Live values ON/OFF 0 -> Live values OFF 1 -> Live values ON 4.32 Initializing and copying measurement programs 4.32.1 PRKO - Copy all data between measurement programs Execute PRKO! The PRKO! command copies all of the configuration data from a measurement program to others.
Page 218: Init - Default Initialization Of Measurement Programs
Meaning of parameter Pn Parameter Meaning Value Number of source measurement A value between 0 and 15 program Number of start target measurement A value between 0 and 15 program Number of end target measurement A value between 0 and 15 program Caution: The number of the start target measurement program may not be greater than the number of the end target measurement program.
Page 219: Test - Switch On Test Mode For Numerical Configuration
4.33.1 TEST - Switch ON test mode for numerical configuration Note: Command not allowed when measurement running. Execute TEST! The TEST! command enables or disables the test mode. With test mode ON, no measurements can be started. Although the device continues to read in the PLC inputs, it does not respond to them. Host sends: <Address>sr<STX>TEST? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 220: Mess - Fetch Current Readings
Query TESA? The TESA? command queries the setting for switching signal reaction in test mode. Host sends: <Address>sr<STX>TESA! <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1 <LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 221: Spsi - Fetch Plc Inputs
4.33.4 SPSI - Fetch PLC inputs Execute SPSI! This command does not have a ! form. Query SPSI? The SPSI? command reads the PLC inputs. Host sends: <Address>sr<STX>SPSI? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 222 Meaning of parameter Pn Parameter Meaning Value PLC output byte 1 In hex format; see table PLC output byte 2 In hex format; see table Query SPSO? The SPSO? command queries the current status of the PLC outputs. Host sends: <Address>sr<STX>SPSO? <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 223: Record Errors/Events In The Logfile
4.34 Record errors/events in the logfile 4.34.1 LOGS - Port operation logging ON/OFF Execute LOGS! The command LOGS! enables or disables error/event logging during port operations. Host sends: <Address>sr<STX>LOGS! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 224: Logd - Query Logfile Entries
Meaning of parameter Pn Parameter Meaning Value Index of last entry 0 to 255 4.34.3 LOGD - Query logfile entries Execute LOGD! This command does not have a ! form. Query LOGD? The command LOGD? queries a logfile entry Host sends: <Address>sr<STX>LOGD? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 225 137 -> Menu: Assignment PLC-Inputs 139 -> Menu: Interface USB 140 -> Menu: Interface Ethernet 141 -> Copy sensor setup 142 -> Initialize target program(s) 143 -> Copy whole setup 144 -> Setup real-time switch points Measurement program 0 to 31, or 0 to 127 number Access 0 ->...
Page 226: Voltage Monitor
4.35 Voltage monitor 4.35.1 UKNO - Measure and test node voltage Note: Command not allowed when measurement running. Execute UKNO! This command does not have a ! form. Query UKNO? The command UKNO? measures and tests the node voltage and returns the results Host sends: <Address>sr<STX>UKNO?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 227: Uspa - Measure And Test Channel A Excitation
Meaning of parameter Pn Parameter Meaning Value 0  GND potential OK GND potential status 1  GND potential outside tolerance Value of measured GND potential Floating-point value with units 4.35.3 USPA - Measure and test channel A excitation Note: Command not allowed when measurement running.
Page 228: Amplifier Test
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value 0  Excitation voltage OK Channel B excitation voltage status 1  Excitation voltage outside tolerance Value of measured excitation voltage Floating-point value with units 4.36 Amplifier test...
Page 229: Vtkb - Channel B Amplifier Test
Meaning of parameter Pn Parameter Meaning Value A/D converter value (LSBs) Floating-point value Measured voltage test Floating-point value with units 4.36.2 VTKB - Channel B amplifier test Note: Command not allowed when measurement running. Execute VTKB! The VTKB! command configures the hardware for the channel B amplifier test. Host sends: <Address>sr<STX>...
Page 230 Meaning of parameter Pn Parameter Meaning Value A/D converter value (LSBs) Floating-point value Measured voltage test Floating-point value with units of 274...
Page 231: Measurement Results
4.37 Measurement results 4.37.1 MSTA - Measurement status; is there a new measurement curve? Execute MSTA! This command does not have a ! form. Query MSTA? The command MSTA? queries whether there is a new measurement curve If 1 parameter: Queried is the measurement status corresponding to the transferred measurement program number.
Page 232: Krva - Supplementary Data For Current Measurement Curve
4.37.2 KRVA - Supplementary data for current measurement curve Execute KRVA! This command does not have a ! form. Query KRVA? The command KRVA? queries supplementary data for the current measurement curve. If 1 parameter: Queried are the data corresponding to the transferred measurement program number. Host sends: <Address>sr<STX>KRVA? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 233 If no parameters: Queried are the data of the currently selected measurement program. Host sends: <Address>sr<STX>KRVA?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2,P3,..,P16<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Part counter 32 bit integer value (unsigned long)
Page 234: Meve - Measurement Curves
Square window 2 Square window 3 Threshold 1 Threshold 2 Trapezoid window 1 Trapezoid window 2 Envelope 4.37.3 MEVE - Measurement curves For the last 10 recorded measurement curves, the measurement program and the measurement curve counter are stored in an array. This command can query the array and reset an entry.
Page 235 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P3,P2,P3, … P21<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the measurement 0 to 15 (255 if still no measurement curve) program entry 1 Measurement curve counter 1 to 255 (0 if still no measurement curve) entry 1 Number of the measurement...
Page 236: Alku - General Curve Data
4.37.4 ALKU - General curve data Execute ALKU! This command does not have a ! form. Query ALKU? The command ALKU? queries the general curve data If 1 parameter: Queried are the general curve data corresponding to the transferred measurement program number.
Page 237: Frer - Query Measurement Results Of The User Definable Values
If no parameters: Queried are the general curve data of the currently selected measurement program. Host sends: <Address>sr<STX>ALKU?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2,...,P14<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value...
Page 238 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2,P3,P4 <LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Value number 1 to 20 Number of the user See operands table definable value Name of the user definable See operands table value Measurement value of the Floating-point value...
Page 239: Fral - Query Measurement Results Of All User Definable Values
4.37.6 FRAL - Query measurement results of all user definable values Execute FRAL! This command does not have a ! form. Query FRAL? The FRAL? command queries all of the measurement results of the user definable values as purely numerical values. If 1 parameter, the measurement results are queried for the user definable values in the current program Host sends: <Address>sr<STX>FRAL?<LF><ETX>[<BCC>]...
Page 240: Rdym - Pc Ready Mode On/Off
Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number P2…P20 Measurement values each Block 1 and 2 return 12 floating point values. user definable values Block 3 returns 6 floating point values. 4.37.7 RDYM - PC Ready Mode ON/OFF Execute RDYM! The command RDYM! enables or disables the PC Read Mode.
Page 241: Redy - Ready Signal Enable If Ready Mode On
4.37.8 REDY - Ready signal enable if Ready Mode ON Execute REDY! The PC uses the command REDY! to enable the ready signal. With ready mode ON, this command must enable the ready signal in order to set this after every measurement. Host sends: <Address>sr<STX>...
Page 242: Kusa - Query Return Point And Last Value Of The Curves In The Curve Array
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1,P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of curves in the Integer between 0 and 10 curve array Index of the newest curve in Integer between 0 and 9 the curve array 4.37.10 KUSA - Query return point and last value of the curves in the curve array Execute KUSA!
Page 243: Kurx - Read Out The X Coordinates Of The Current Measurement Curve
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Curve number 1 to 10 Index of curve return point 16 bit integer value (unsigned short) Index of the last point on the curve 16 bit integer value (unsigned short) 4.37.11 KURX - Read out the X coordinates of the current measurement curve...
Page 244 If no parameters: Queried are the X coordinates of the measurement curve corresponding to the selected measurement program. Host sends: <Address>sr<STX> KURX?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] etc.
Page 245: Kury - Read Out The Y Coordinates Of The Current Measurement Curve
4.37.12 KURY - Read out the Y coordinates of the current measurement curve Execute KURY! This command does not have a ! form. Query KURY? The command KURY? reads out the Y coordinates of the current measurement curve. If 1 parameter: Read out are the Y coordinates of the measurement curve corresponding to the transferred measurement program number.
Page 246 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value K1...K50 Y coordinates of the See description below measurement curve The coordinates are transferred as binary code followed by a status byte. In other words, each coordinate consists of 5 bytes.
Page 247: Kusx - Read Out The X Coordinates Of A Measurement Curve From The Curve Array
4.37.13 KUSX - Read out the X coordinates of a measurement curve from the curve array Execute KUSX! This command does not have a ! form. Query KUSX? The KUSX? command reads out the X coordinates of a measurement curve from the curve array. If 2 parameters: Read out are the X coordinates of the measurement curve corresponding to the transferred curve number and measurement program number.
Page 248: Kusy - Read Out The Y Coordinates Of A Measurement Curve From The Curve Array
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Curve number 1 to 10 K1...K50 X coordinates of the measurement See description below curve The coordinates are transferred as binary code followed by a status byte.
Page 249 Host sends: <Address>sr<STX> KUSY? P1,P2<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1,K2,K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1,K2,K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1,...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the measurement A value between 0 and 15 program Curve number...
Page 250: Menu - Enter Or Query Current Measurement Menu
Meaning of parameter Pn Parameter Meaning Value Curve number 1 to 10 K1...K50 Y coordinates of the measurement See description below curve The coordinates are transferred as binary code followed by a status byte. In other words, each coordinate consists of 5 bytes. There are no separators inside or between the coordinates.
Page 251 If 2 parameters, the measurement menu display is set according to the transferred measurement program number. Host sends: <Address>sr<STX>MENU! P1,P2 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Measurement menu display 101 ->...
Page 252: Measurement Data Logger
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program A value between 0 and 15 number Measurement menu display 101 -> Measurement curve display 102 -> General curve data 103 ->...
Page 253: Dada - Query General Data For A Measurement Data Logger Record
4.38.2 DADA - Query general data for a measurement data logger record Execute DADA! This command does not have a ! form. Query DADA? The command DADA? queries diverse information for a data record stored by the measurement data logger. Host sends: <Address>sr<STX>DADA? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK>...
Page 254: Drfe - Query Square Window Data For A Measurement Data Logger Record
4.38.3 DRFE - Query square window data for a measurement data logger record Execute DRFE! This command does not have a ! form. Query DRFE? The command DRFE? queries the square window information for a data record stored by the measurement data logger.
Page 255: Dtrf - Query Envelope Data For A Measurement Data Logger Record
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P3,P4,P5,P6,P7<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Number of the data record Integer 0 to 49 Window number Integer 1 to 2 0  NOK Window evaluation 1  OK Window entry X coordinate Floating-point value Window entry Y coordinate...
Page 256: Dsch - Query Threshold Data For A Measurement Data Logger Record
4.38.6 DSCH - Query threshold data for a measurement data logger record Execute DSCH! This command does not have a ! form. Query DSCH? The command DSCH? queries the threshold information for a data record stored by the measurement data logger.
Page 257 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1,K2,K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1,K2,K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1,...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Curve number 1 to 50 K1...K50 X coordinates of the See description below measurement curve The coordinates are transferred as binary code followed by a status byte.
Page 258: Dyko - Read The Y Coordinates Of A Measurement Curve From The Data Logger
4.38.8 DYKO - Read the Y coordinates of a measurement curve from the data logger Execute DYKO! This command does not have a ! form. Query DYKO? The DYKO? command reads the Y coordinates of a measurement curve from the data logger. Host sends: <Address>sr<STX>...
Page 259: Graphical Scaling
After <ACK>, the next set of coordinates (max 50/290) are transferred. This continues until all coordinates have been transferred. In this case, the device responds after <ACK> with <EOT>, signifying the end of coordinate transfer. 4.39 Graphical scaling 4.39.1 ASKA - Enter or query autoscaling Execute ASKA! The ASKA! command sets the graphical autoscaling.
Page 260: Mska - Enter Or Query Manual Scaling
Meaning of parameter Pn Parameter Meaning Value Autoscaling 0 -> Autoscaling OFF 1 -> Autoscaling ON If 1 parameter, the autoscaling corresponding to the transferred measurement program number is queried. Host sends: <Address>sr<STX>ASKA? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ>...
Page 261 If 5 parameters, the scaling limits corresponding to the transferred measurement program number and the transferred channel number are set. Host sends: <Address>sr<STX>MSKA! P1,P2,P3,P4,P5 <LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Xmin scaling limit Floating-point value...
Page 262: Reference Curve
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2,P3,P4,P5<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Xmin scaling limit Floating-point value Xmax scaling limit Floating-point value Ymin scaling limit Floating-point value Ymax scaling limit Floating-point value...
Page 263: Ranz - Number Of Value Pairs For Reference Curve
Query RFAN? The RFAN! command queries whether the reference curve is shown or not. If no parameters, the value corresponding to the currently selected measurement program is queried. Host sends: <Address>sr<STX>RFAN?<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P1<LF><ETX>[<BCC>] Host sends: <ACK>...
Page 264 Meaning of parameter Pn Parameter Meaning Value Number of value pairs for reference curve 16 bit integer value (unsigned short) <= 160 If 2 parameters, this is the number of value pairs for the reference curve Y1 corresponding to the transferred measurement program number.
Page 265: Refx - The X Coordinates Of The Reference Curve From Channel X
Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2 <LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value Measurement program number A value between 0 and 15 Number of value pairs for reference curve 16 bit integer value (unsigned short) <= 160 4.40.3 REFX - The X coordinates of the reference curve from channel X Execute REFX!
Page 266 Meaning of parameter Pn Parameter Meaning Value Block number A value between 1 and 4; the max 160 coordinates are transferred in blocks of 40 values. Ethernet can transfer up to 280 values at any one time X coordinates of the reference See description below curve The max 40 coordinates (or max 280 for Ethernet) are transferred as binary code.
Page 267 Meaning of parameter Pn Parameter Meaning Value Number of the measurement program A value between 0 and 15 K1...K50 X coordinates of the reference curve See description below If no parameters: Queried are the X coordinates of the reference curve corresponding to the selected measurement program.
Page 268: Refy - The Y Coordinates Of The Reference Curve From Channel Y
After polling, no more than 50 coordinates (K1 to K50) are transferred. <STX>K1K2..K50<LF><ETX> Ethernet transfers 290 coordinates (K1 to K290) <STX>K1K2..K290<LF><ETX> After <ACK>, the next set of coordinates (max 50/290) are transferred. This continues until all coordinates have been transferred. In this case, the device responds after <ACK> with <EOT>, signifying the end of coordinate transfer.
Page 269 <K1Byte1><K1Byte2><K1Byte3><K1Byte4><K1StatusByte><K2Byte1><K2Byte2><K2Byte3><K2Byte4><K 2StatusByte>... etc. The 32 bit floating point for each coordinate is transferred byte by byte (4 bytes). To prevent these 4 bytes from being interpreted as control codes, the highest significant bit is set (if not already set). The status byte indicates whether the highest significant bit has been set in one of these 4 bytes.
Page 270 Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <STX>K1K2K3..K50<LF><ETX>[<BCC>] etc. etc. etc. DIGIFORCE responds: <STX>K1...Kn<LF><ETX>[<BCC>] DIGIFORCE responds: <EOT> Meaning of parameter Pn Parameter Meaning Value K1...K50 Y coordinates of the See description below reference curve The coordinates are transferred as binary code followed by a status byte. In other words, each coordinate consists of 5 bytes.
Page 271: Saving To Usb Stick
4.41 Saving to USB stick 4.41.1 USPR - USB stick logging ON/OFF Execute USPR! The USPR! command enables/disables logging on the USB stick If 1 parameter, logging is enabled in the currently selected measurement program Host sends: <Address>sr<STX>USPR! P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 272: Usbe - Derived File Names On Usb Stick
If 1 parameter, the logging enabled in the measurement program corresponding to the transferred number is queried. USPR Host sends: <Address>sr<STX> ? P1<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT> Host sends: <Address>po<ENQ> DIGIFORCE responds: <STX>P2<LF><ETX>[<BCC>] Host sends: <ACK> DIGIFORCE responds: <EOT>...
Page 273: Usfo - Format The Usb Stick Connected To The Device
0 -> Program names 1 -> Order sheet 4.41.3 USFO - Format the USB stick connected to the device Execute USFO! The USFO! command formats the USB stick connected to the DIGIFORCE 9311 Host sends: <Address>sr<STX>USFO!<LF><ETX>[<BCC>] DIGIFORCE responds: <ACK> Host sends: <EOT>...
Page 274: Urdy - Usb Ready Control On/Off
4.41.5 URDY - USB ready control ON/OFF Execute URDY! ! command defines whether the USB ready control is ON or OFF. URDY Host sends: <Address>sr<STX> ! P1<LF><ETX>[<BCC>] URDY DIGIFORCE responds: <ACK> Host sends: <EOT> Meaning of parameter Pn Parameter Meaning Value USB ready control 0 ->...

Burster Digiforce 9311 Operation Manual

1 For Your Safety

2 Introduction

3 General Communication Info

4 Commands

Quick Links

Related Manuals for Burster Digiforce 9311

Summary of Contents for Burster Digiforce 9311
