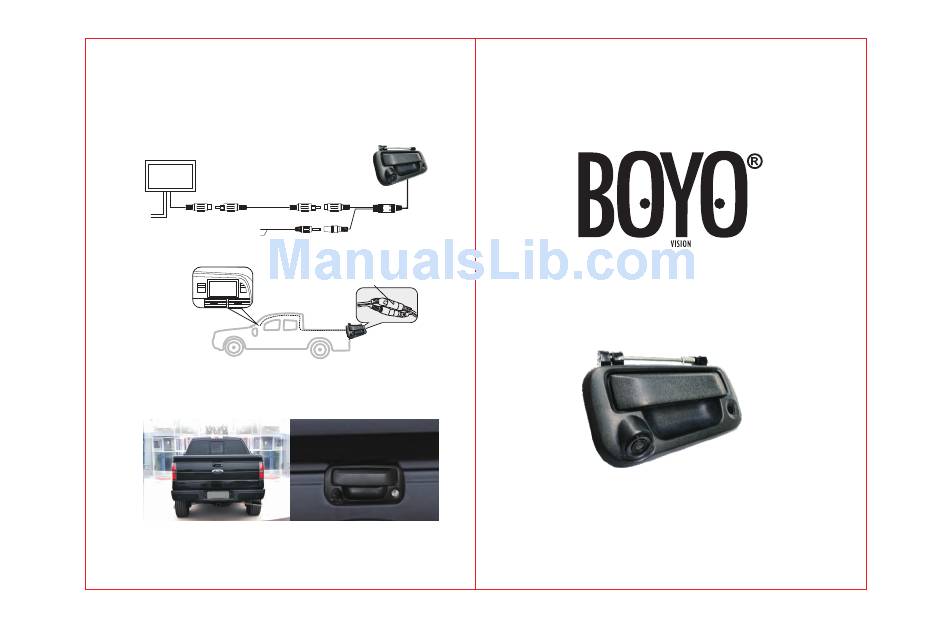

- Page 1 3.Installation The installation and position of the camera Monitor DC +12V RED (GND)Black Encase with insulating tape Signal Wire VTS14HD The effect of camera's installation...
- Page 2 1.Specification 2.Accessories Technical term Technical Parameters Image Sensor HD CCD Power Supply(DCV) ① DC 9V-16V Current Consumption 57 mA Power 0.7 W Effective pixels 768(H)X494(V)NTSC, 752(H)X582(V)PAL ② Electionic shutter 1/60 (NTSC)1/50(PAL)-100000s Minimum illumination 0.1 Lux S/N Ratio 48 dB Resolution(TV Lines) 600 TVL ③...
