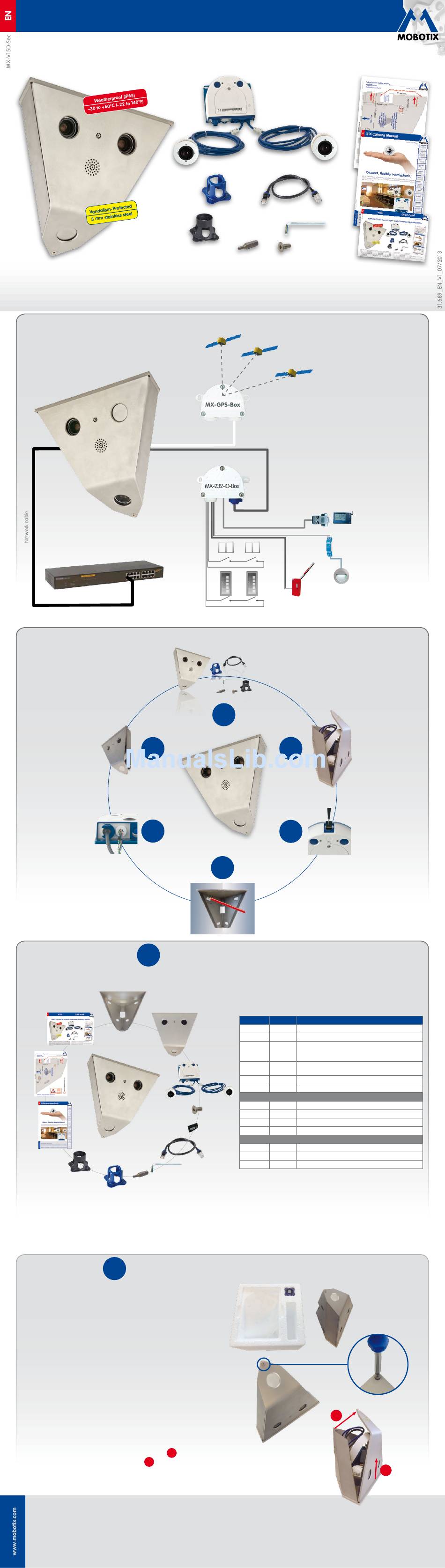

Mobotix V15D Quick Install

MOBOTIX IP Video Day and Night – Perfect Protection Against Vandalism
Vandalism-protected IP camera for corner mounting in 3 mm stainless steel
casing; front plate and top cover made from 5 mm stainless steel; automatic day/
night switch configurable; integrated microphone and speaker; all connections
of S15D camera module available. Can be ordered with any lens combination
(day/night) of the lenses L25, L38, L51, L76 and L160; one image sensor can be
ordered pointing downwards.
MOBOTIX V15D
MX-V15D-Sec
PoE switch
Install The Front Plate
Connect The Cables
D.3
D.2
D.1
M.4
M.3
1. Take the V15D out of the box
Pull the top of the packaging and the V15D out of the box and place the V15D
upside-down on a protected surface.
2. Remove security screw
Using the supplied screwdriver bit and a suitable bit holder (blue circle in figure),
remove the security screw.
3. Remove front plate
Pull the top end of the front plate upward and forward
front plate up and remove it from the casing
face-down on the protected surface.
HiRes Video Innovations – Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution
video systems cost-efficient.
MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
V15D
Connection of Peripheral Devices (Examples)
MxBus cable
MX USB cable

Installing the V15D (Overview)

6
5
1

Check the Delivered Parts

1.1
M.1
M.2
2

Unpack V15D and Remove the Front Plate

1
, then lift the entire
2
. Next, place the front plate
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Quick Install
• Network connection via Ethernet patch cable or installation cable
• Power supply via network cable and PoE switch
• Network connection via MOBOTIX Ethernet patch cable or installation cable
• MicroSD card with up to 64 GB, 4 GB installed
• MxBus connection for interface modules (e.g. MX-GPS-Box, MX-232-IO-Box)
• MiniUSB connection (e.g. MX-232-IO-Box)
Max. 10 m/55 yd
Max. 50 m/55 yd
Window sensors
Door sensors
Check the Delivered Parts
1
MOBOTIX V15D
MX-V15D-Sec
4
Install The Casing
Item Count
1.2
1.1 1
1.2 1
1.3 1
1.3
1.4 2
1.5 1
1.6 1
M.1 1
1.4
M.2 1
M.3 1
1.5
M.4 1
D.1 1
1.6
D.2 1
D.3 1
The HiRes Video Company
MX-GPS-Box
• Reliable GPS time base for MOBOTIX systems
• Includes external temperature and illumination
sensor
• Connection via MxBus two-wire cable
MX-232-IO-Box
• Connection of external sensors and switching of
external devices via MOBOTIX cameras
• Connection to camera via USB or MxBus
• RS232 interface when using USB cable for
camera connection
RS232 connection
(only when connecting to
camera via USB cable)
Weather
station
Relay
Lights
Gate
2
Unpack V15D and Remove
the Front Plate
3
Replace The Sd Card (Optional)
Part Name
Camera casing 3 mm stainless steel, top 5 mm stainless steel
Front plate 5 mm stainless steel (installed)
S15D (modified) with 2 sensor modules (any combination
(day/night) of the lenses L25, L38, L51, L76 and L160) installed
on front plate
Security screw stainless steel M5x12 (one installed, one
supplied additionally)
MicroSD card 4 GB (installed in S15D)
Ethernet patch cable, 50 cm/19.7 in with sealings (installed)
Mounting Supplies
Allen wrench 2 mm
Screwdriver bit for security screw M5x12
Multifunctional tool (lens, dome, filter insets)
Module key (for focusing the lenses)
Documentation
S15D Camera Manual
V15D Drilling Template
V15D Quick Install (this document)
