Mobotix D22 Quick Installation

D22
MOBOTIX MOBOTIX Quick Installation Quick Installation

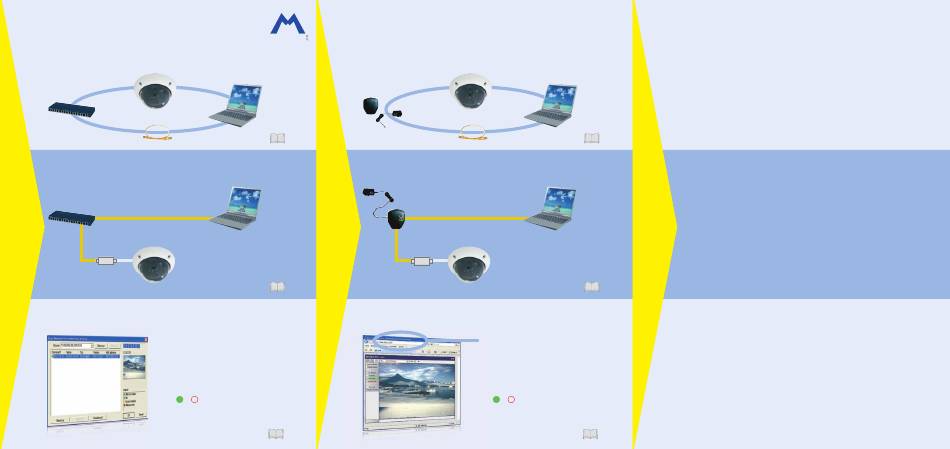

Prerequisites
(MOBOTIX Camera, Standard PC, PoE Switch, CAT 5 Cable)
Camera
1
PoE switch*
CAT 5 cable*
Connecting the Camera
(via PoE Switch)
CAT 5 cable*
2
PoE switch*
CAT 5 cable
*Not part of the standard delivery
The First Image in the Camera
(in MxControlCenter)
• Free-of-charge download from
www.mobotix.com
• Install application from MSI file
3
• MxControlCenter automatically
searches the cameras
Security-V Security-Vision-Systems ision-Systems
X
MOBOTIX
Prerequisites Without PoE Switch
MOBOTIX
Power Adapter
PC/laptop*
& power supply*
Manual Part 1
S. 73
Connecting the Camera
PC/laptop*
MX Power Adapter
& power supply*
Manual Part 1
S. 72
*Not part of the standard delivery
The First Image in the Camera
LED signal:
camera is ready!
Manual Part 1
S. 86
Camera
CAT 5 cable*
(Direct Connection via MX Power Adapter)
CAT 5 cable*
Cam
CAT 5 cable
(in a Browser on Windows/Mac/Linux)
• Enter your camera's IP address
in the browser address bar
• The IP address of your camera
is printed on a sticker on the
camera housing
LED signal:
camera is ready!
Prerequisites
(Troubleshooting)
• Computer & switch need to have 10/100 Mbps network interfaces
• Using a PoE switch is the simplest method for connecting the camera
PC/laptop*
• Use the MX Power Adapter if a PoE switch is not available
• Order MOBOTIX accessories from www.mobotix.com or
by phone (toll-free) 1-888-MOBOTIX
Manual Part 1
S. 72
Connecting the Camera
Using PoE switch:
• Does the PoE switch support the IEEE 802.3af PoE standard?
PC/laptop*
• Is the camera cable connected to a PoE port at the switch?
Using an MX Power Adapter (NPA):
• Is the computer in the same subnet as the camera?
• Is the Power Adapter connectd properly?
(power supply in the "Power" connector, computer in the "PC"
connector, camera in the "Camera" connector)
Manual Part 1
S. 72
The First Image in the Camera
In MxControlCenter (MxCC):
• Downloaded MxControlCenter successfully from www.mobotix.com?
• Installation completed successfully?
• Camera search in the subnet found the cameras?
• For more information, see p. 64 in the Camera Manual
and in the MxControlCenter User Manual
Display in a browser (Windows/Mac/Linux):
• IP address correctly entered in the browser address field?
Manual Part 1
• Firewall properly configured and camera port 80 reachable?
S. 80
(Troubleshooting)
(Troubleshooting)
