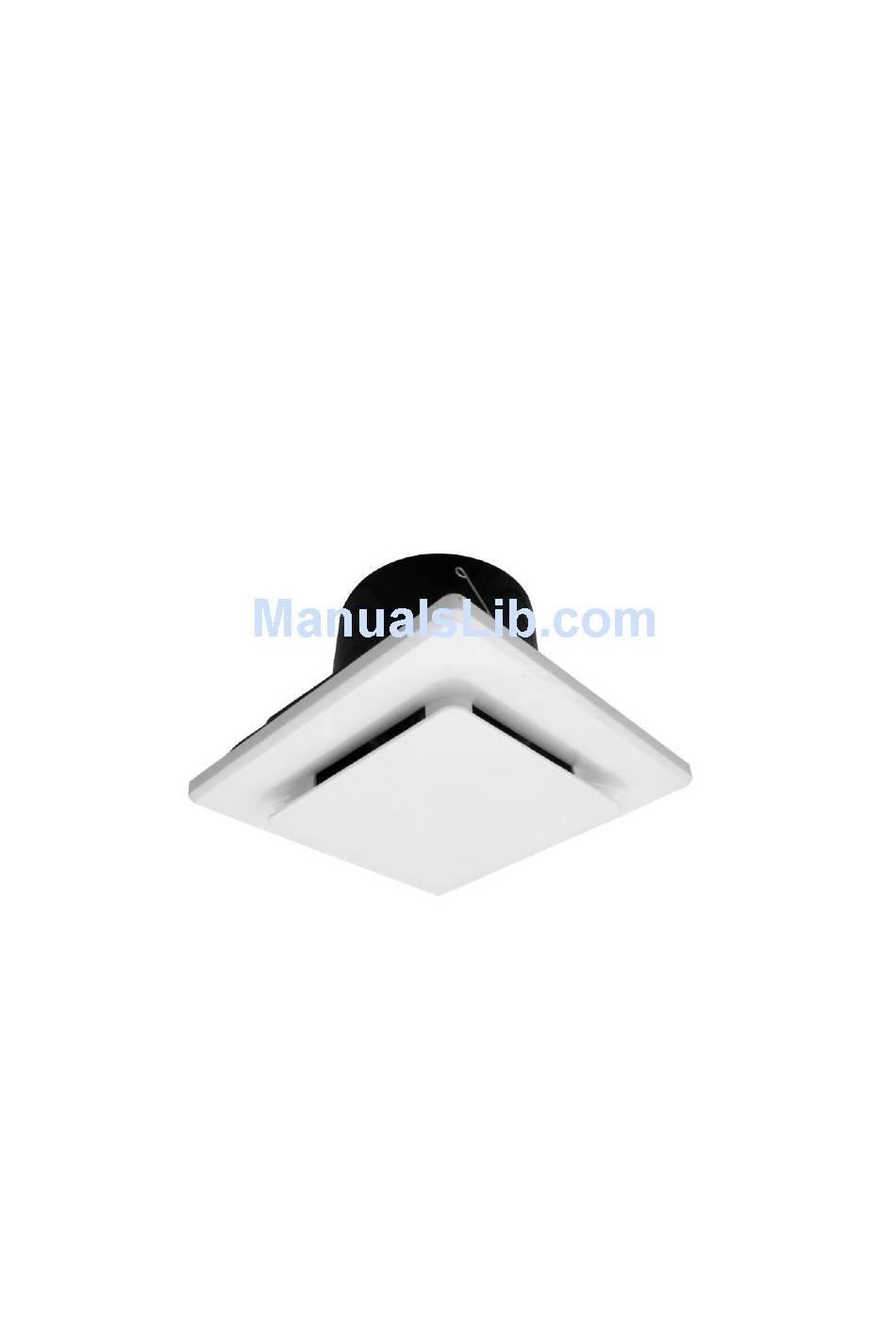

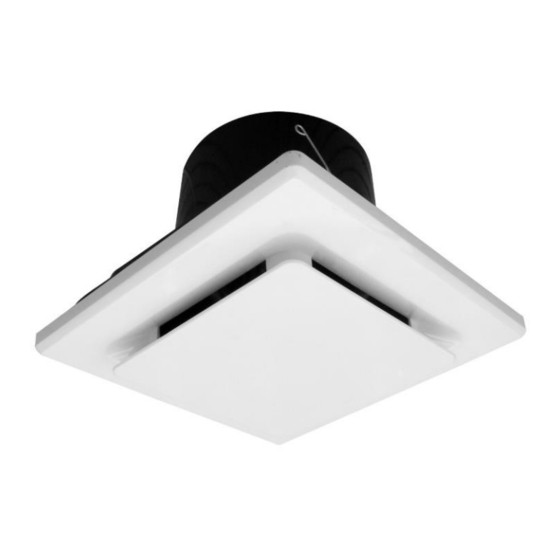

- Page 1 USE AND CARE INSTRUCTION INSTALLATION INSTRUCTION Lucci Designer Hi Flow Exhaust Fan SKU# 200265&200267 – MXSQ8PW(200mm) SKU# 200266&200268 – MXSQ10PW(250mm) PLEASE KEEP THIS INSTALLATION INSTRUCTION IN A SAFE PLACE FOR FUTURE REFERENCE...
- Page 2 Dear Customers, Thank you for selecting a LUCCI Designer Hi Flow Exhaust Fan. Please read all instructions before commencing installation. Important: This Exhaust Fan must be installed to comply with the appropriate local council building regulations, and the Australian and New Zealand wiring rules AS/NZS 3000 latest edition thereof.
- Page 3 IMPORTANT CONSIDERATIONS BEFORE INSTALLING A few minutes planning can make a big difference to the installation time and also to your satisfaction with the function of the unit. The unit should be mounted outside the shower cubicle. For the exhaust fan to work efficiently, replacement air of a volume equivalent to what is being extracted must be able to enter the room.
- Page 4 Description Note: Picture is for Illustration only. Product may vary due to continuous development. DIMENSIONS AND INSTALLATIONS DIMENSIONS SKU# SKU# Model / Dimension 200265/200267 200266/200268 (200mm inlet) (250mm inlet) 265mm 320mm 195mm 195mm 270mm 325mm 270mm 325mm Exhaust Outlet 100mm 150mm diameter Cut- out diameter...
-
Page 5: Specifications
Lucci Design warrants all of its Exhaust fans against defective workmanship and faulty materials for twelve (12) months from the date of purchase. Lucci Design undertakes, at its option, to repair or replace, free of charge, each product or part thereof on condition that;...
