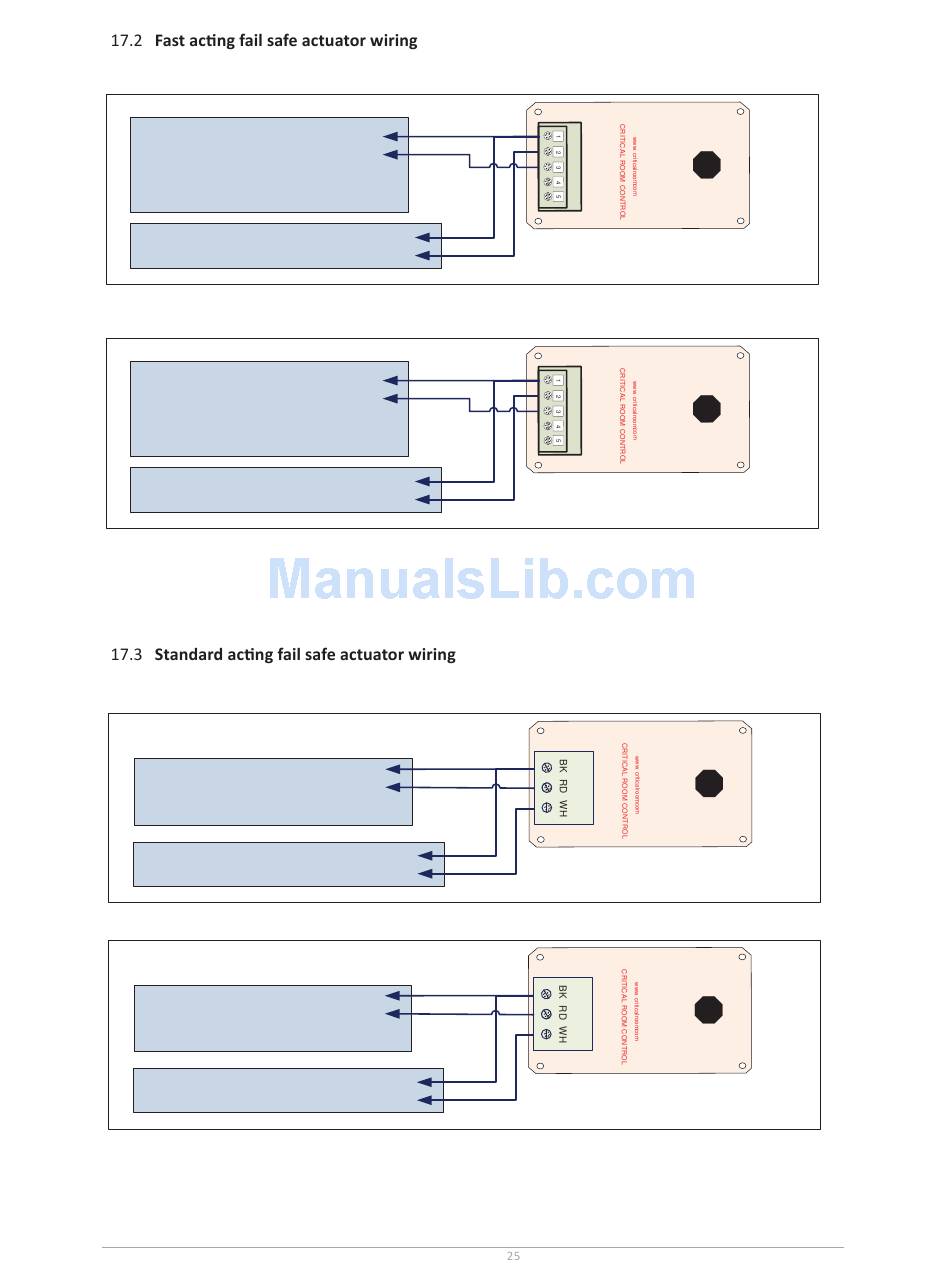

Fast Acting Fail Safe Actuator Wiring; Standard Acting Fail Safe Actuator Wiring - CRC -RPM User Manual

Room pressure monitor; room pressure controller
Hide thumbs
Table of Contents

Advertisement

RPC1/RPC2 Primary Room Pressure control connection to fast acting actuator (CRC-ACT)
CRC-RPC1/RPC2
CONTROLLER I/O
24 Volt Power Supply
****DO NOT POWER FROM CRC Controller
RPC2 Secondary Room Pressure control connection to fast acting actuator (CRC-ACT)
CRC-RPC2
CONTROLLER I/O
24 Volt Power Supply
****DO NOT POWER FROM CRC Controller
RPC1/RPC2 Primary Room Pressure control connection to standard acting actuator (CRC-ACT)
CRC-RPC1/RPC2
CONTROLLER I/O
24 Volt Power Supply
****DO NOT POWER FROM CRC Controller
RPC2 Secondary Room Pressure control connection to standard acting actuator (CRC-ACT)
CRC-RPC2
CONTROLLER I/O
24 Volt Power Supply
****DO NOT POWER FROM CRC Controller
Room Pressure Monitor and Controller - User Guide
:
AGND
AOUT3
24 VAC
24 VAC
AGND
AOUT4
24 VAC
24 VAC
:
AGND
AOUT3
24 VAC
24 VAC
AGND
AOUT4
24 VAC
24 VAC
