Optimum OP-SBSW User Instructions

Optimum OP-SBSW User Instructions

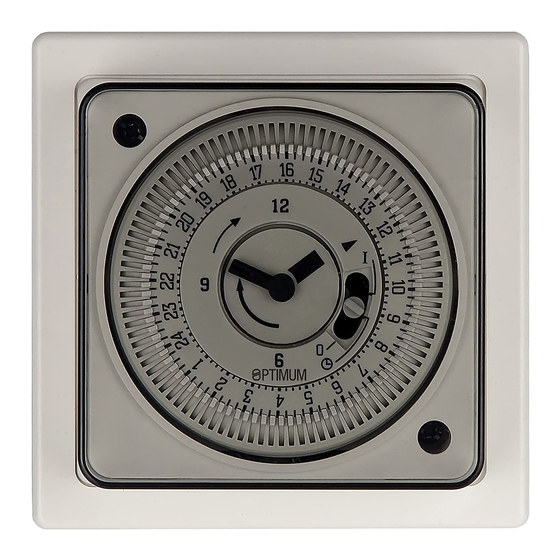

Socket-box timer for general purpose use
Hide thumbs Also See for OP-SBSW:

Advertisement

Quick Links

Earth terminal
screws
Socket box
backplate
module
cover

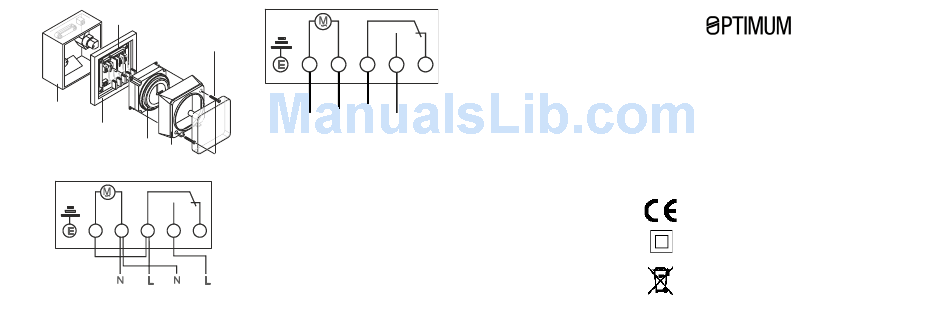

Figure 4.
1
2
3
4
5
Wiring diagram - mains switching. The link
between 3 and 5 must be fitted by the installer
1
2
3
4
5
Wiring diagram - volt free switching. The dia-
gram above shows wiring for a potential-free load.
For low voltage switching connect 230v L & N to 5
& 4 respectively, and switch circuit to 3 & 2.
4. Specification
Motor: 220-240V AC 50Hz
Temperature rating T55
Switch type: changeover
Rating: 16A resistive / 8A inductive
Not suitable for direct switching of lighting
types: Fluorescent, HID, SON, LED
Use a contactor for discharge lamps
Suitable for fitting to surface or flush mounted
socket box. For fixed wiring only.
Class II control / Protection class IP20
Complies with European Norm
EN 60730-1: 2011
Automatic Electrical Controls for
Household and similar use,
and European Directives:
LVD; EMC; RoHS
www.tfc-group.co.uk
TFC Group LLP Tonbridge TN9 1TB
Time Switch
Socket-box timer for
general purpose use
User instructions
OP-SBST 24 Hour Synchronous
Min switching 15 minutes
OP-SBSW 7 Day Synchronous
Min switching 2 hours
(product version is shown on the rating label)
1. Set the timer
2. Manual override
3. Installation guide
4. Specification
