Optimum OP-SBWF01 Installation Instructions

3,

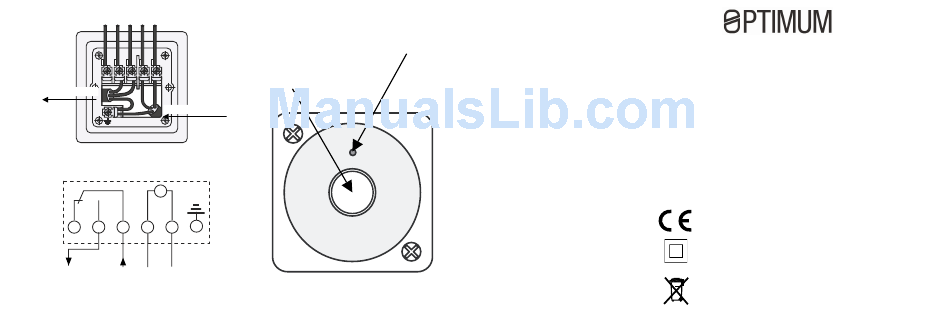

Backplate wiring: Example (Volt Free)
5 4 3 2 1
To appliance
230V AC Supply
Wiring diagram (Volt Free)
M
~
5 4 3 2 1
Live out to
Live In to
N L
appliance
timer
230V AC
mains supply
OP-SBWF01 Installation Instructions
Power / Set-up
Button
E
Specification
WiFi Signal
COMMS: WiFi ISM 2.4GHz; WLAN 802.11 b/g/n
PROG CAPACITY: 20 On/Off Programmes
Indicator
COUNTDOWN: Countdown On or Off
Output switches randomly during set
RANDOM:
period.
A repeating cycle that can be set
REPEAT:
between the ON and OFF times.
DIMENSIONS: 92 x 92 x 60
WEIGHT: 170g
POWER: 1vA @ 230V 50Hz
RESISTIVE LOAD: 16 Amperes
INDUCTIVE LOAD: 4 Amperes (cos Ø 0.6)
TEMP RATING: -10T55
ACCURACY: Internet Synchronised
MIN. SWITCHING: 1 Minute
OVERRIDE: On / Timed / Off
Class II control / Protection class IP20
Complies with European Norm
EN 61058-1:2002+A2:2008
Switches for Appliances: General
Requirements,and European Directives:
LVD; EMC; RoHS; RED
www.tfc-group.co.uk
TFC Group LLP Tonbridge TN9 1TB

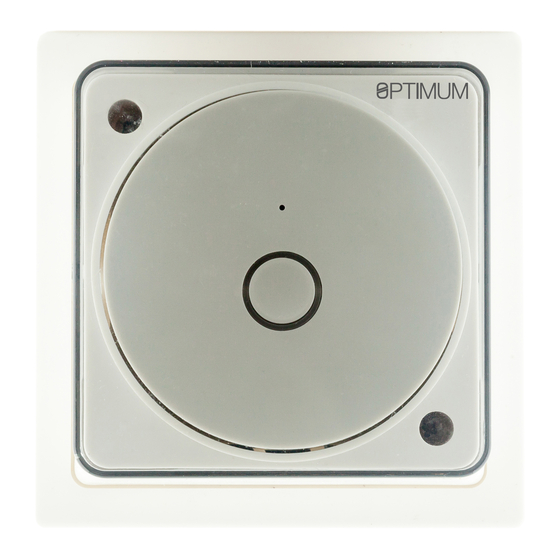

WiFi Socket Box
Time Switch
For general purpose use

Installation instructions

OP-SBWF01 WiFI Socket Box Timer
Min switching 1 Minute
1. Installation procedure
2. Backplate wiring Example
(230V AC 50-60Hz)
3. Backplate wiring Example
(Volt Free)
4. Specification
OP-SBWF01 Installation Instructions
