Monessen Hearth NBST27-F Log Placement Instructions

Log Placement Instructions

Models: NBST27-F
The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may
result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams
below, or failure to use only parts specifically approved for this log set may result in property damage or personal injury.
WARNING
• Gloves are recommended when handling logs to
prevent skin irritation from loose fibers. Logs
are fragile - handle with care.
• Use only rock wool provided with log set.
• DO NOT ADD ADDITIONAL ROCK WOOL.
Wash hands after placing rock wool. Itching may occur.

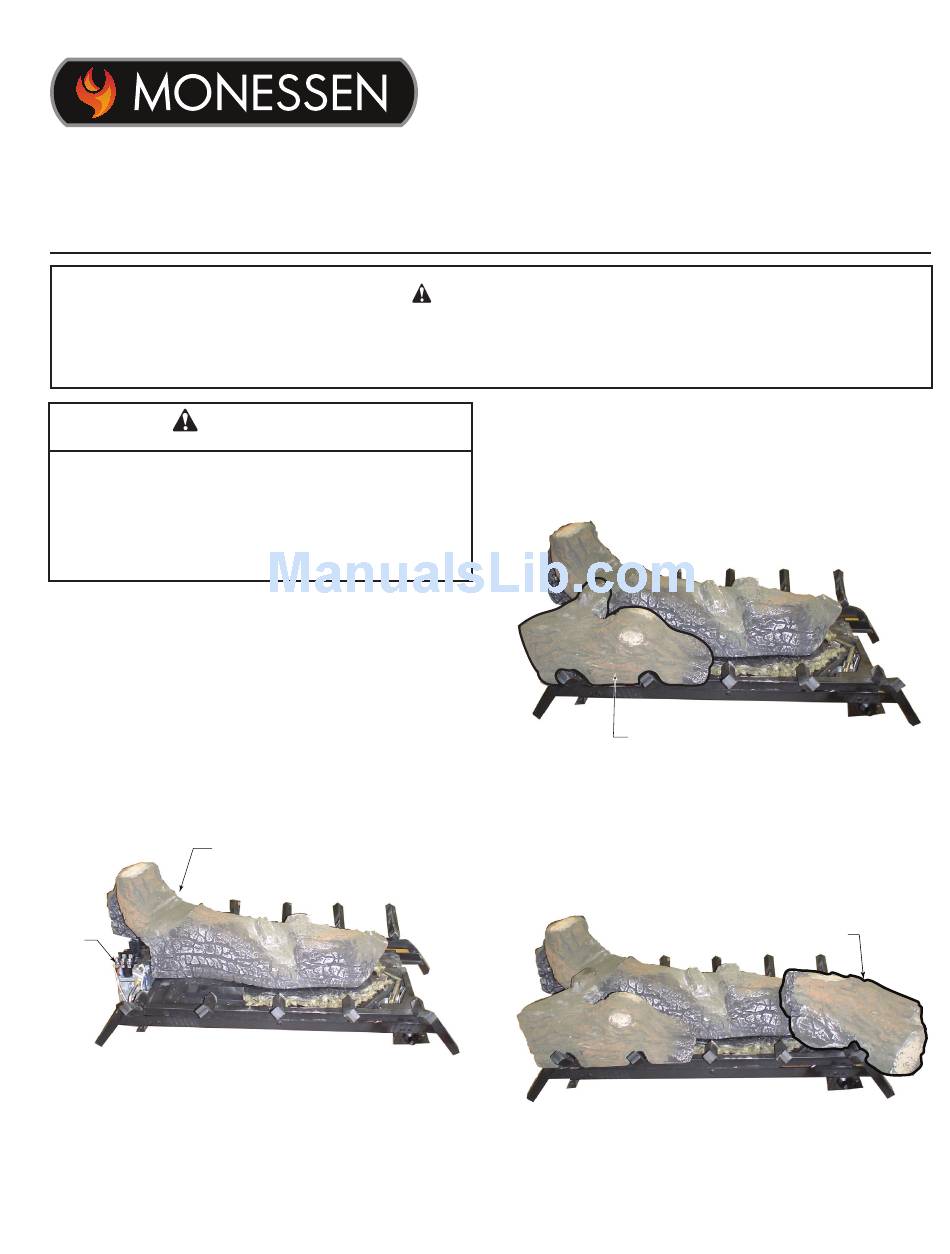

A. Log Placement
Begin on Side A, valve on left as you face the fireplace.
1. Place log #1 on burner by aligning two (2) holes on
bottom of log with two (2) pins on burner. The tallest
part of the log is on the valve side of burner. Gently
push log down until it comes in contact with burner sur-
face. Figure 5.1
Log 1
Control
Valve
Figure 1 - Place Log #1
Monessen • NBST27-F Log Placement Instructions • 4615-903 Rev. A • 08/18
LG650
NBST log 1
WARNING!
2. Place log #2 on left grate tines by aligning the 'V'
notches in the log with grate tines. The groove on the
bottom of the log should be firmly seated on the grate
bar. Figure 2
Figure 2 - Place Log #2
3. Place log #3 on farthest right grate tine by aligning the
'V' notch in log with grate tine. The groove in the bot-
tom of the log should sit on the filler bracket surround-
ing the pilot assembly. Figure 3
Figure 3 - Place Log #3
Log #2
LG651
NBST log 2
LG652
NBST Log 3
Log #3
