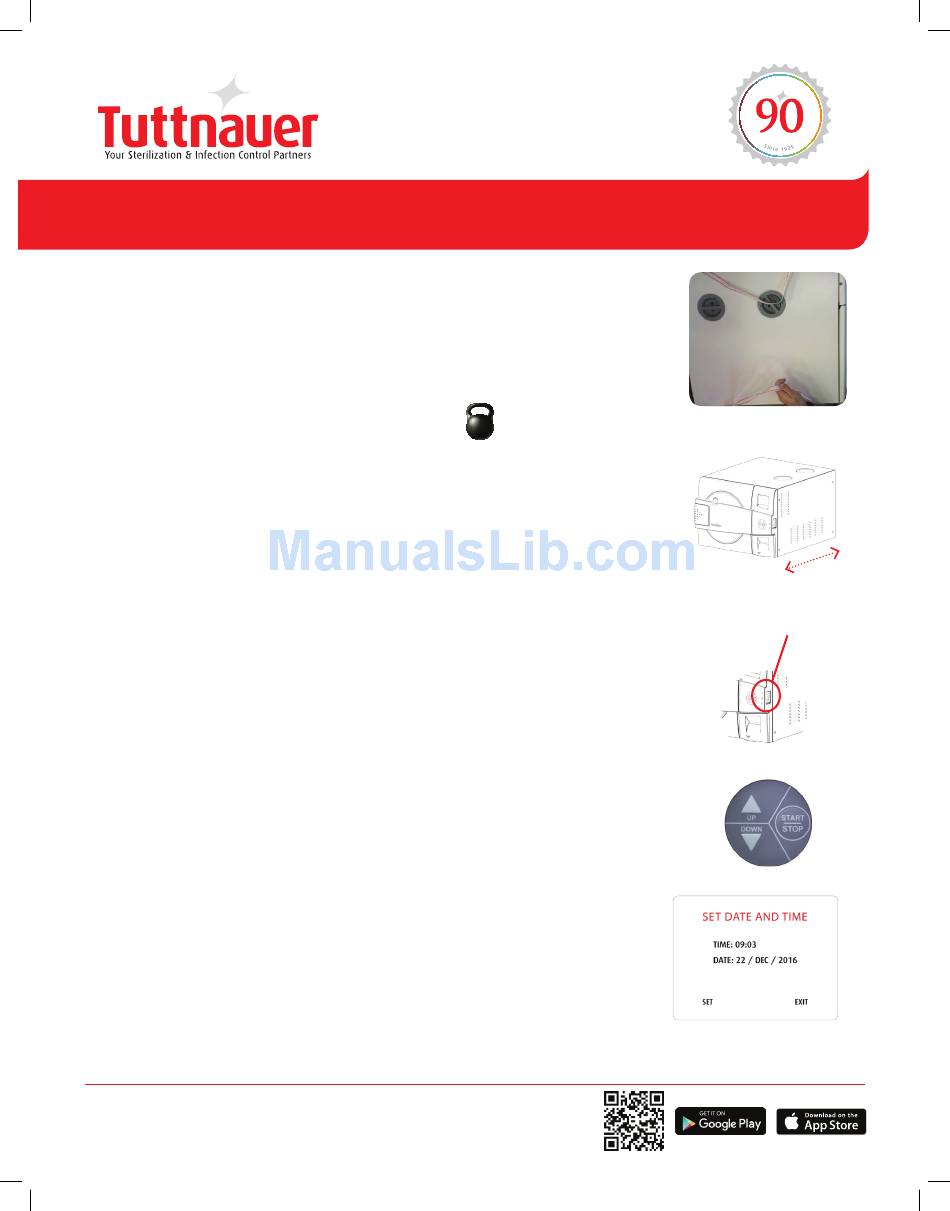

Elara11 Autoclave Quick Installation Guide
1. Examine the outer carton and autoclave for any signs of damage. Immediately notify your
dealer or Tuttnauer USA of any signs of damage.
2. To avoid injuries, lifting and carrying should be done by two people.
Lifting straps have been installed for your convenience. Lifting straps are for one time
use only and should be removed and discarded after initial set up.
3. Place the sterilizer on a rigid level surface.
The counter top or stand must be able to support 275lbs
4. The minimum depth of the counter top needs to be 24 inches.
5. It is mandatory to leave a minimum of 2" clearance between the back of the Elara11 and
the wall. If located in a cabinet, the rear panel of the cabinet must be removed for proper
air circulation. Failure to provide the needed clearance will result in failed cycles.
6. Side clearances should be a minimum of 2".
7. Make sure all the feet are on the autoclave and none of them have been lost.
8. Connect the power cord to the socket on the rear of the autoclave; then plug it into the
supply outlet.
a. This unit requires a 230 volt 1 or 2 phase 15A supply.
b. The acceptable operating voltage range is 220 to 235 volts.
c. The installation of a Buck/Boost transformer (0.5KVA) may be required to meet the
acceptable operating voltage.
d. The supply outlet must be a properly grounded outlet.
e. It is mandatory to have installed an earth leakage relay (GFCI outlet or GFCI circuit
breaker).
f. It is recommended that the device be on a dedicated electrical circuit.
9. The Elara11 is equipped with an electronic door lock. The door will be remain locked if:
a. The power is off
b. The Elara11 is running a cycle and the cycle has not completed.
c. An error occurs (this is cleared by pressing the STOP key)
10. Turn on the power switch, located on the right side of the unit. A message "Set Date and
Time" will appear on the screen. (On initial set up, the date and time MUST be set to turn
on the internal clock in the unit. Failure to do this will result in a "Time Error") To set the
date and time follow these steps:
Use the UP and DOWN keys to change the blinking digit.
Use the START/STOP key to move to the next digit.
The time is displayed in the upper row in the form "HH:MM".
The time is in a 24 hour format (i.e. 2:30PM = 14:30)
The date is displayed in the lower row in the form "DD/MMM/YYYY" (27/JUN/2012)
Tuttnauer USA., Co., Ltd.
25 Power Drive, Hauppauge, NY 11788. Tel: +800 624 5836, +631 737 4850 Fax: +631 737 0720
E-mail: info@tuttnauerUSA.com, www.tuttnauerUSA.com
lbs
Minimum
24"depth
counter top
required
OVER
YEARS
Power switch
